TX300 S6 Options Guide 77
Expansion cards and BBU Installing expansion cards
Ê Open the server as described in the chapter "Preparation" on page 27 .

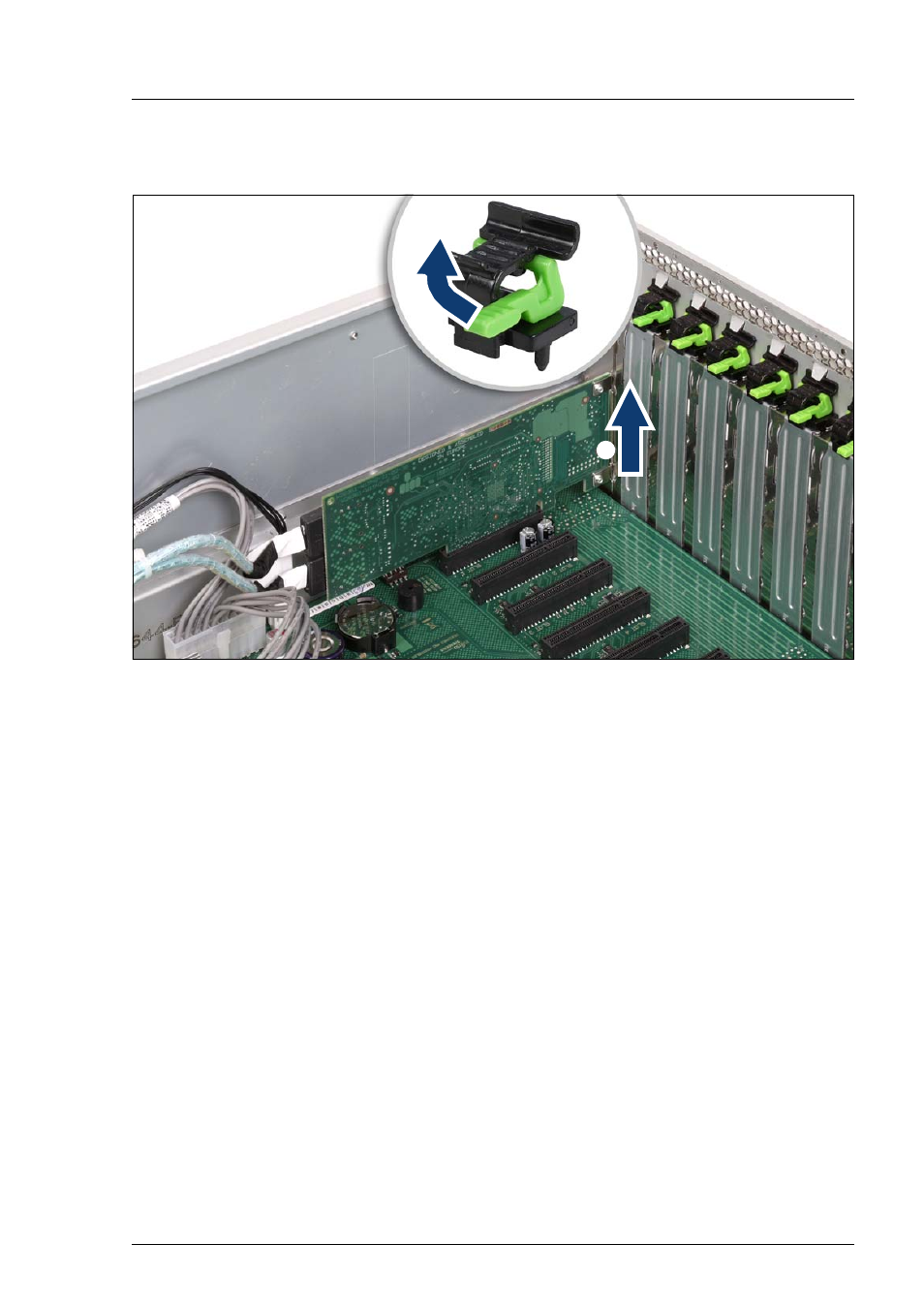

Figure 49: Removing the slot cover
Ê Open the slot locking bar in the direction of the arrow (1).
Ê Remove the slot locking bar.
Ê Remove the slot cover (2).
V
CAUTION!
Keep the slot cover for further use. If the expansion card is removed
again and not replaced with a new one, the slot cover has to be
reinstalled to comply with applicable EMC regulations and satisfy
cooling requirements and fire protection measures.
Ê Unpack the new expansion card, and make the desired settings. You should
read the accompanying documentation supplied with the expansion card
beforehand.
