Accessible drives and LSD/LSP Multibay 1

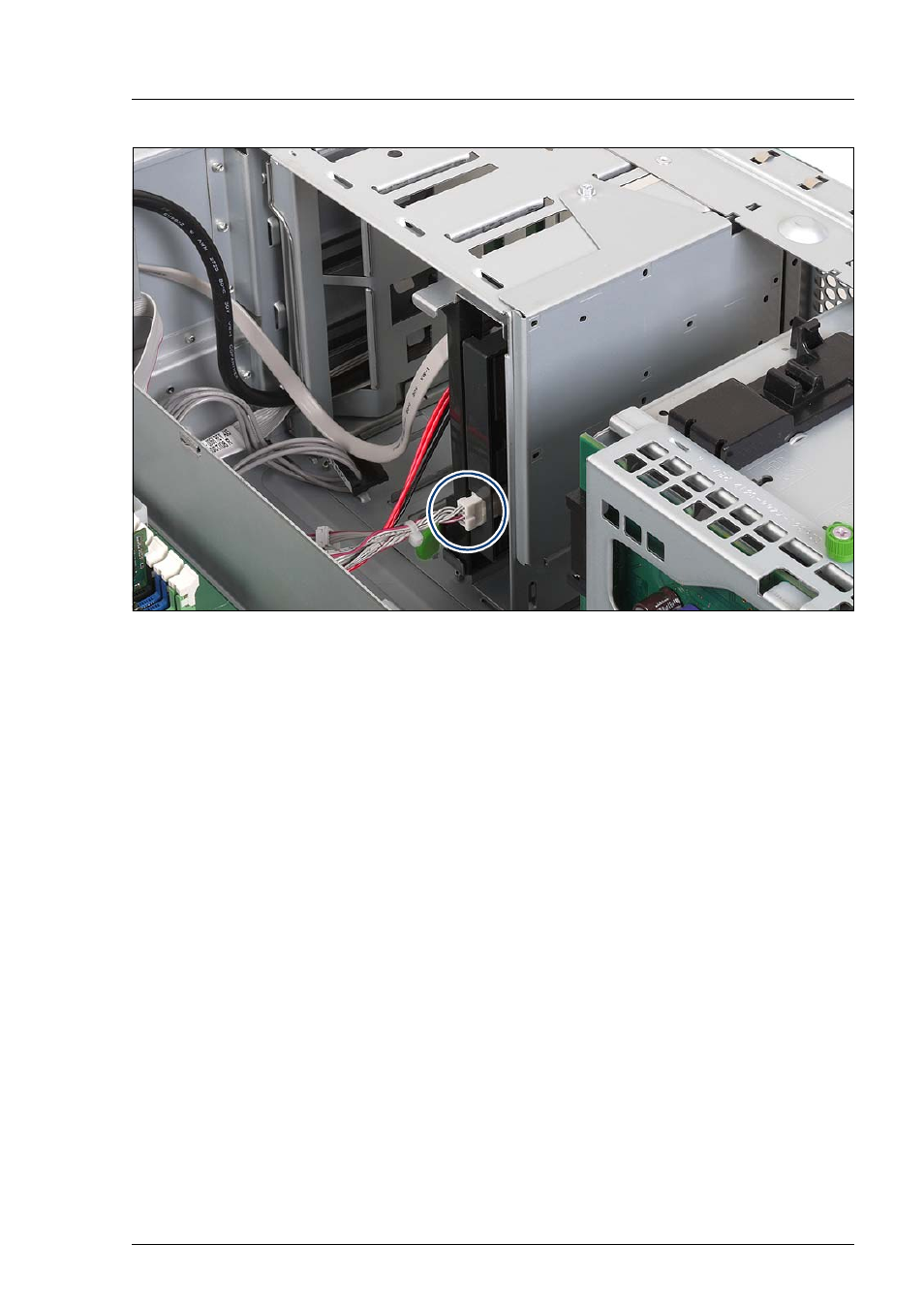

Figure 41: Connecting the I
2
C cable to the LSP/LSD
Ê Remove the cable tie of the I
2
C cable near the CON.4 connector.
Ê Connect the I
2
C cable CON.4 connector to the LSP/LSD (see the cabling
plans in the Appendix).
Ê Attach the front cover or the rack front cover as described in the section
"Attaching the front cover" on page 108 or in the section "Attaching the rack
front cover" on page 111 .
Ê Close the server, connect it to the power outlet, and switch it on as described
in the
chapter "Completion" on page 105 .
