Accessible drives and LSD/LSP HDD extension box
7.4.1 Multibay 2
Multibay 2 contains one bay for a LSP or LSD, one bay for a DVD drive, and two
bays for 3.5-inch HDD modules.

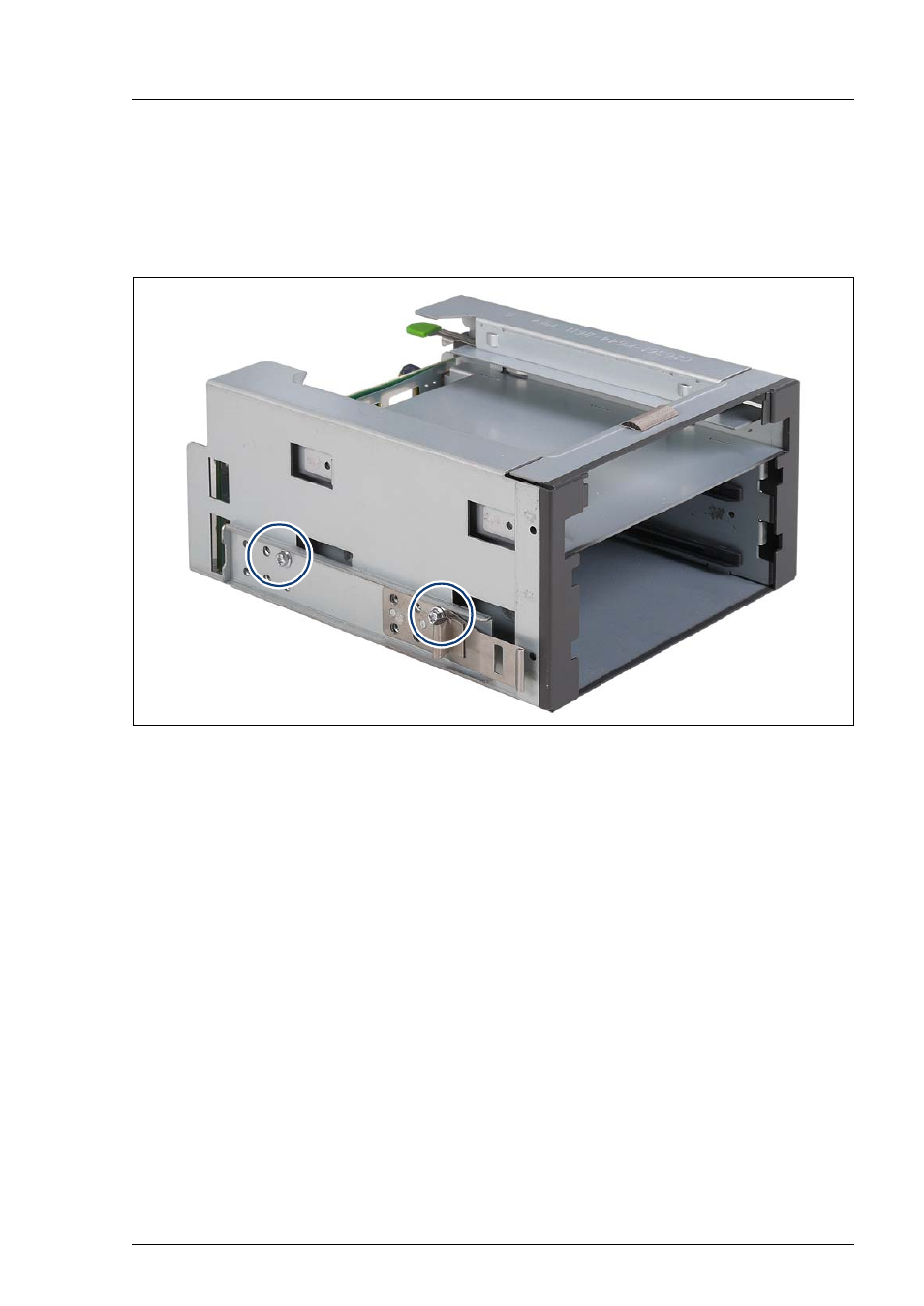

Figure 42: Attaching EasyClick rails to Multibay 2
Ê Screw the EasyClick rails onto either side using two M3 x 4.5 mm screws.
Use the first hole in each upper row of holes as shown in the figure.
Ê Install a DVD drive, if required.
The procedure is similar to that of Multibay 1 (see section "Installing a
slimline DVD drive" on page 61 ).
Ê Install a LSP or LSD, if required.
The procedure is similar to that of Multibay 1 (see section "Installing LSP or
LSD" on page 59 ).
I
Note that in this case the LSP/LSD module is inserted in Multibay 2
from the front.
