110 Options Guide TX300 S6
Floorstand model Completion
11.2.3 Closing the server
I
The left side cover closes easily when the server is in the horizontal
position.
Ê Lay the server on its right side.
Ask a second person to help you do this.The server can weigh up to 25-40
kg depending on its configuration.
Ensure that the feet project over the edge of the table.

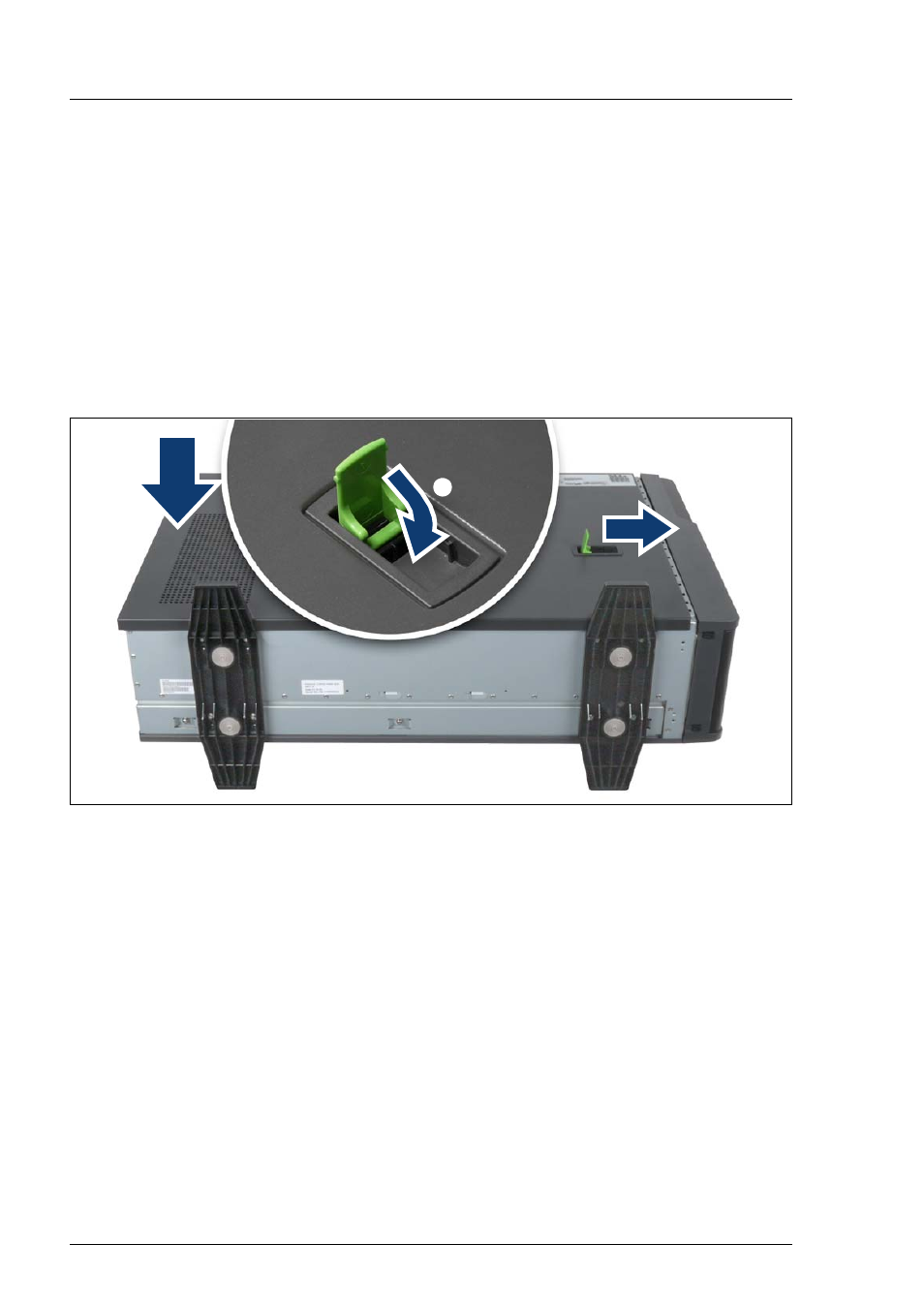

Figure 84: Closing the server
Ê Pull the locking lever as far as it will go and insert the side cover (1).
Ê Push the side cover against the housing and at the same time push the
locking lever shut (2).
This pushes the side cover forward and locks it in place.
Ê Insert the key.
Ê Lock the server.
Ê Connect all power plugs to the power outlets.
Ê Press the On/Off button to start up the server.
