HDD extension box Accessible drives and LSD/LSP
Ê Close the server, connect it to the power outlet, and switch it on as described
in the
chapter "Completion" on page 105 .
7.4.2 2.5-inch HDD extension box
The HDD extension box for 2.5-inch HDD modules contains eight bays for 2.5-
inch HDD modules. It requires a redundant power supply (description see the
Operating Manual) and an additional SAS/SATA RAID controller (see
chapter
"Expansion cards and BBU" on page 75 ).

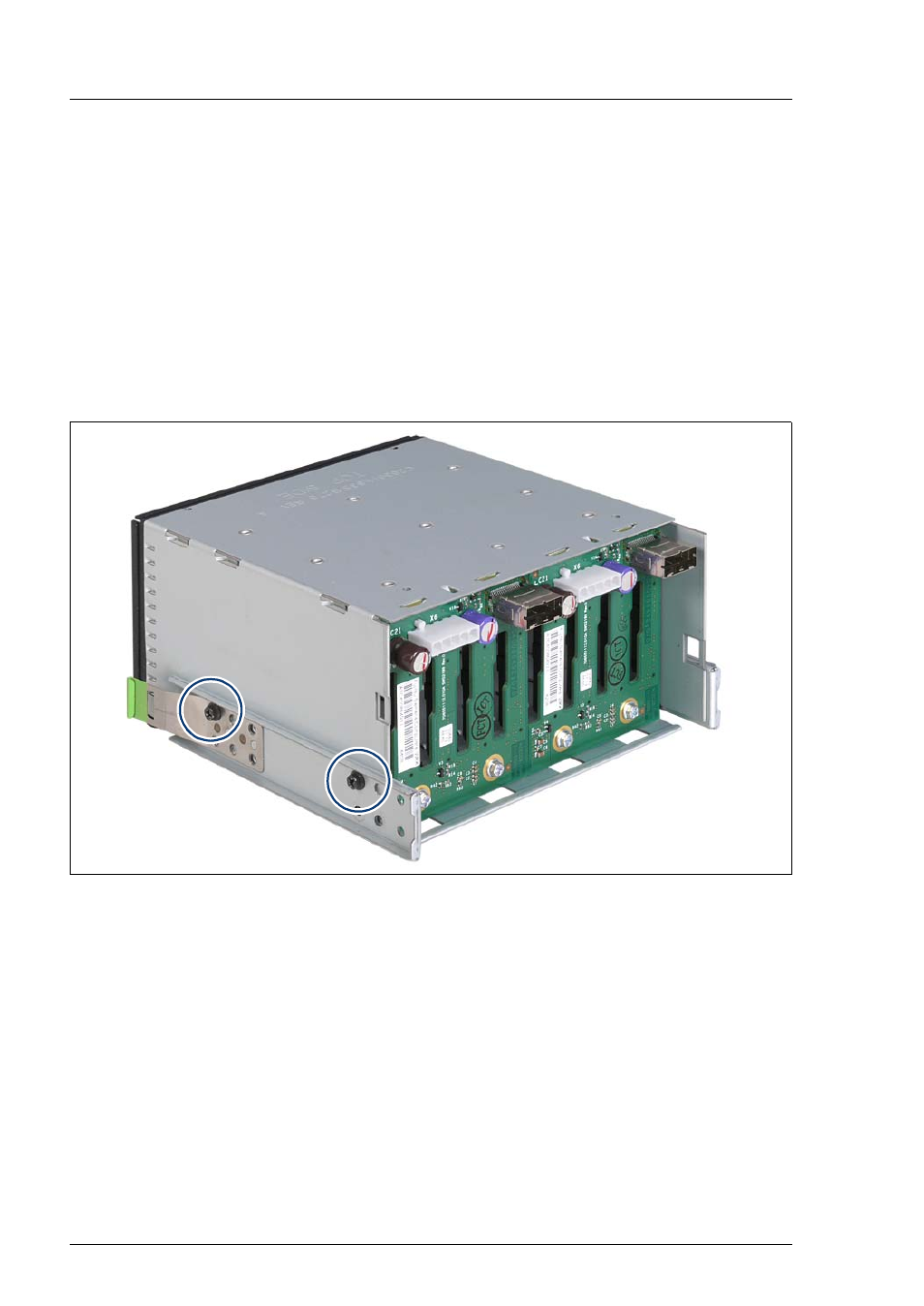

Figure 45: Attaching EasyClick rails to 2.5-inch HDD extension box
Ê Screw the EasyClick rails onto either side using two M3 x 3.5 mm screws.
Use the first hole (seen from front side) in each upper row of holes as shown
in the figure.
V
CAUTION!
Longer M3 screws may damage the drive!
The M3 x 4.5 mm screws of a dummy cover are too long and must not be
used.
