74 Options Guide TX300 S6
HDD extension box Accessible drives and LSD/LSP

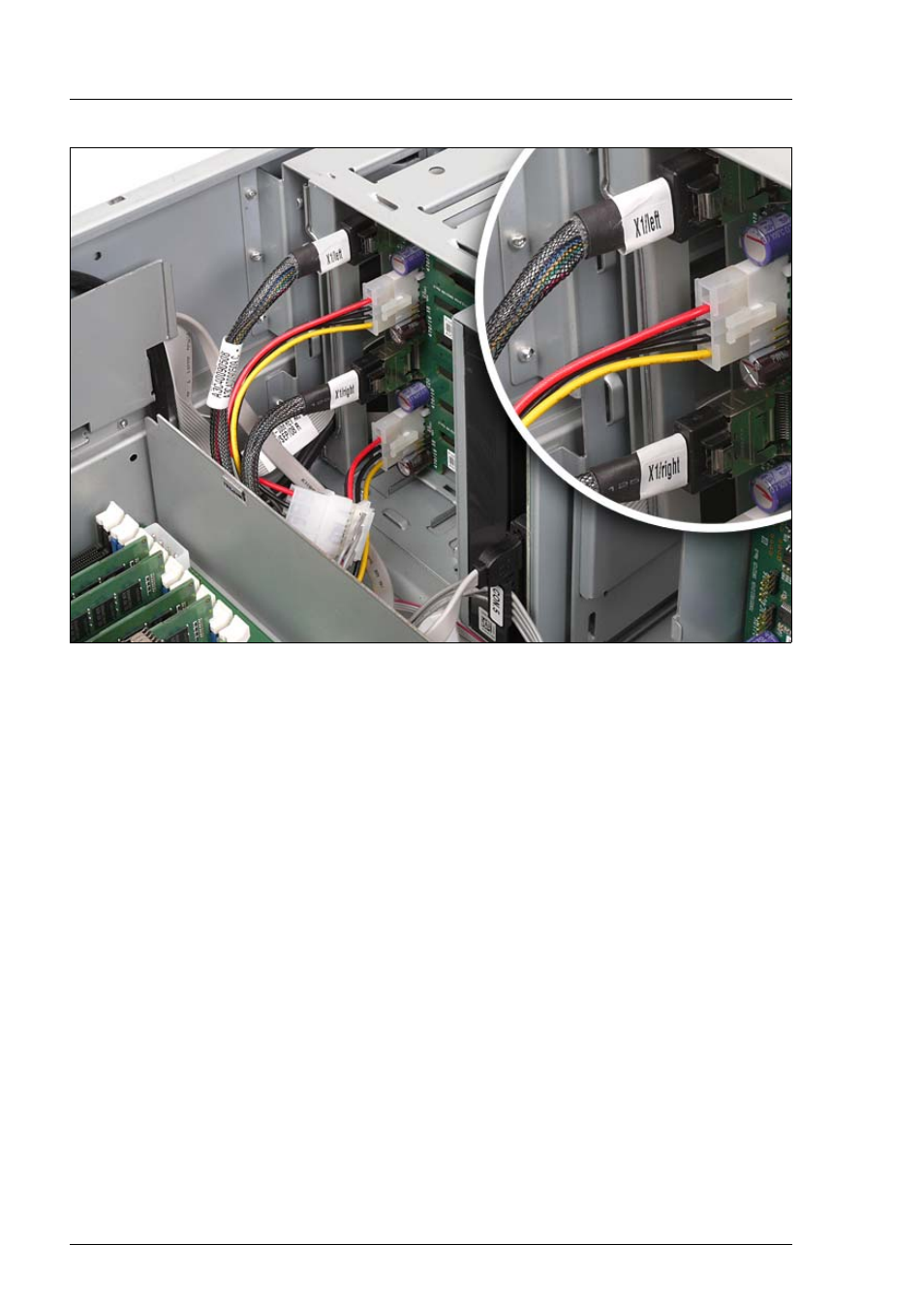

Figure 47: Cabling 2.5-inch HDD extension box
Ê Connect the PS adapter cables to the CON.2 and CON.4 connectors of the
power cable.
Ê Connect the SAS cables included in the conversion kit to the SAS
connectors on the HDD backplanes (see circle).
Observe the labels on the connectors (X1 right or X1 left).
Ê Route the SAS cables in the cable clamps and connect them to the
connectors of an additional SAS/SATA RAID controller (see the cabling
plans in the Appendix).
Ê Attach the front cover or the rack front cover as described in the section
"Attaching the front cover" on page 108 or in the section "Attaching the rack
front cover" on page 111 .
Ê Close the server, connect it to the power outlet, and switch it on as described
in the
chapter "Completion" on page 105 .
