TX300 S6 Options Guide 59
Accessible drives and LSD/LSP Multibay 1
7.3 Multibay 1
Ê Open the server and remove the the front cover or the rack front cover as
described in the
chapter "Preparation" on page 27 .
Ê Remove the dummy cover from the bay 3 (see section "Equipping of the
bays" on page 54 and section "Removing the dummy cover" on page 56 ).
Ê Detach the EasyClick rails from the dummy cover by removing the four
screws on each side (see
figure 27 on page 57 ).
I
Note that there are two M3 x 4,5mm screws with M3 thread and two
6-32 x 4,8mm screws with UNC thread on each side.
7.3.1 Equipping Multibay 1
Multibay 1 can be equipped with a ServerView Local Service Panel (LSP) or a
ServerView Local Service Display (LSD) and a DVD drive.
7.3.1.1 Installing LSP or LSD

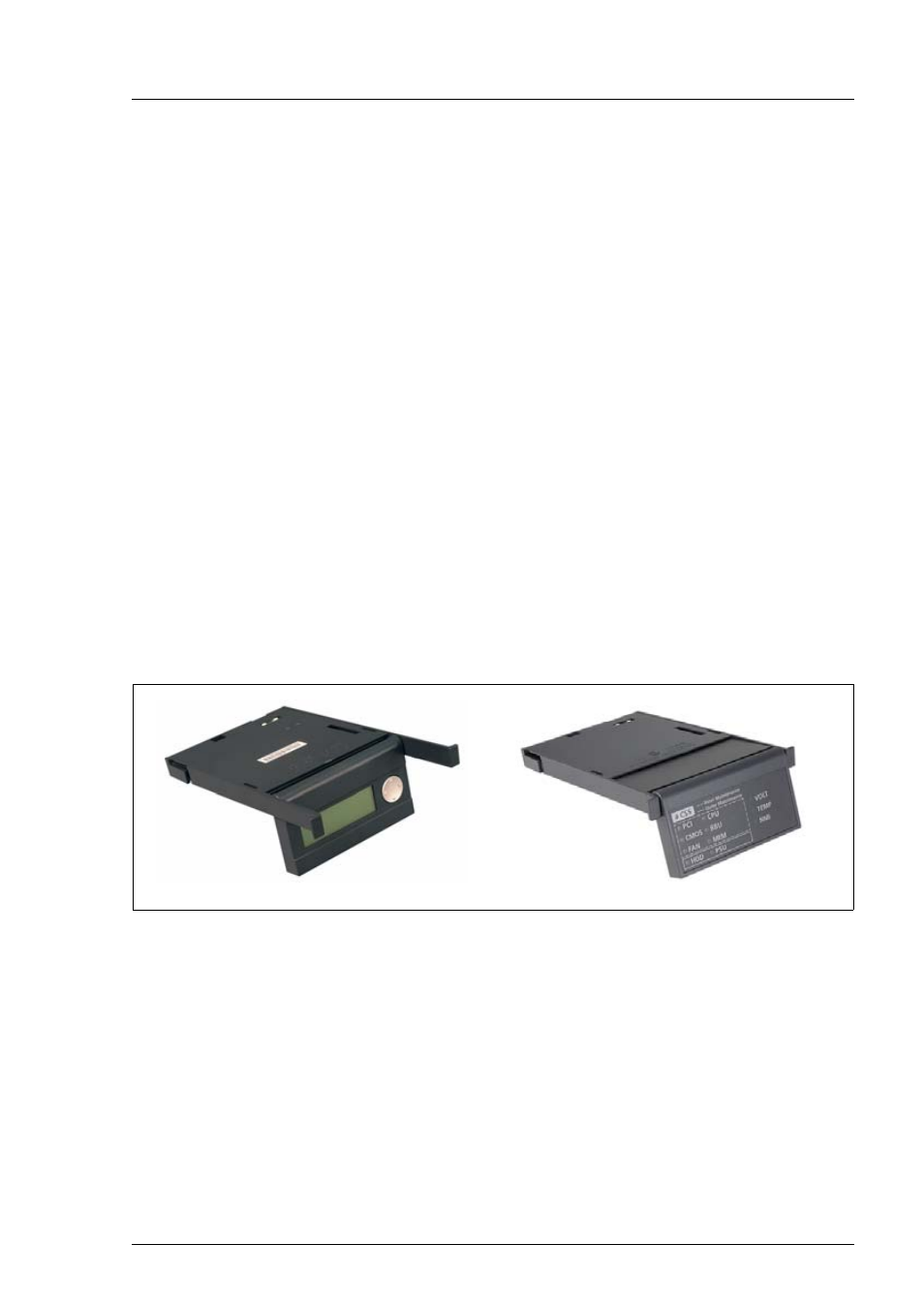

Figure 29: ServerView Local Service Display (LSD) and ServerView Local Service Panel (LSP)
