11.2.2 Attaching the front cover
Reattach the front cover after installing/removing accessible drives.

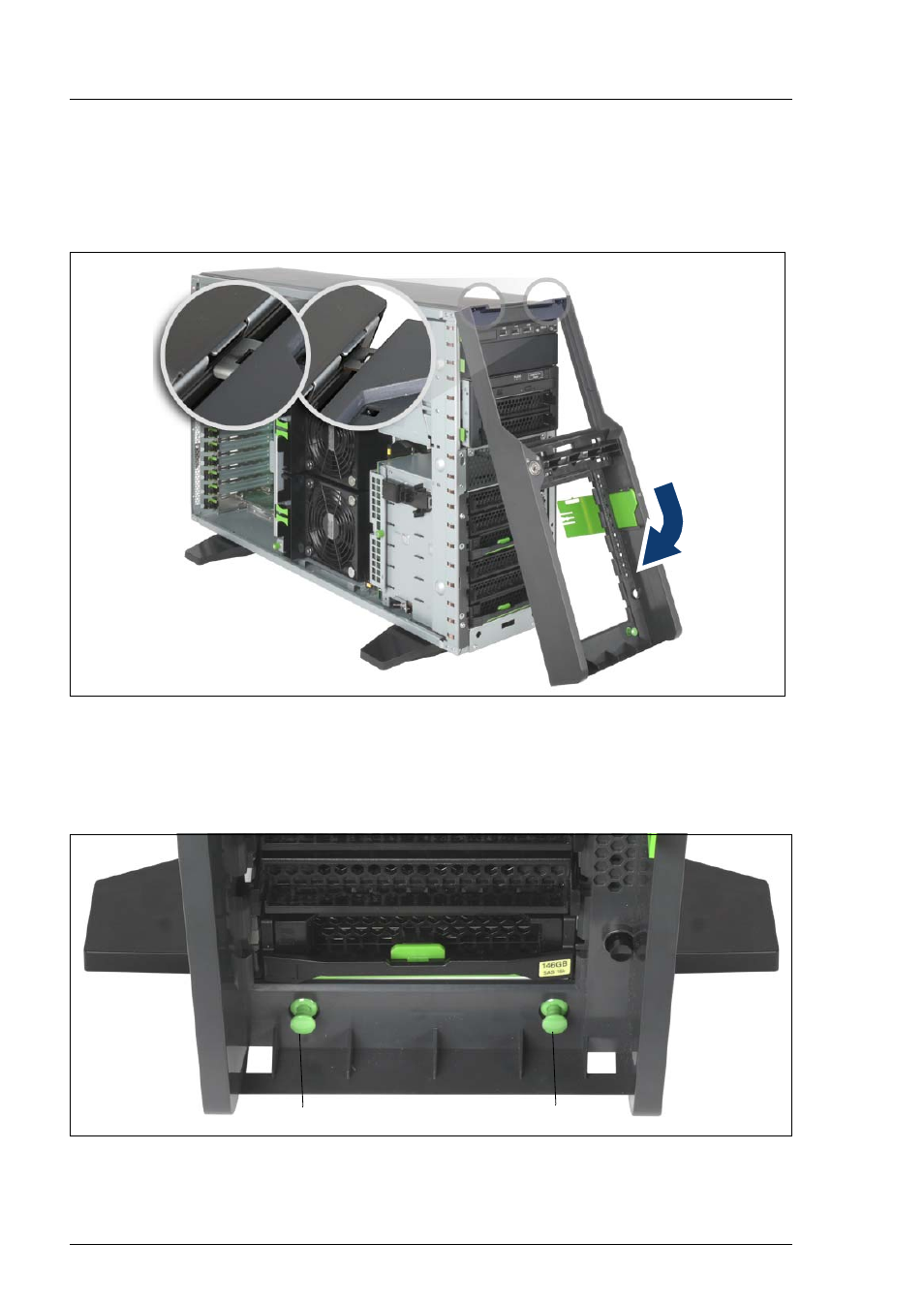

Figure 81: Attaching the front cover
Ê
Hook the front cover in place at the top (see circles).
Ê
Press the front cover against the housing in the direction of the arrow.
Figure 82: Locking buttons engaging
Ê
Press the two green locking buttons (1) until they engage.
ቢ
ቢ
