Installing 2.5 inch hdd extension box – FUJITSU TX300 User Manual
Page 73
TX300 S6
Options Guide
73
Accessible drives and LSD/LSP
HDD extension box
7.4.2.1
Installing 2.5 inch HDD extension box

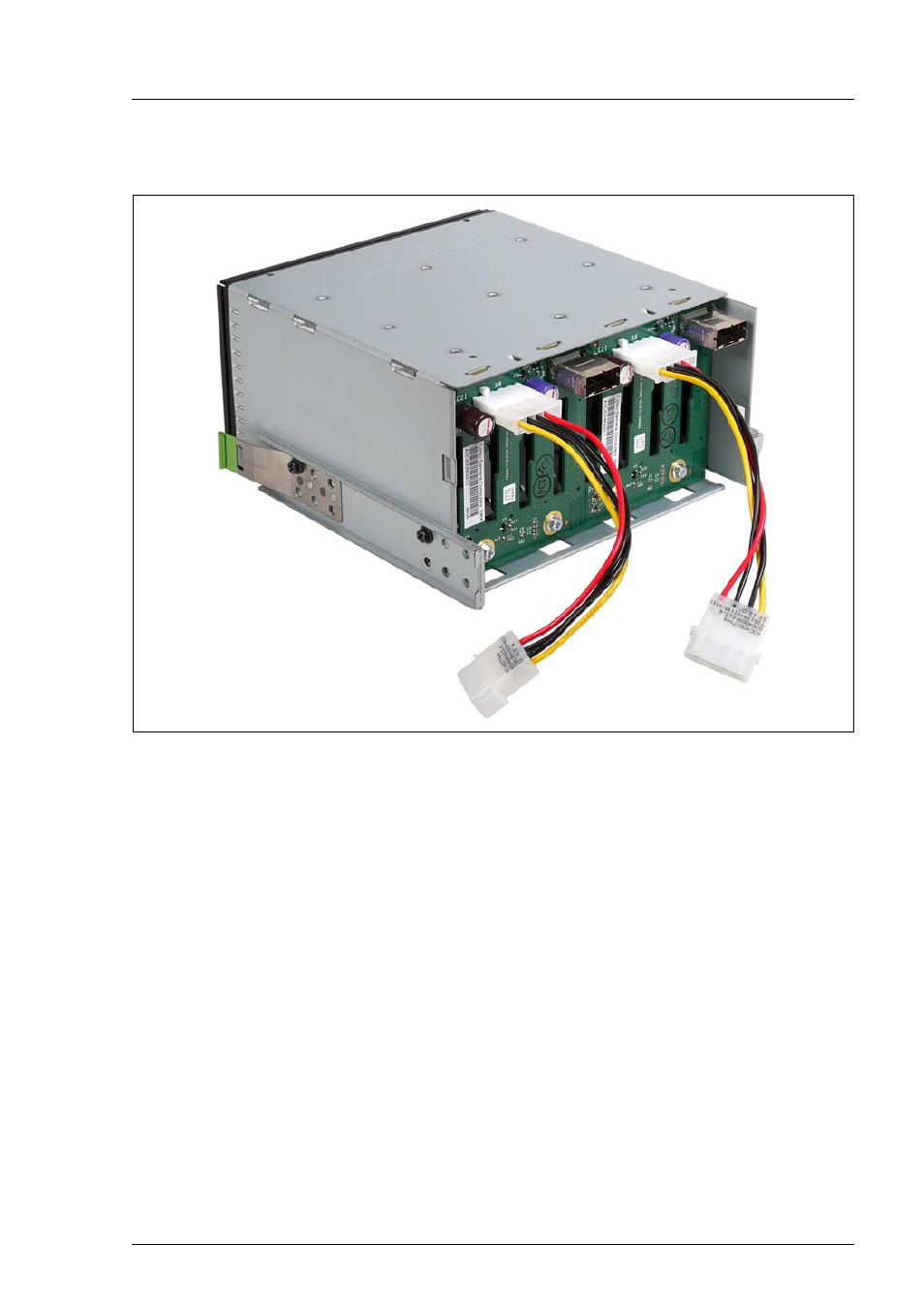

Figure 46: Connecting PS adapter cable to HDD backplanes
Ê
Connect the PS adapter cables to the two HDD backplanes at the rear side
of the HDD extension box (X6 connectors).
Ê
Push the HDD extension box fully into bay 1 and bay 2 until the EasyClick
rails lock in place.
Ensure that no damage is caused to the cables.
