TX300 S6 Options Guide 57
Accessible drives and LSD/LSP Accessible 5.25-inch drive

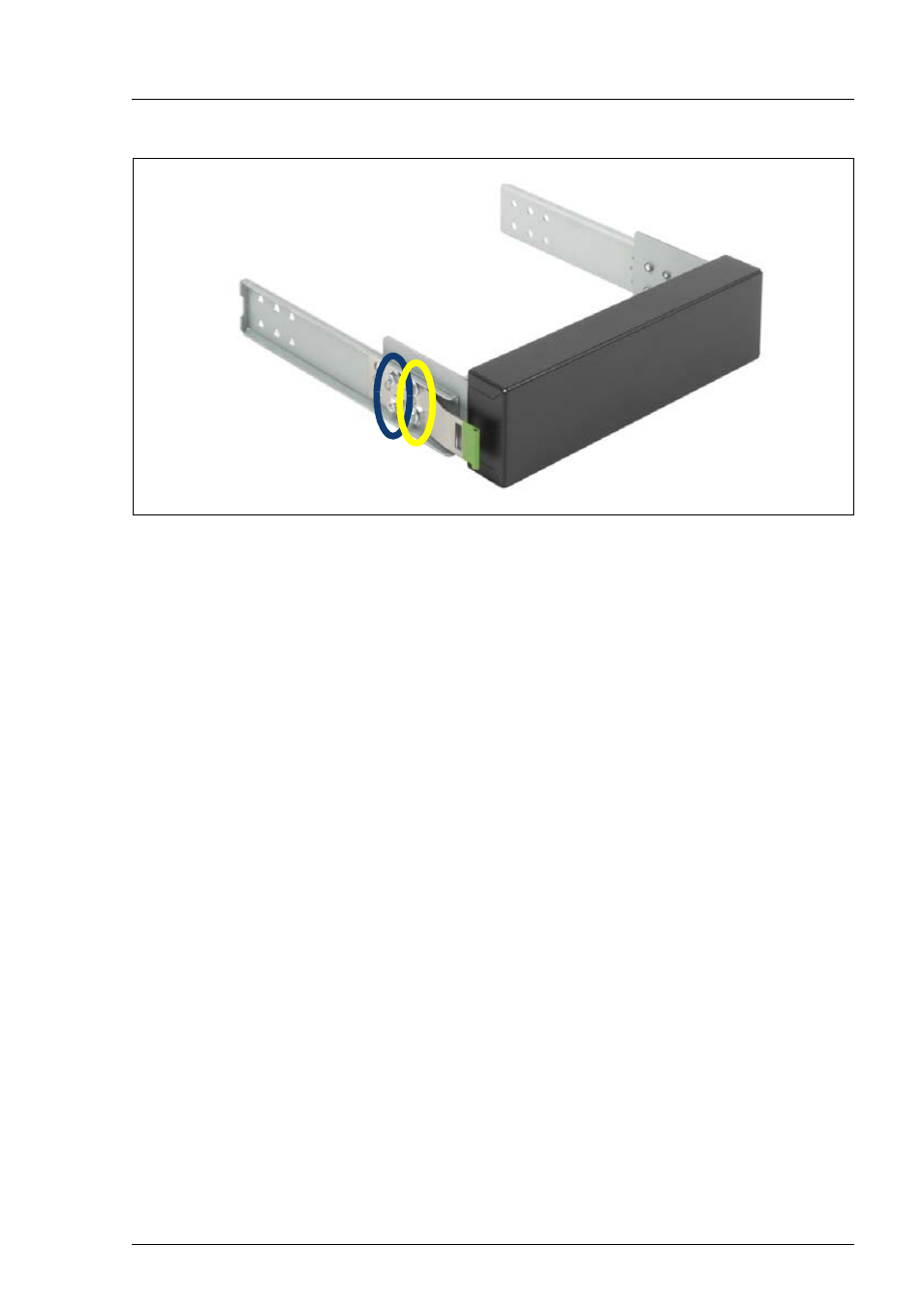

Figure 27: Detaching the EasyClick rails from the dummy cover
Ê Detach the EasyClick rails from the dummy cover by removing the four
screws on each side.
I
Note that there are two M3 x 4.5mm screws with M3 thread (yellow
ellipse) and two 6-32 x 4.8mm screws with UNC thread (blue ellipse)
on each side.
V
CAUTION!
Keep the dummy cover for future use. If you remove the accessible drive
again and do not replace it with a new one, the dummy cover must be
reinstalled to comply with EMC regulations and to satisfy cooling
requirements and fire protection measures.
