Installing expansion cards Expansion cards and BBU

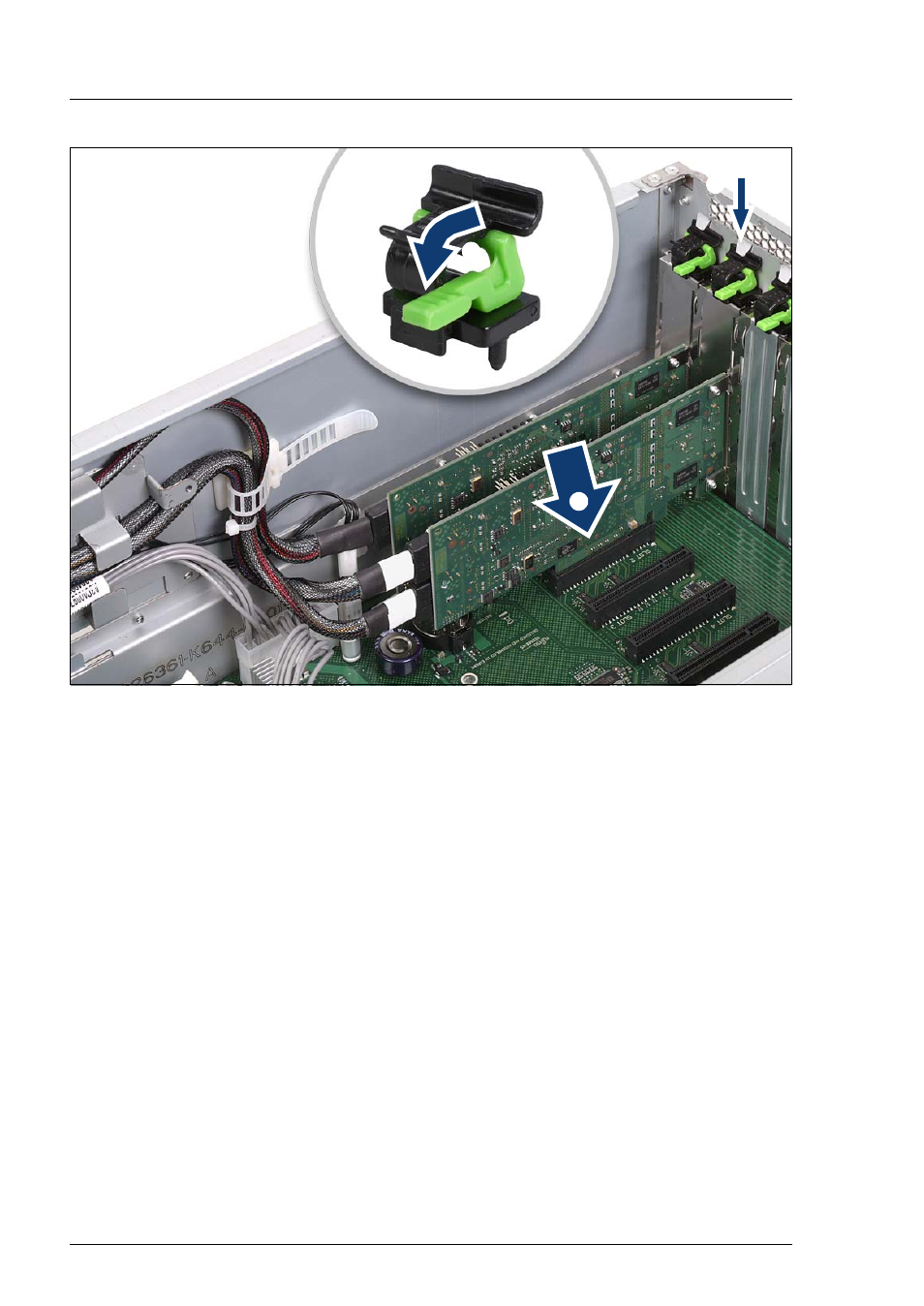

Figure 50: Installing an expansion card
Ê Carefully press the new expansion card into the relevant slot on the system
board (1).
Ê Fit the clip onto the slot cover so that the pin fits into the hole.
Ê Push the clip under the metal nose (2) until it clicks into place.
Ê Swing the lever (3) downward into its locking position.
Ê If required, connect the cables to the expansion card and other components.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the
chapter "Completion" on page 105 .
