40 Options Guide TX300 S6
Expanding the main memory Main memory
5.2 Expanding the main memory
Ê Open the server and remove the fan carrier as described in the chapter
"Preparation" on page 27 .

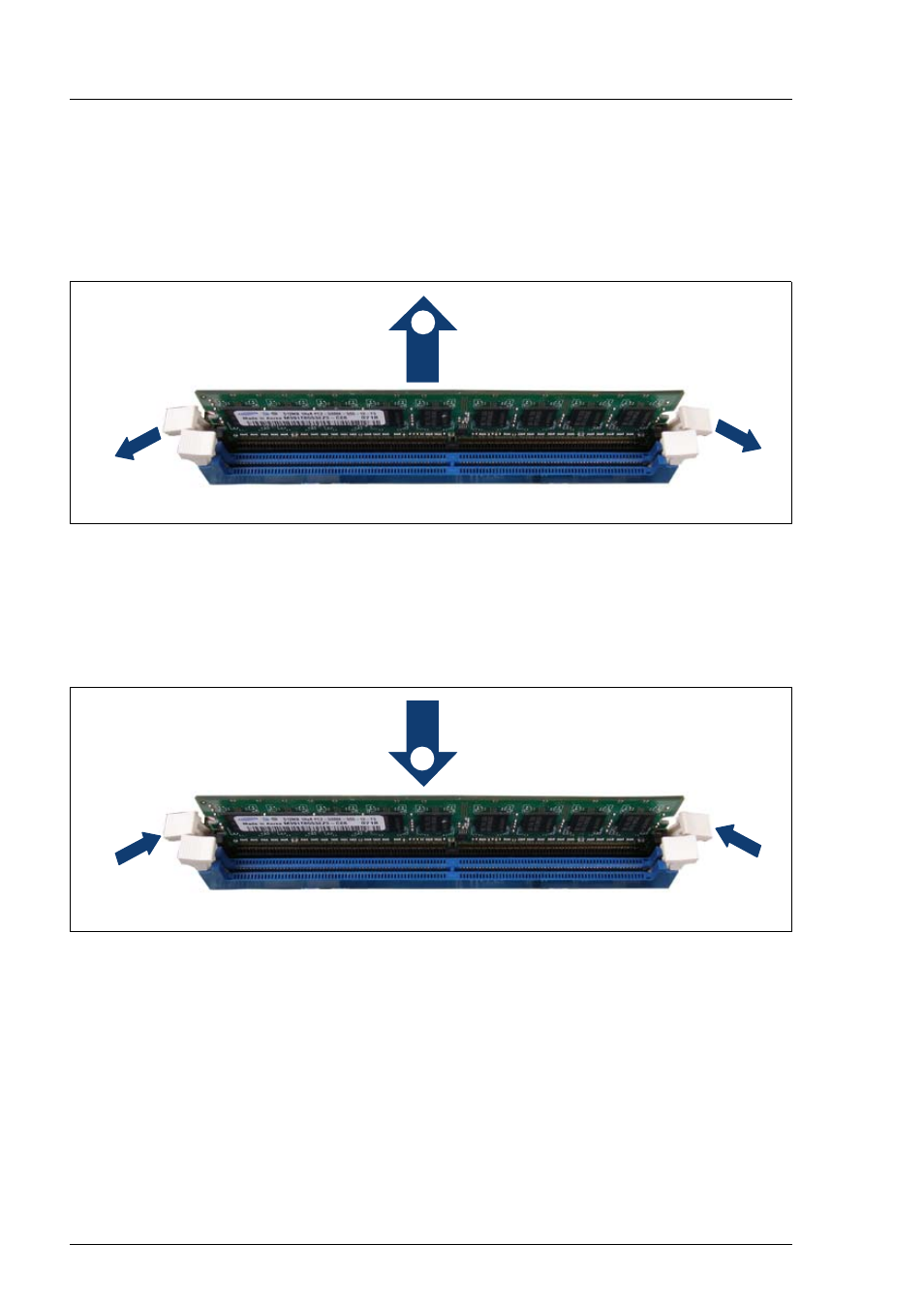

Figure 13: Removing a memory module
Ê Press the securing clips on both sides of the memory slot concerned
outward (1).
Ê If the slot was equipped: pull the memory module out of the slot (2).
Figure 14: Installing a memory module
Ê Carefully press the memory module into the slot (1) until the securing clips
on both sides of it engage (2).
Ê Reinstall the fan carrier as described in the section "Installing the fan carrier"
on page 105 .
Ê Close the server, connect it to the power outlet, and switch it on as described
in the
chapter "Completion" on page 105 .
/
/
