TX300 S6 Options Guide 63
Accessible drives and LSD/LSP Multibay 1

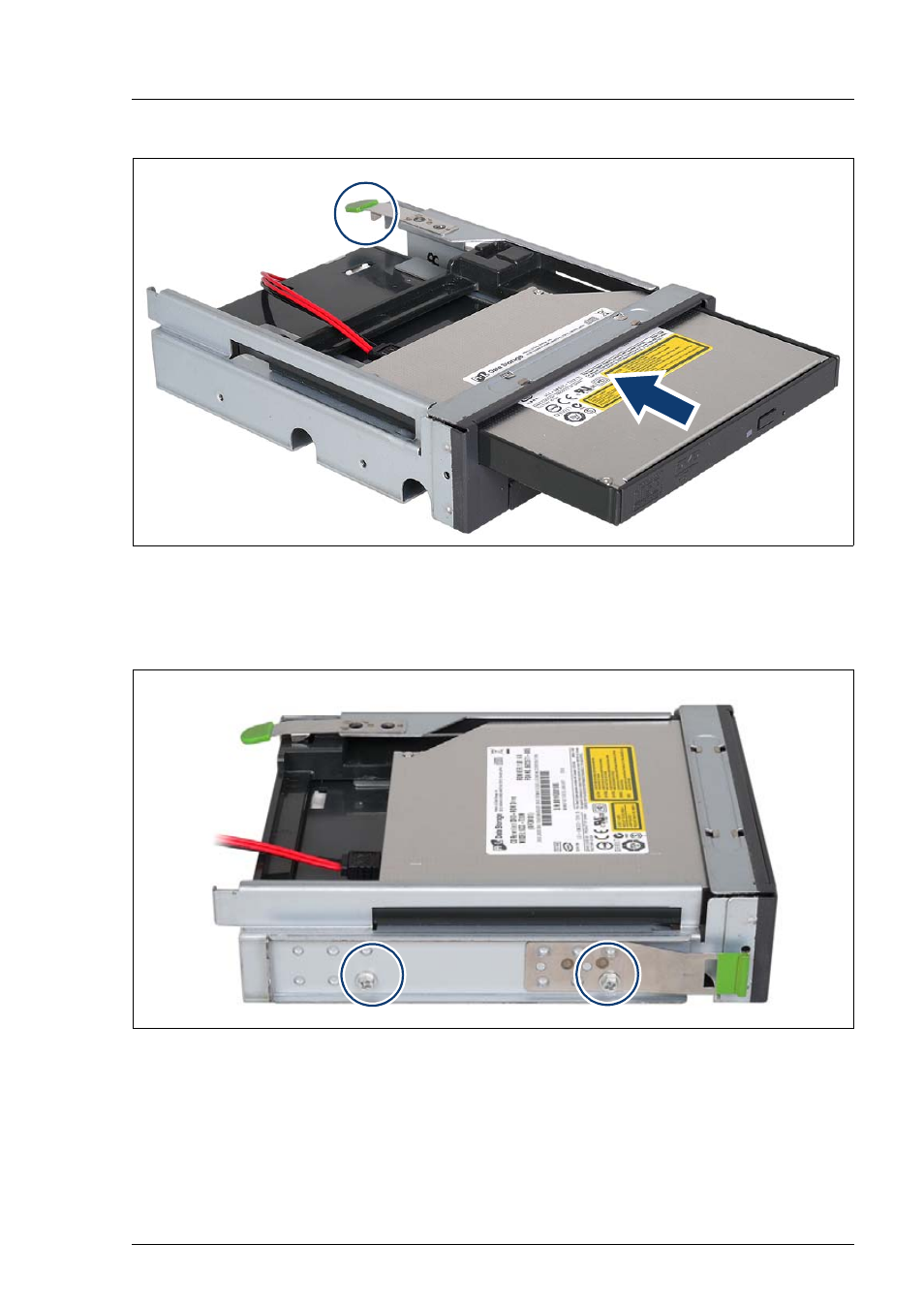

Figure 35: Inserting the DVD drive module in the Multibay 1
Ê From the front, insert the DVD drive module into Multibay 1 until it engages
(see locking latch in circle).
Figure 36: Attaching EasyClick rails to Multibay 1
Ê Screw the EasyClick rails onto either side using two M3 x 4.5 mm screws.
Use the first hole in each lower row of holes as shown in the figure.
