TX300 S6

Options Guide

111

Completion

Rack model

11.3

Rack model

11.3.1 Attaching the rack front cover

Reattach the rack front cover after implementing the following routines:

Installing/removing accessible drives

Conversion from a floorstand model to a rack model

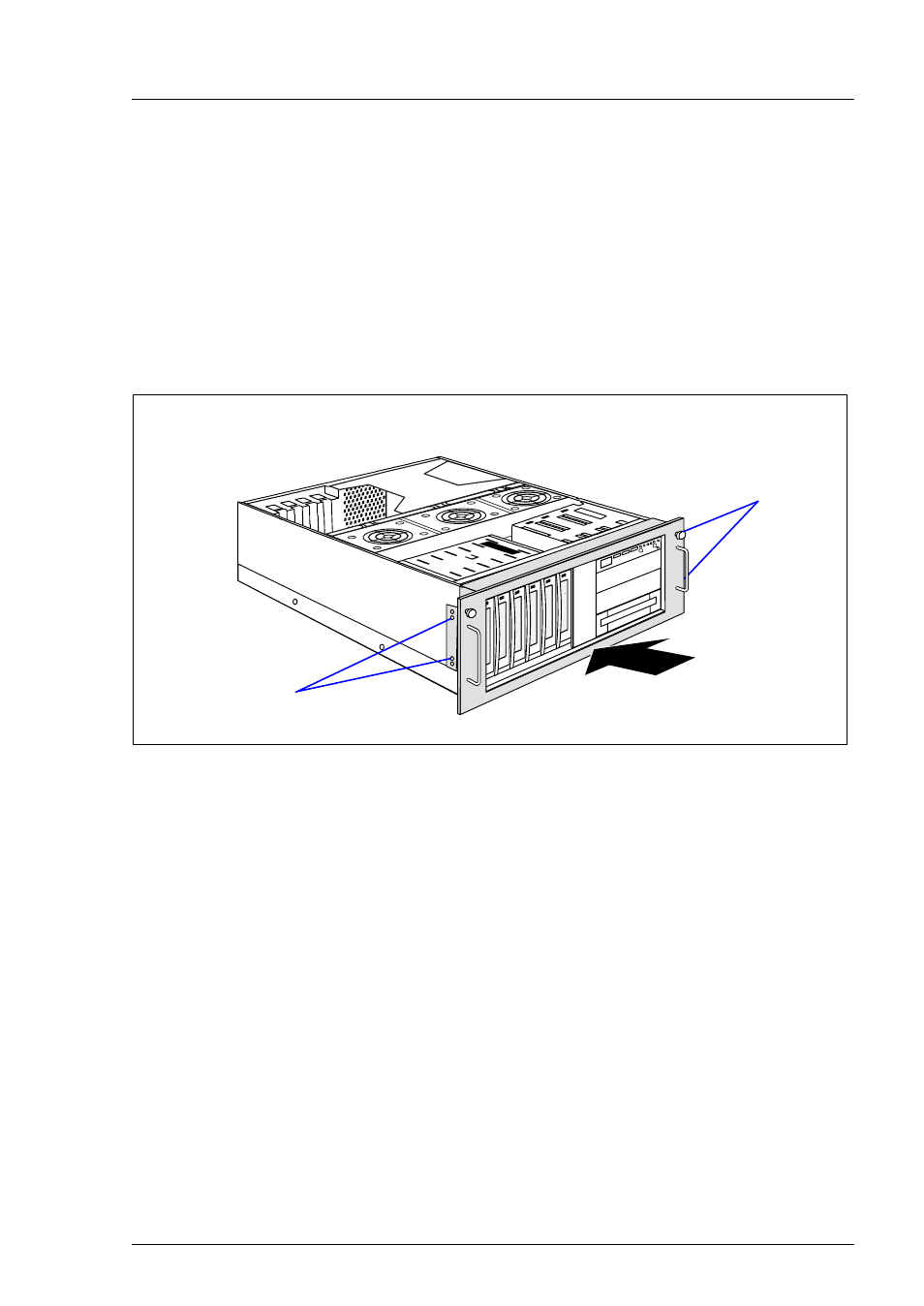

Figure 85: Attaching the rack front cover

Ê

Attach the rack front cover, together with the plastic front cover, from the front
(1).

V

CAUTION!

The rack front cover brackets are marked "Left" and "Right". Position
the bracket marked "Left" on the left of the rack front.

Ê

Attach the rack front cover using two M3 x 6 mm screws on each side (2).

2

2

1
