Options Guide

TX300 S6

Multibay 1

Accessible drives and LSD/LSP

7.3.2

Installing Multibay 1

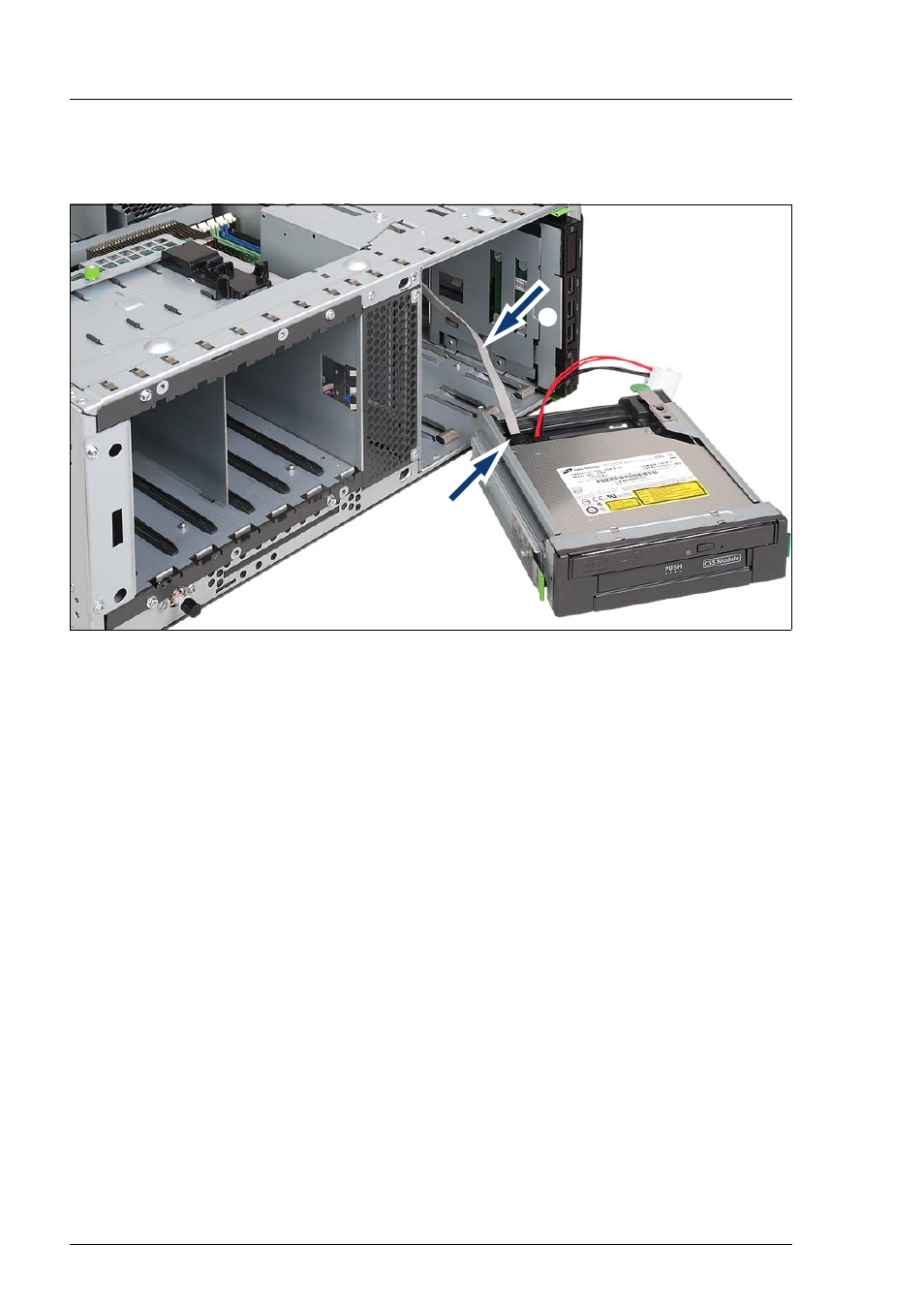

Figure 37: Connecting the SATA cable to the DVD drive

Ê

Pull the SATA cable (1) out of the housing through the drive cage.

Ê

Connect the SATA cable to the DVD drive (2) (see the cabling plans in the
Appendix).
