Installing the SU-I
Installation
61
2.5.5.3 Window
Mount
The installation kit includes 2 suction cups.
1
Attach the suction cups to the antenna. Refer to Figure 2-17 for directions.
2
Determine the location of the antenna on the glass. Attach it to the window by
pressing the suction cups onto the glass.
3
Connect the antenna cable to the connector located on the bottom side of the
antenna. Use only the torque key supplied with the antenna. Do not over
tighten. Do not use a wrench or a similar tightening tool.
CAUTION
The suction cups are sensitive to weather conditions and may not hold in high temperatures or
during rain. It is strongly recommended to mount the antenna on the wall using the supplied
brackets.

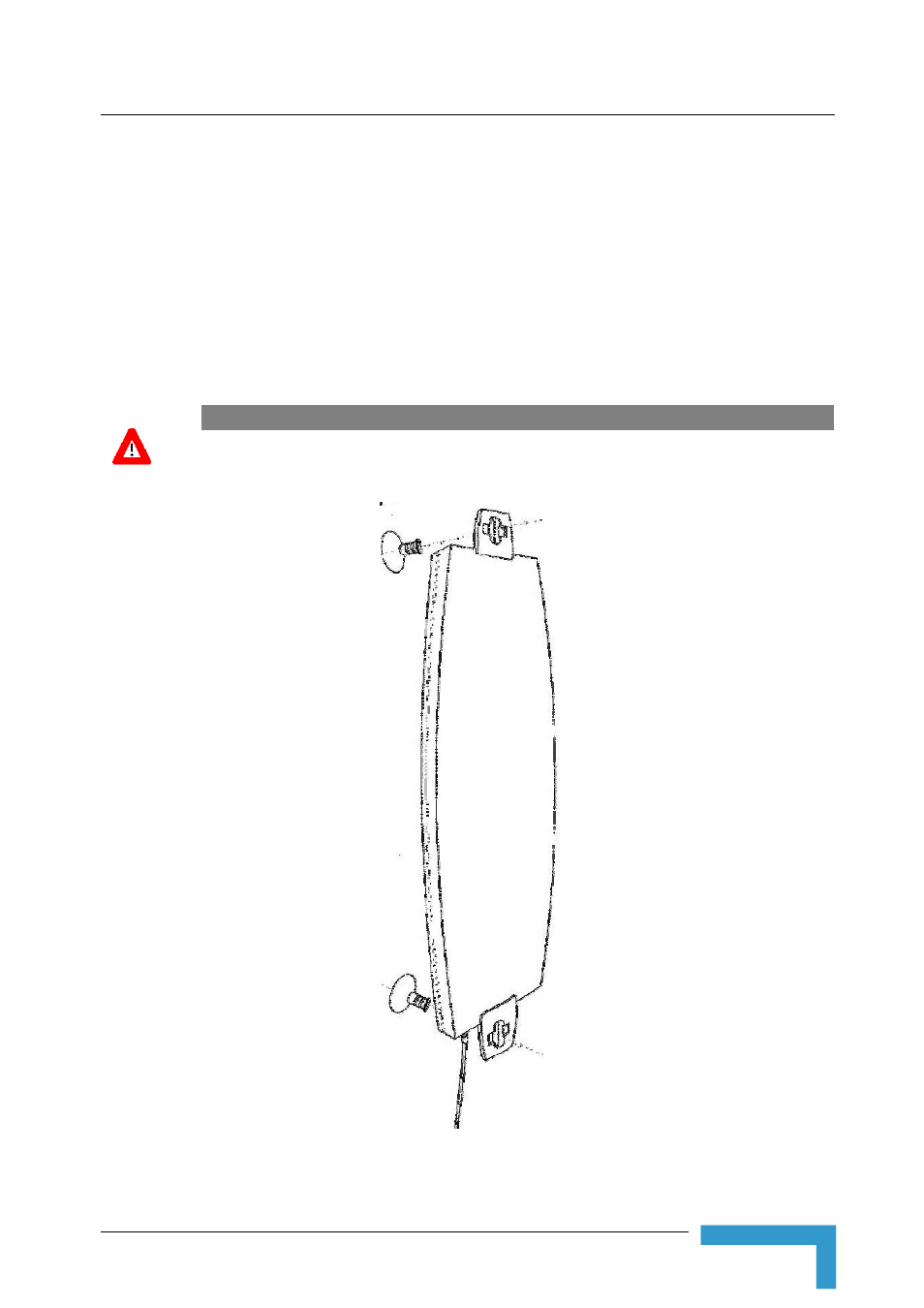

Figure 2-17: Window Mounting the Antenna
