Appendix D - Preparing the Indoor to Outdoor SU Cable
BreezeACCESS VL System Manual
222
The Indoor-to-Outdoor cable provides pin-to-pin connection on both ends.

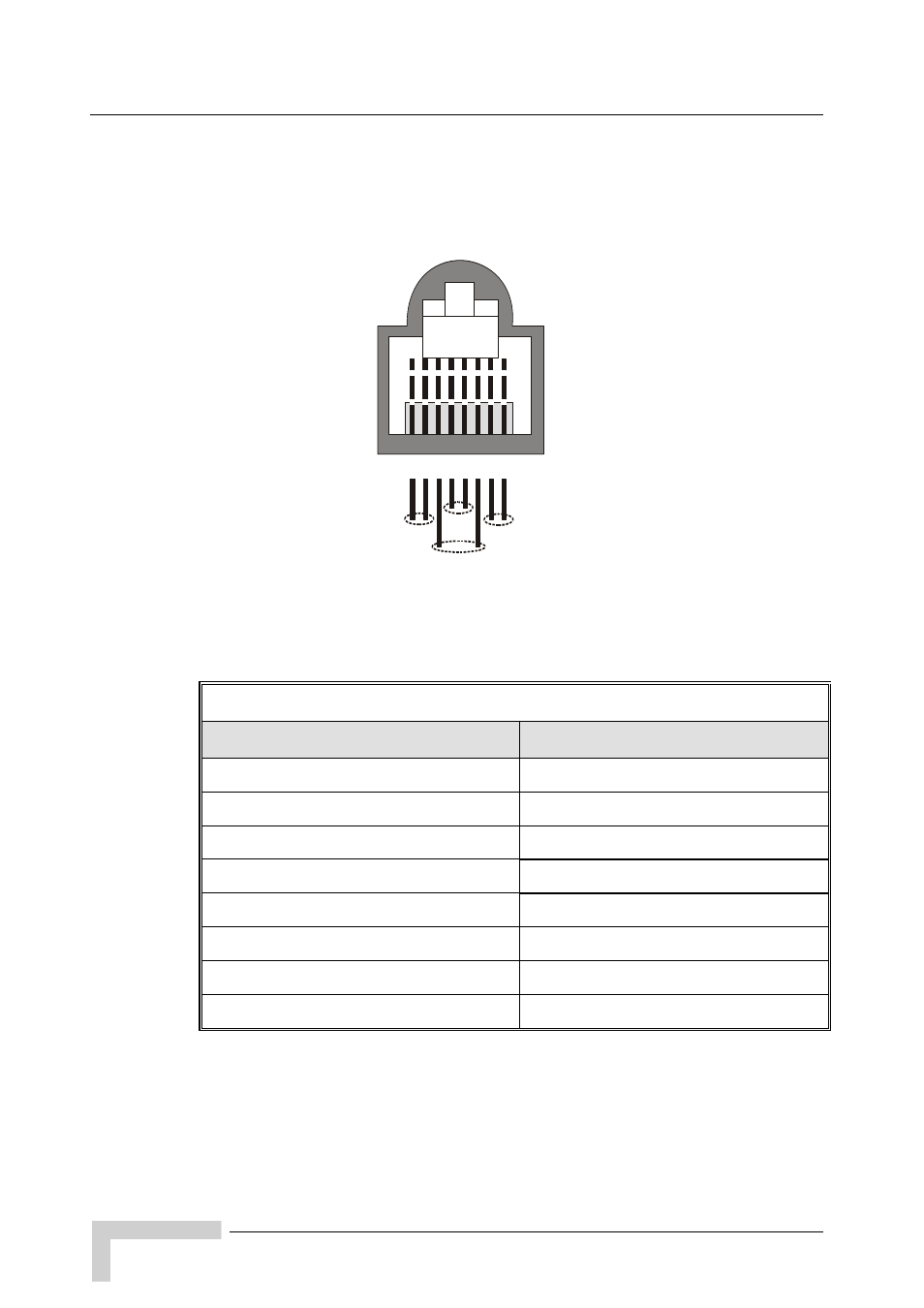

Figure 4-2 shows the wire pair connections required for the Indoor-to-Outdoor
cable.
1 2 3 4 5 6 7 8
1 + 2
4 + 5
7 + 8
3 + 6
Figure 4-2: Ethernet Connector Pin Assignments
The color codes used in cables that are supplied with crimped connectors are as
listed in the following table:
Cable Color Codes
Wire color Pin
Blue 1
Blue/white 2
Orange 3
Orange/white 6
Brown 4
Brown/white 5
Green 7
Green/white 8
