Programming IDEC SmartRelay
IDEC SmartRelay Manual
73

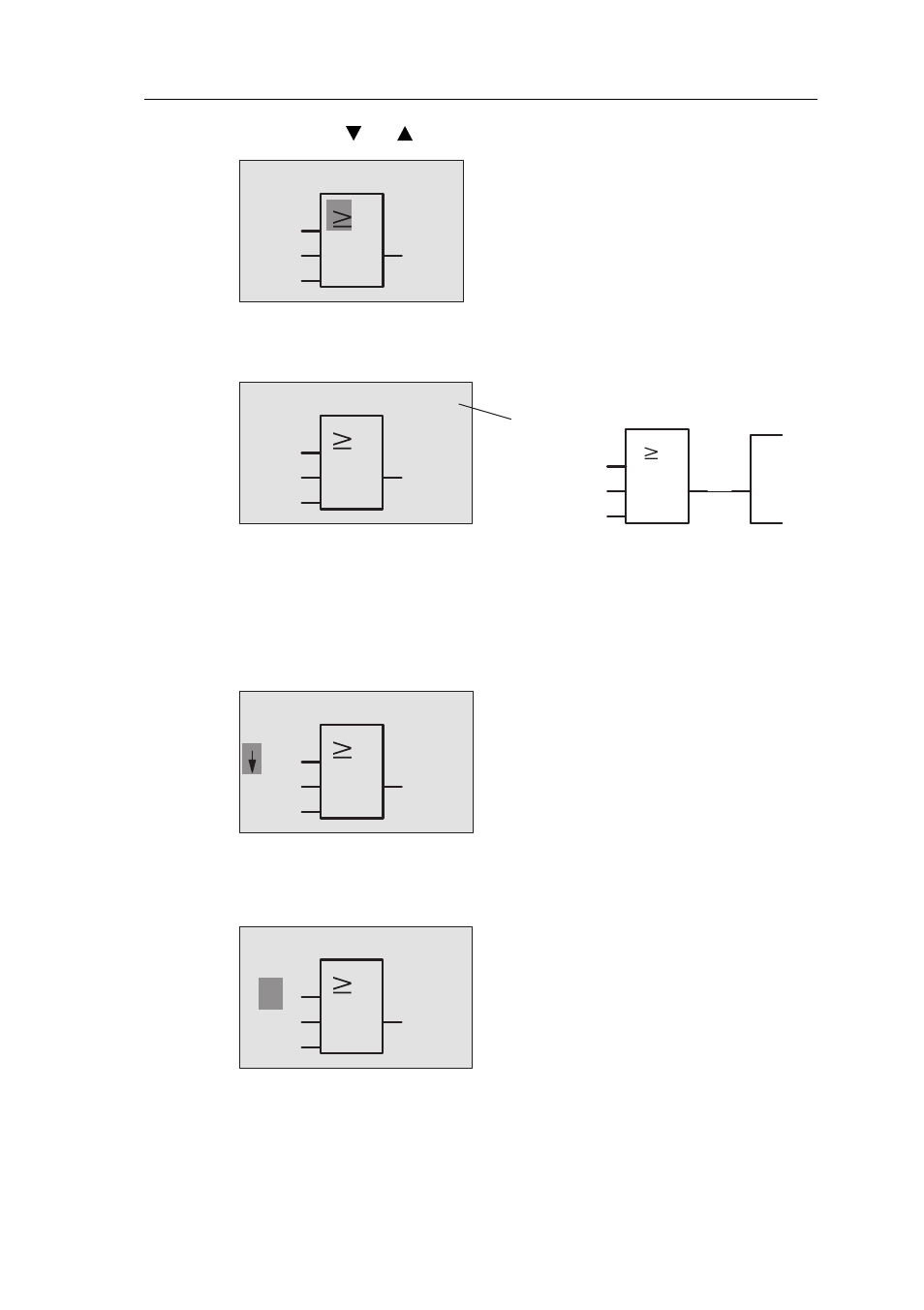

Now press or until the OR block appears on the display:
1
B1
Q1
The solid square cursor is still
positioned on the block.
Press OK to confirm your entries and exit the dialog.
1
B1
Q1
B1
1
Q1
–
The display now shows:
Block
number
Your complete circuit
program layout
You have now entered the first block. Each new block is
automatically assigned a block number. The only thing left to
do is interconnect the block inputs. This is how it is done:
Press OK.
1
B1
Q1
Co
The display now shows:
Select the Co list: Press OK
1
B1
Q1
x
The display now shows:
The first element of the Co list is the ”Input 1” character,
namely ’I1’.
