IDEC SmartRelay functions
206 IDEC SmartRelay Manual 
Functional description
In parameter assignment mode, the output is set with a
signal at input En, if the ’’Switch’ parameter is set to ’On’ and
confirmed with OK. Whether the function was configured for
pushbutton or switching action is of no concern here.
The output is reset to ’0’ in the following three cases:
• After a 1 to 0 transition at input En
• When the function was configured for momentary
pushbutton action, and one cycle has expired since it was
switched on
• When the position ’Off’ was selected at the ’Switch’
parameter and confirmed with OK in parameter
assignment mode
If retentivity is not set, output Q is initialized after a power
failure according to your configuration at the ”Start”
parameter.
Setting the Par parameter

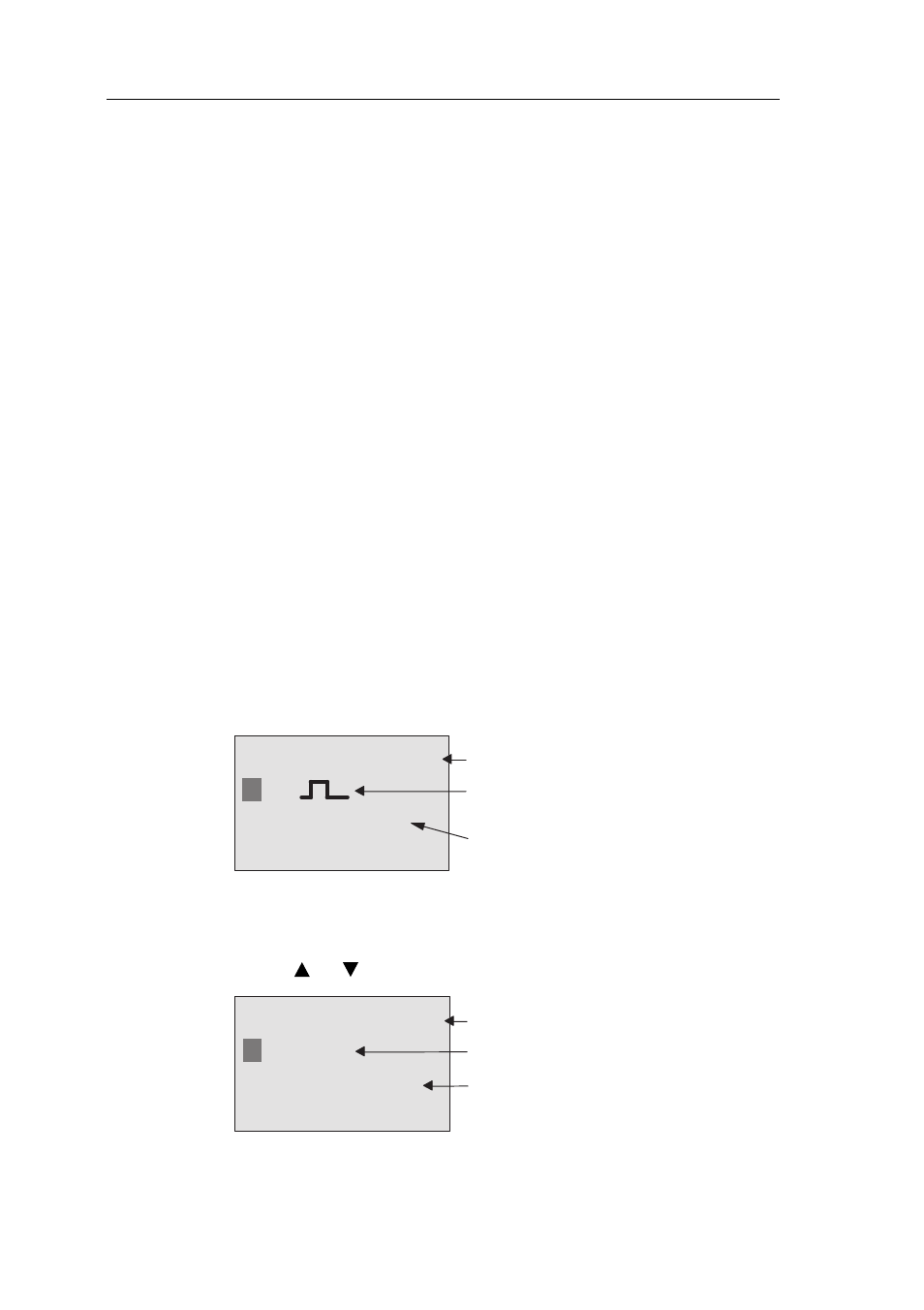

View in programming mode (example):
1. Select the ’Softkey’ function.
2. Select input En and confirm with OK. The cursor is now
positioned below ’Par’.
3. Change to the input mode of ’Par’: 
Confirm with OK 
(the cursor is now positioned to ’On’)
B33 +/
On=
Start=On The status is not retentive
The function is set for “momentary
pushbutton” action
Q is set in the first cycle after the
program start
To change ’Par’ to ’Switch’ action and the initialization status
after the program start:
4. To select ’Momentary pushbutton’ or ’Switch’ action:
Press or
B33 +/
On/Off
Start=On The status is not retentive
“Switch” function
Q is reset in the first cycle after the
program start
