Applications
IDEC SmartRelay Manual
267

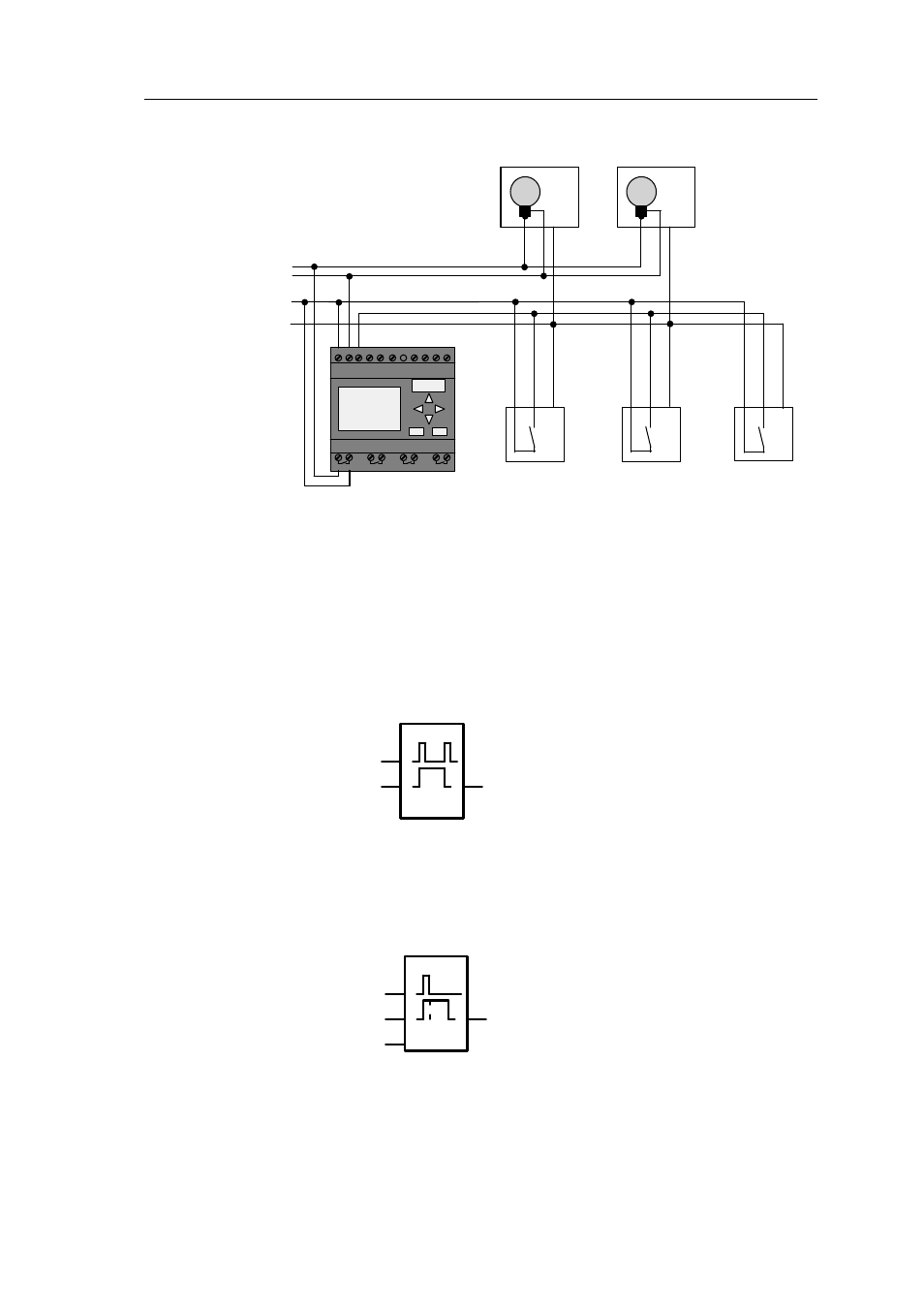

Wiring of a lighting system with FL1E-H12RCC
The external wiring of a lighting system with an IDEC
SmartRelay is no different than it is for a conventional
stairway and corridor lighting system. Only the automatic
stairwell light switch/current impulse relay is replaced.
Supplementary functions are entered directly in IDEC
SmartRelay.
Current impulse relay with IDEC SmartRelay
Output Q1 is toggled with a pulse signal at input I1.
Automatic stairwell light switch with IDEC SmartRelay
Output Q1 is set for the duration of 6 minutes with a pulse
signal at input I1.
L1 N
I1
I3 I6 I7 I8
Q1
Q2
Q3
Q4
L
N
PE
I4
I5
I1 I2 I3
I1 I2 I3
Lamps
Switches
I1
Q1
x
Switch:
Lamps
I1
Q1
T
06:00m
Momentary
Switch:
Lights
