Programming IDEC SmartRelay

IDEC SmartRelay Manual



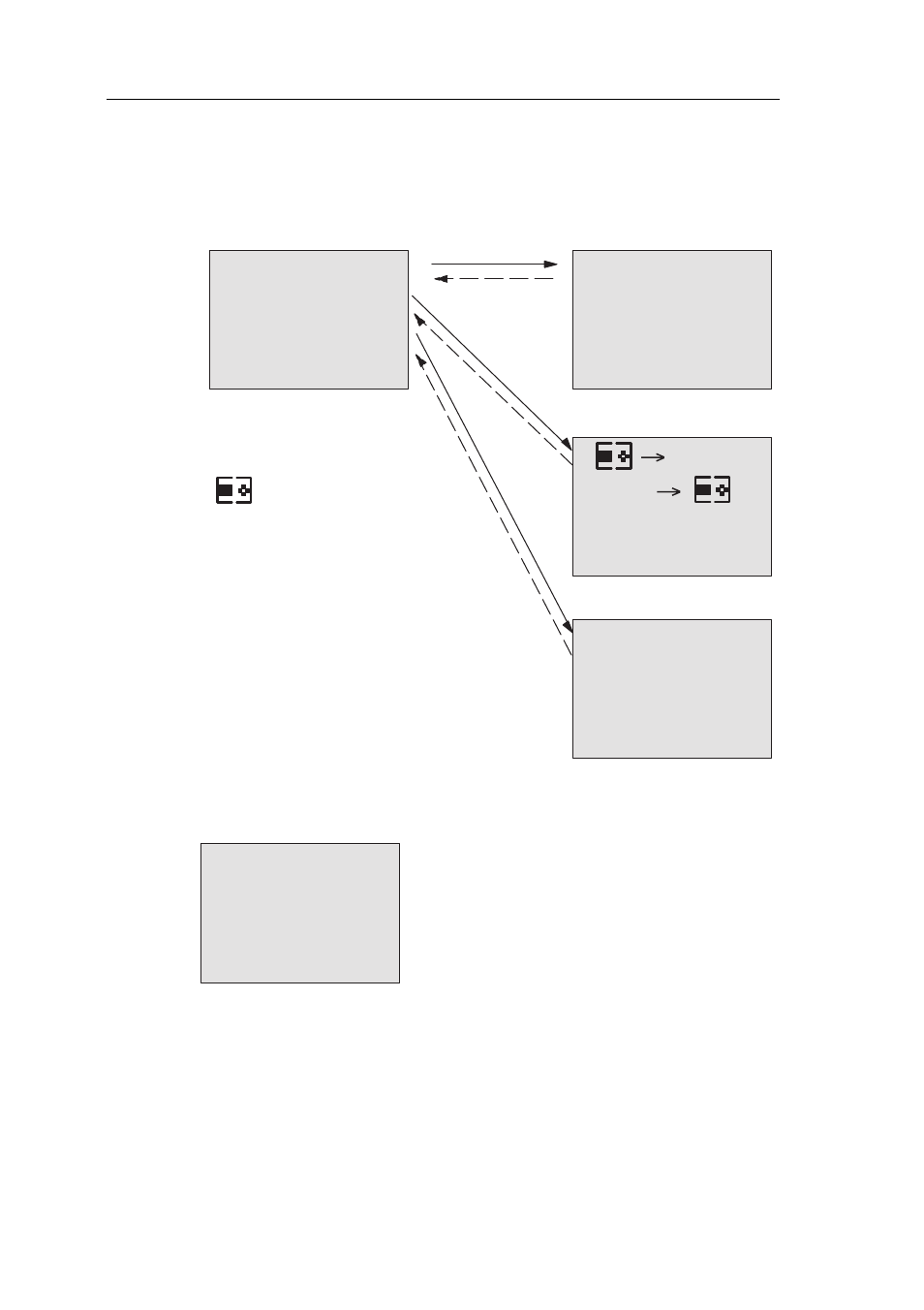

3.5 Overview of IDEC SmartRelay menus

Programming mode

Parameter assignment mode

Parameter assignment menu

>Stop

Set Param

Set..

Prg Name

For more details on these menus, refer to Appendix D.
The Text Display menus provide configuration settings for

the Text Display. These menus are a subset of the IDEC

SmartRelay menus and are operated in much the same way.

Appendix section D.2 shows the Text Display menus.

>Program..

Card..

Setup..

Start

>Edit..

Clear Prg

Password

Msg Config

Card

CopyProtect

= IDEC

SmartRelay

>Clock

LCD

Menu Lang

BM AI NUM

Main Menu

Programming menu

ESC

Transfer menu

Setup menu

Note: The ‘BM AI NUM’ selection is
only available on base modules that
support four analog inputs.

ESC
