B3 r q=s8, B3 r q=s7 – IDEC FL1E SmartRelay User Manual
Page 223
Trg
In
Q
Dir
S1
0
1
0
1
1
0
1
S2
0
0
1
0
1
1
1
S3
0
0
0
1
0
1
0
S4
0
0
0
0
1
0
1
S5
1
0
0
0
0
1
0
S6
1
1
0
0
0
0
0
S7
0
1
1
0
0
0
0
S8
0
0
1
1
0
0
1
S4 = Q (example)
Shift up
Shift down
IDEC SmartRelay functions
IDEC SmartRelay Manual
209

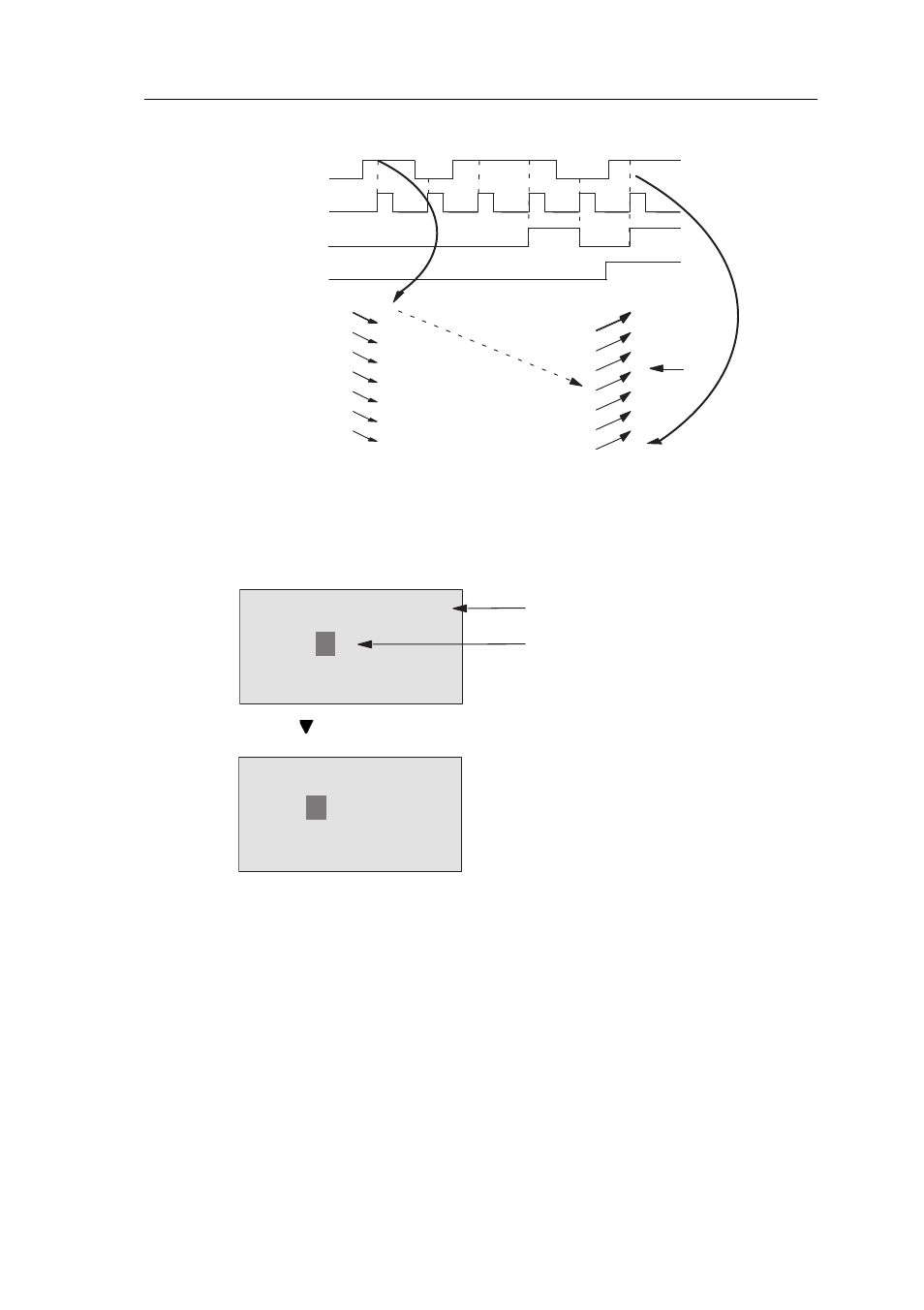

Timing diagram
Setting the Par parameter
View in programming mode:
B3 R
Q=S8
Retentivity enabled
Preset
Press
B3 R
Q=S7
etc. You can select S8...S1.
This special function is not available in parameter
assignment mode.
