Applications
IDEC SmartRelay Manual
271

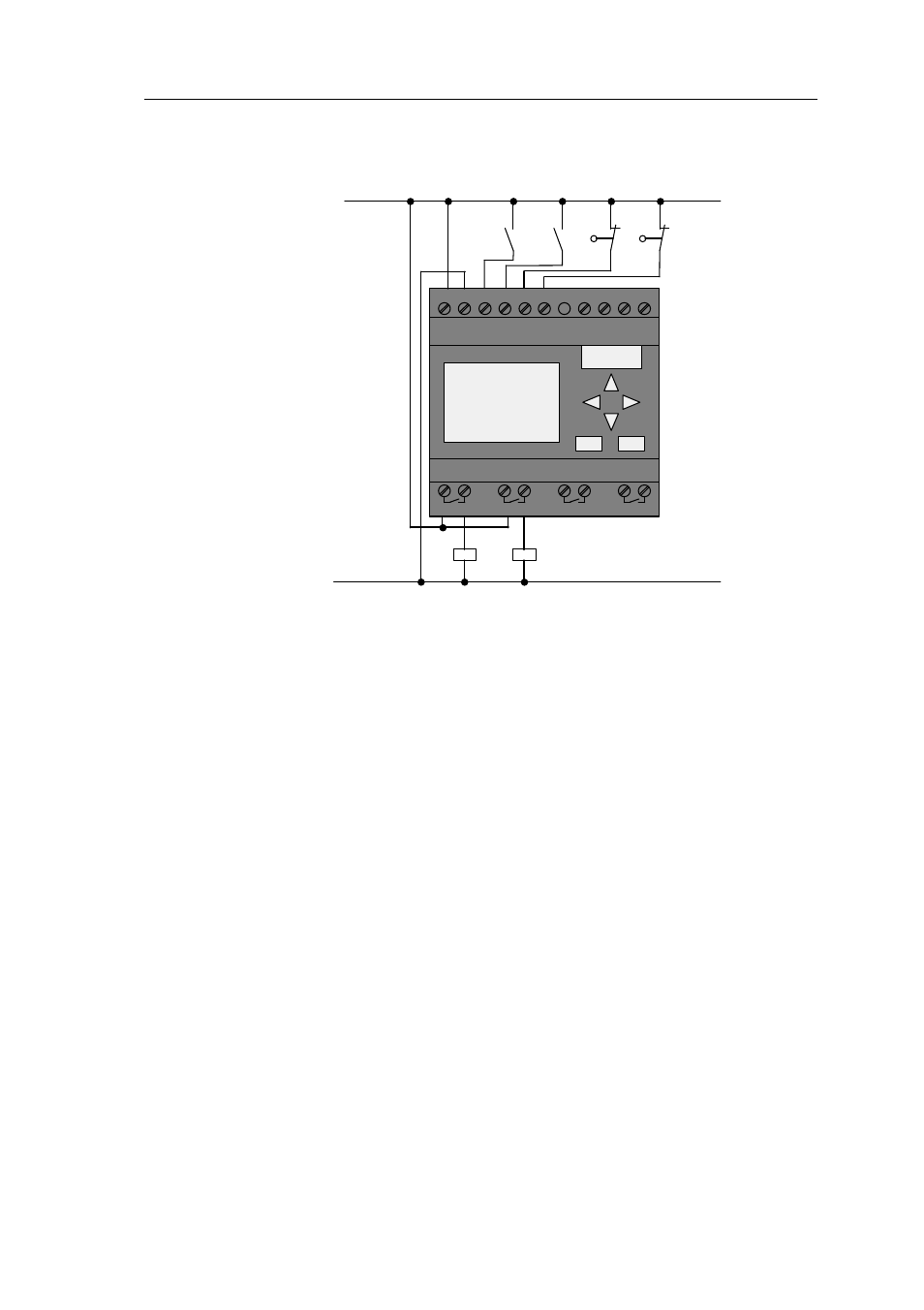

Wiring of a door control system with FL1E-H12RCC
Components used
• K1
contactor relay (open)
• K2
contactor relay (close)
• S1 (normally closed contact) limit switch (close)
• S2 (normally closed contact) limit switch (open)
• B1 (normally open contact)
infrared motion sensor
outside
• B2 (normally open contact)
infrared motion sensor
inside
L1 N
I4
I5
I6
I7
I8
Q1
Q2
Q3
Q4
K1
K2
B1
B2
S2
S1
L1
N
I1
I2
I3
1 2
1 2
1 2
1 2
Open
Close
