IDEC SmartRelay installation and wiring
IDEC SmartRelay Manual
29
2.2.2
Wall-mounting

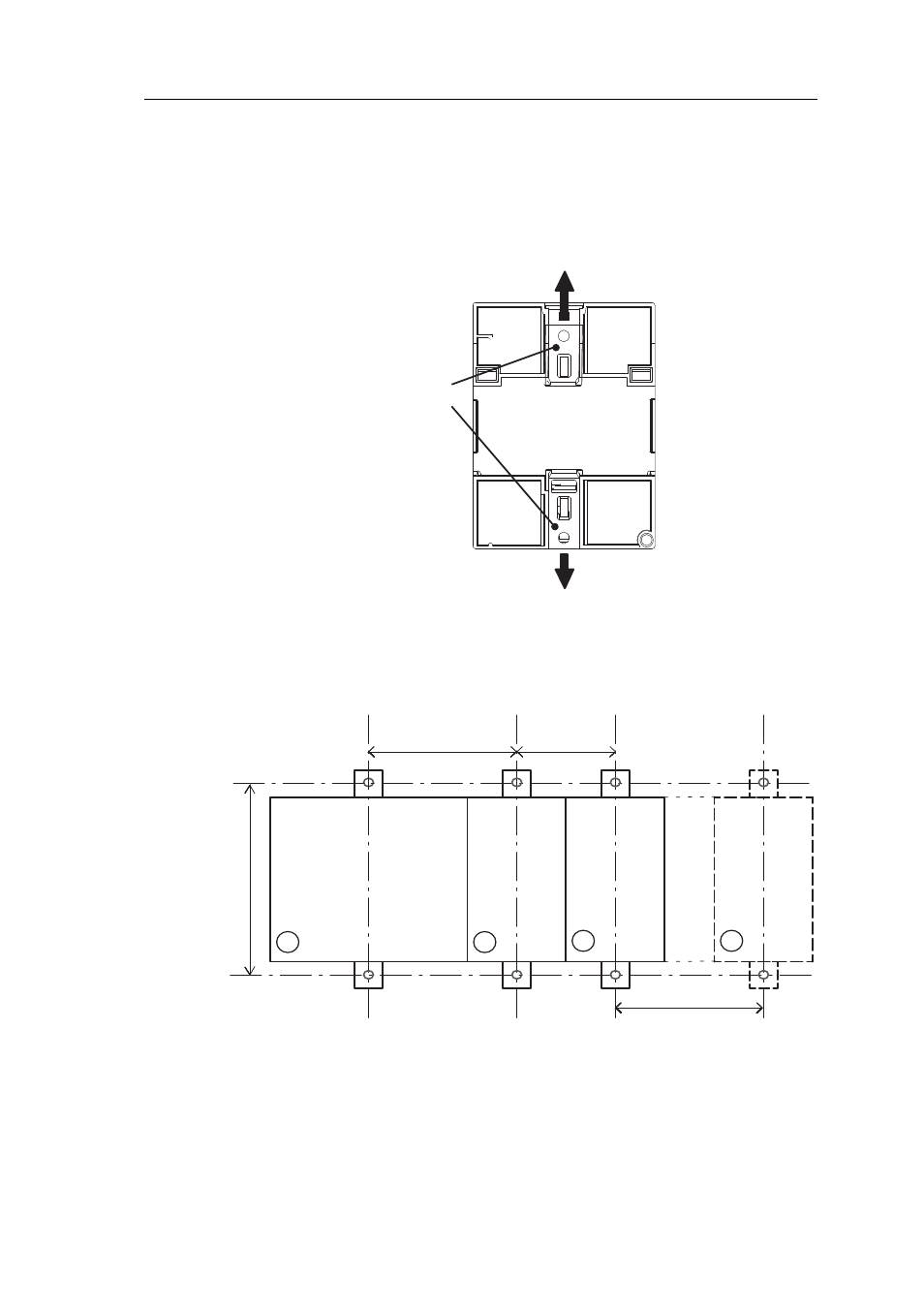

For wall-mounting, first slide the mounting slides on the rear
side of the devices towards the outside. You can now wall-
mount IDEC SmartRelay by means of two mounting slides
and two
M4 screws (tightening torque 0.8 to 1.2 Nm).
Mounting slides
Drilling template for wall-mounting
Before you can wall-mount IDEC SmartRelay, you need to
drill holes using the template shown below.
98 +/– 0.3
1
2
2
2
+0.2
53.5–0.0
+0.2
35.5–0.0
+0.2
n x 35.5–0.0
All dimensions in mm
Bore hole for
M4 screw, tightening torque 0.8 to 1.2 Nm
1) IDEC SmartRelay base module
2) IDEC SmartRelay expansion modules
