Applications
IDEC SmartRelay Manual
273
8.2.4
Special features and expansion options
Options for increasing comfort and user friendliness are, for
example:
• You can connect an additional control switch with the
positions: Open - Automatic - Closed (O-A-C)
• You can connect a buzzer to an output of the IDEC
SmartRelay to warn of the closing of the door.
• You can enable opening of the door time and
direction-dependent, i.e. opening only during business
hours, and opening only from the inside after closing
time.
8.2.5
Extended solution with FL1E-H12RCC

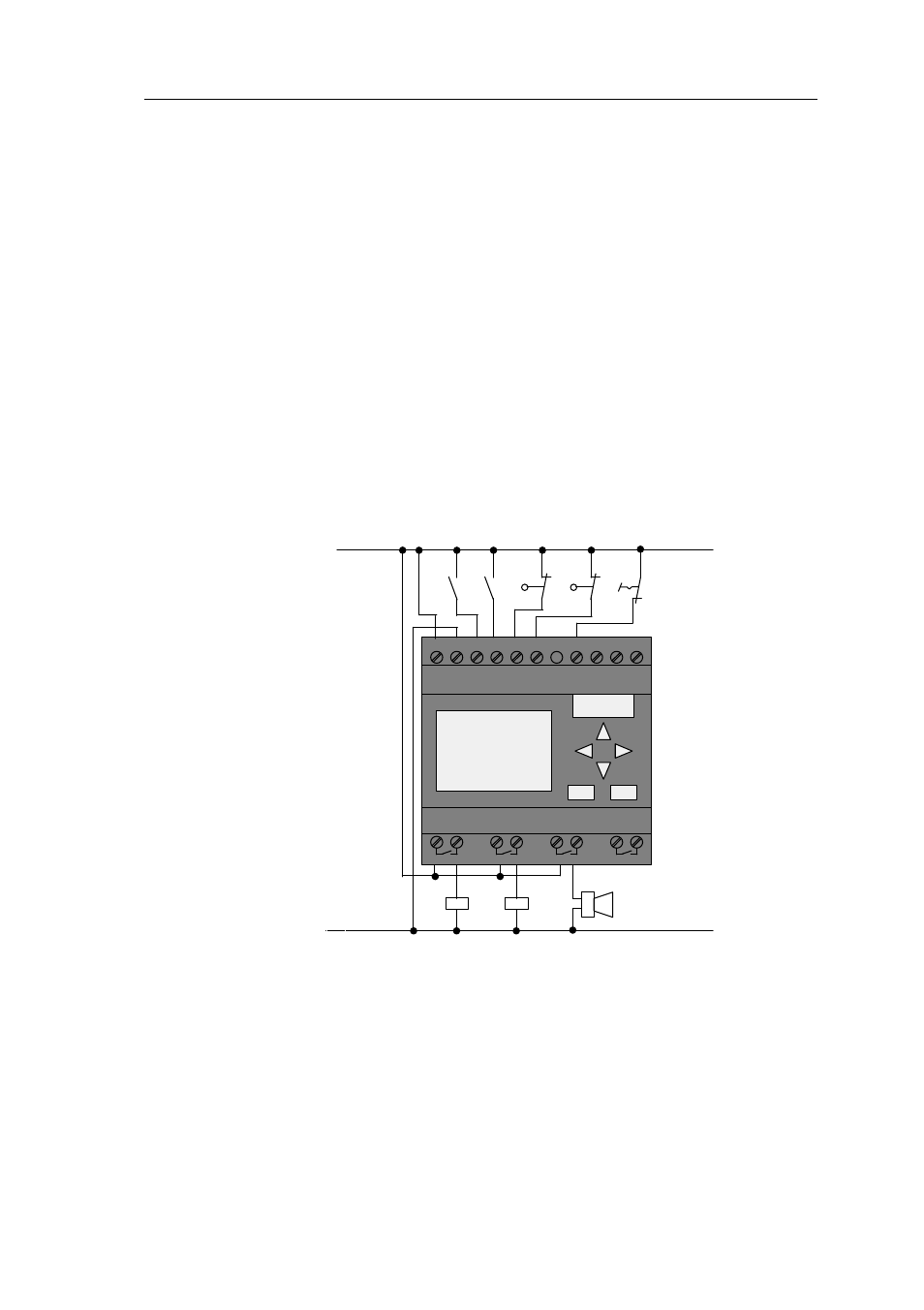

Wiring the IDEC SmartRelay extended solution
L1 N
I4
I5
I6
I7
I8
K1
K2
B1
B2
S2
S1
L1
N
S3
H1
Q1
Q2
Q3
Q4
I1
I2
I3
1 2
1 2
1 2
1 2
Open Close Buzzer
