IDEC SmartRelay functions
154
IDEC SmartRelay Manual
Cam1

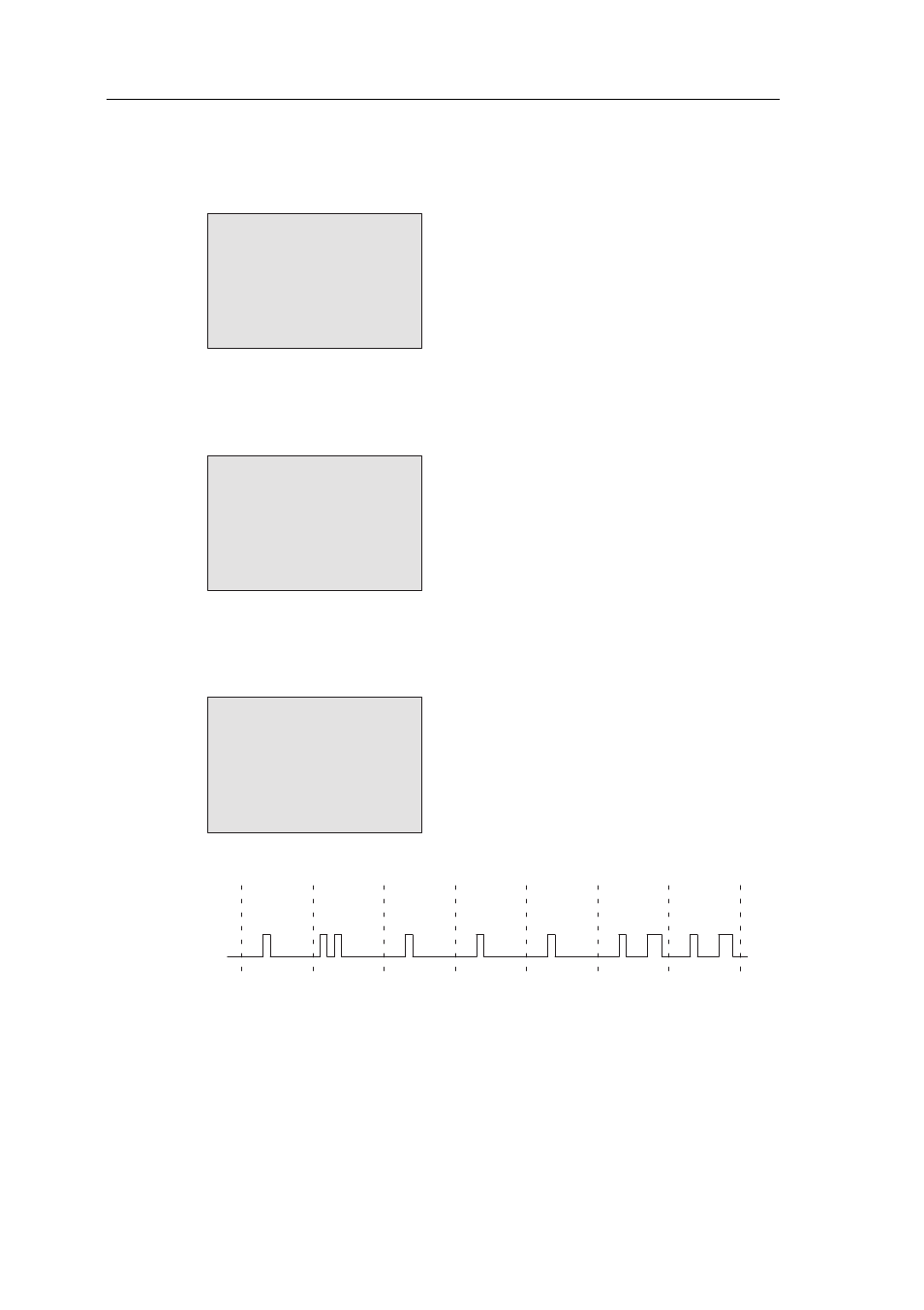

Cam No1 must set the output of the seven-day time switch
daily from 06:30 h to 08:00 h.
B1 1+
D=MTWTFSS
On =06:30
Off=08:00
Cam2
Cam No2 must set the output of the seven-day time switch
every Tuesday from 03:10 h to 04:15 h.
B1 2
D=–T–––––
On =03:10
Off=04:15
Cam3
Cam No3 must set the output of the seven-day time switch
switch every Saturday and Sunday from 16:30 h to 23:10 h.
B1 3
D=–––––SS
On =16:30
Off=23:10
1
Cam
Monday
Wednesday
Tuesday
Saturday
Friday
Thursday
Sunday
1
3
1
2
3
Q
1
1
1
1
Result
