IDEC SmartRelay installation and wiring
IDEC SmartRelay Manual
45
Requirements for transistor outputs
The load connected to IDEC SmartRelay must have the
following characteristics:
• The maximum switched current is 0.3 A per output.
Connecting

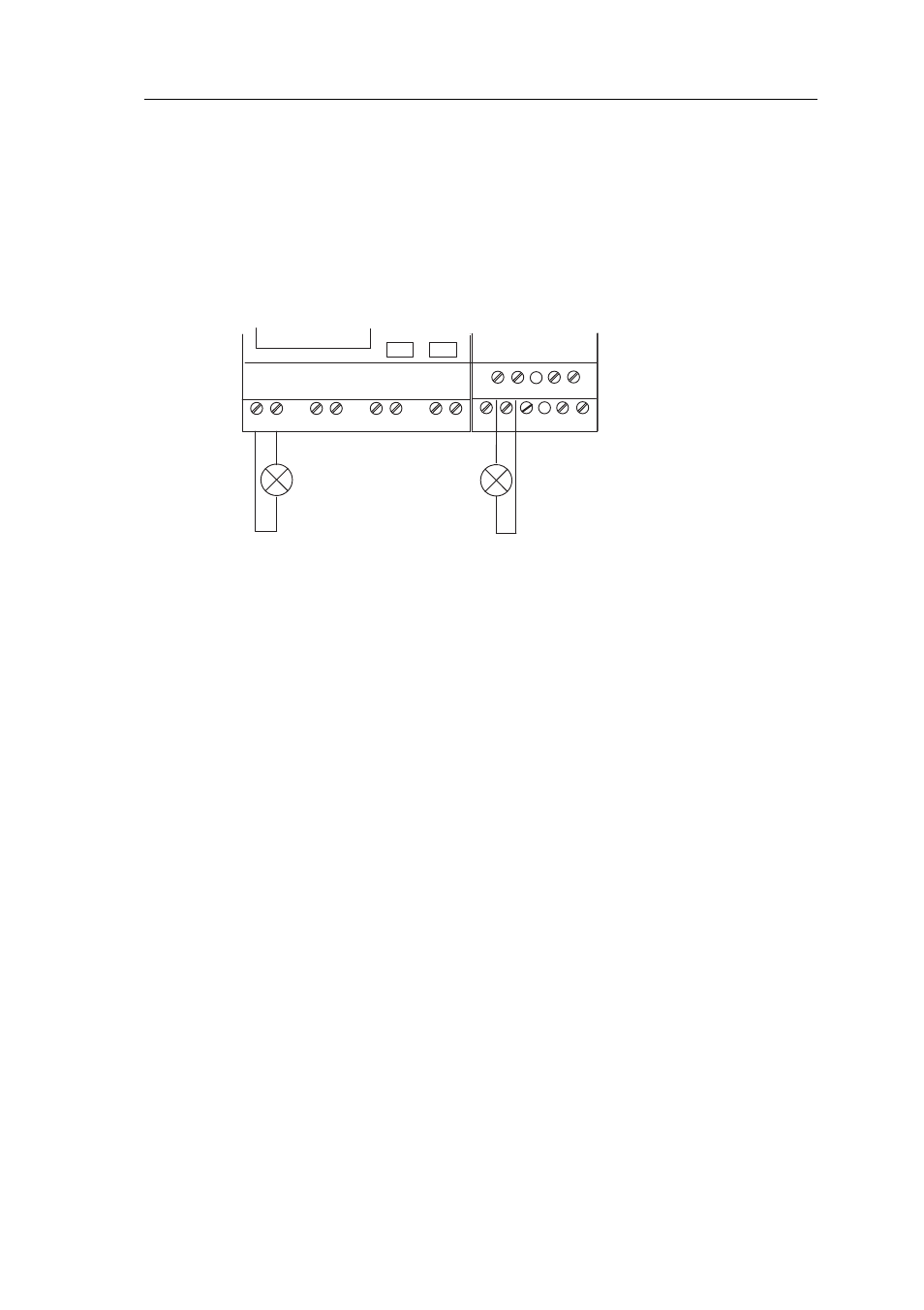

This is how you connect the load to an IDEC SmartRelay
with transistor outputs:
FL1B-M08
Q1
Q2
M
M
Q5
Q6
M
M
Load: 24 V DC, 0.3 A max.
Load
Load
