Anritsu Series MS278XB User Manual
Page 97
Instrument Overview
Rear Panel and Connector Diagrams
MS278XB OM
3-45

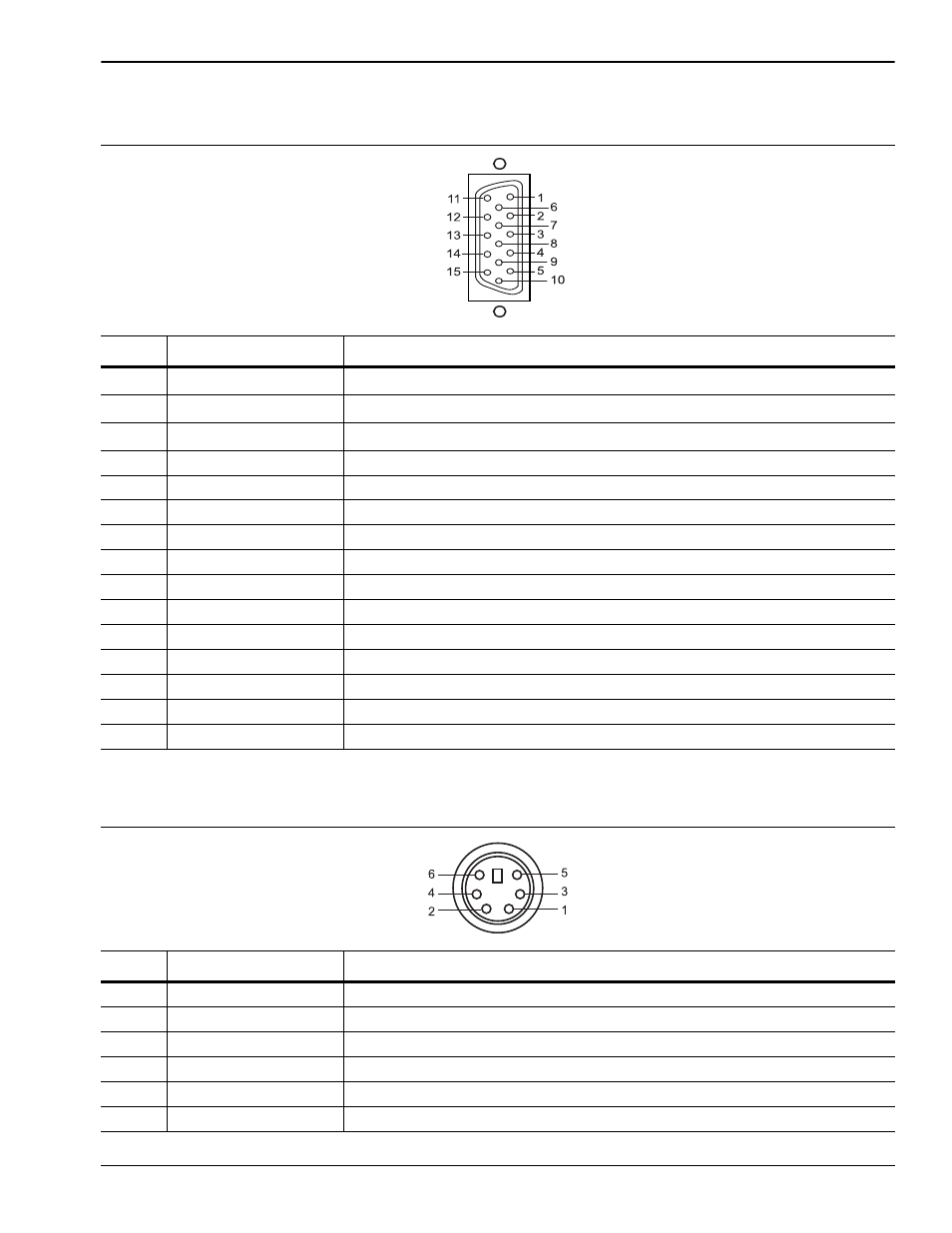

Table 3-13. Index 8: 15-pin XGA Connector Pinout Diagram
Pin
Name
Description
1
Red
Red Video (75
Ω, 0.7 V
p-p
)
2
Green
Green Video (75
Ω, 0.7 V
p-p
)
3
Blue
Blue Video (75
Ω, 0.7 V
p-p
)
4
ID2
Monitor ID Bit 2
5
GND
Ground
6
RGND
Red Ground
7
GGND
Green Ground
8
BGND
Blue Ground
9
Key
Connector Orientation Key
10
SGND
Sync Ground
11
ID0
Monitor ID Bit 0
12
ID1
Monitor ID Bit 1
13
Hsync
Horizontal Sync
14
Vsync
Vertical Sync
15
ID3
Monitor ID Bit 3
Table 3-14. Index 9 and 10: 6-pin PS2 Mouse and Keyboard Connector Pinout Diagram
Pin
Name
Description
1
Data
Data signals from mouse or keyboard
2
–
Not used
3
GND
Ground
4
VCC
+5 volts, 500 mA
5
Clock
Sent data clock
6
–
Not used
