Assembly (optional) Preparation for Use
2-4 MS278XB OM
4. Install the rack mount slides over the threaded studs on the rack mount bracket and handle fixtures as
shown in Figure 2-2, below, and secure them in place with the two fastening nuts.
(Push the button at 1 to release and extend the slide.)
5. Install the two rack mount bracket and slide assemblies onto the instrument sides using the green-
headed screws removed earlier (Figure 2-3).
This completes the installation of the slide assembly.

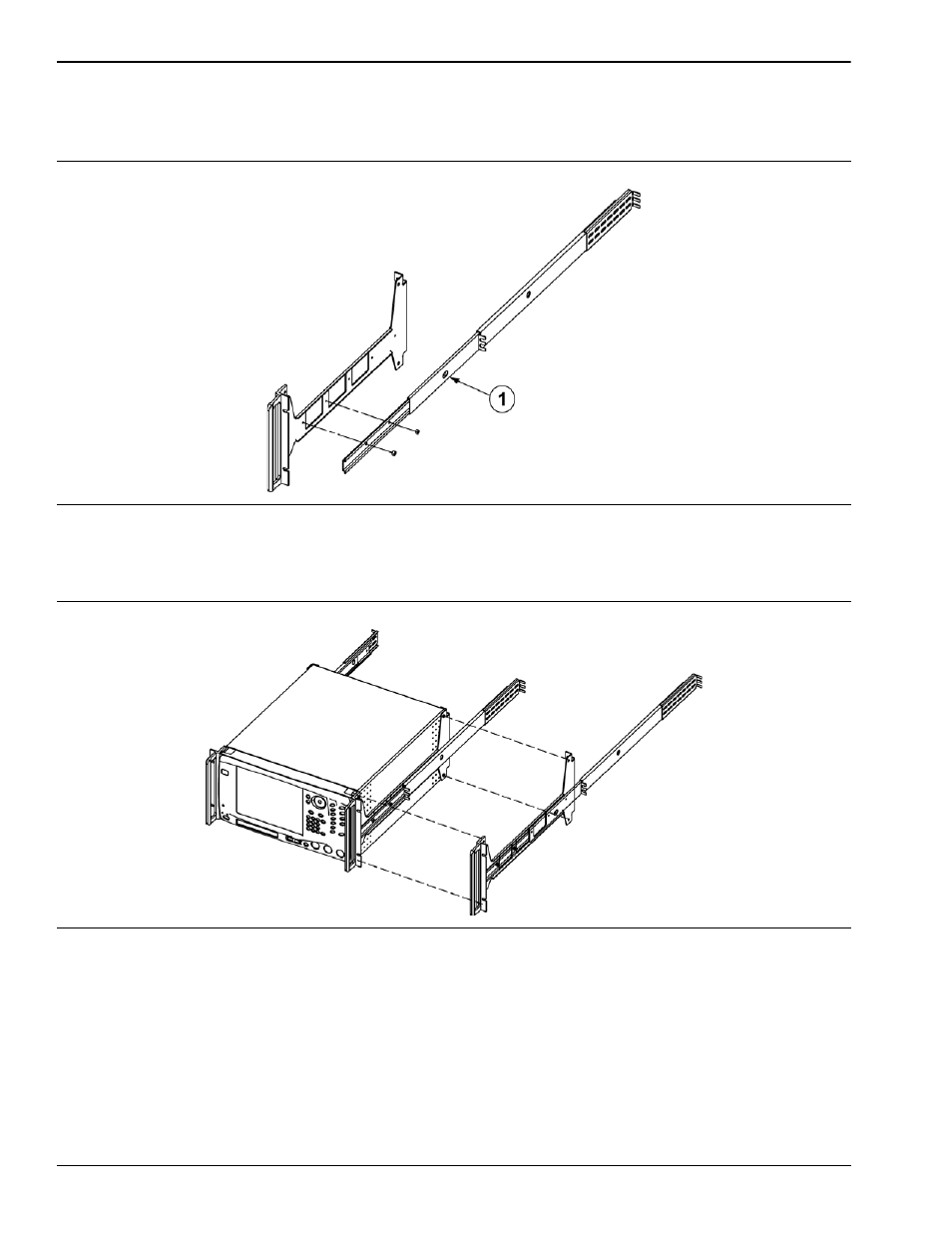

Figure 2-2. Rack Mount Slide Assembly Diagram
Figure 2-3. Rack Mount Assembly Installation Diagram
