Displaying Narrow Band FFT Mode

The following example shows a modulated, 1 GHz signal in the narrow band FFT mode:

1. Preset the analyzer using the Preset button.
2. On the analyzer, set the center frequency to 1 GHz.
3. From the Sweep menu, set the Sweep Mode to FFT.

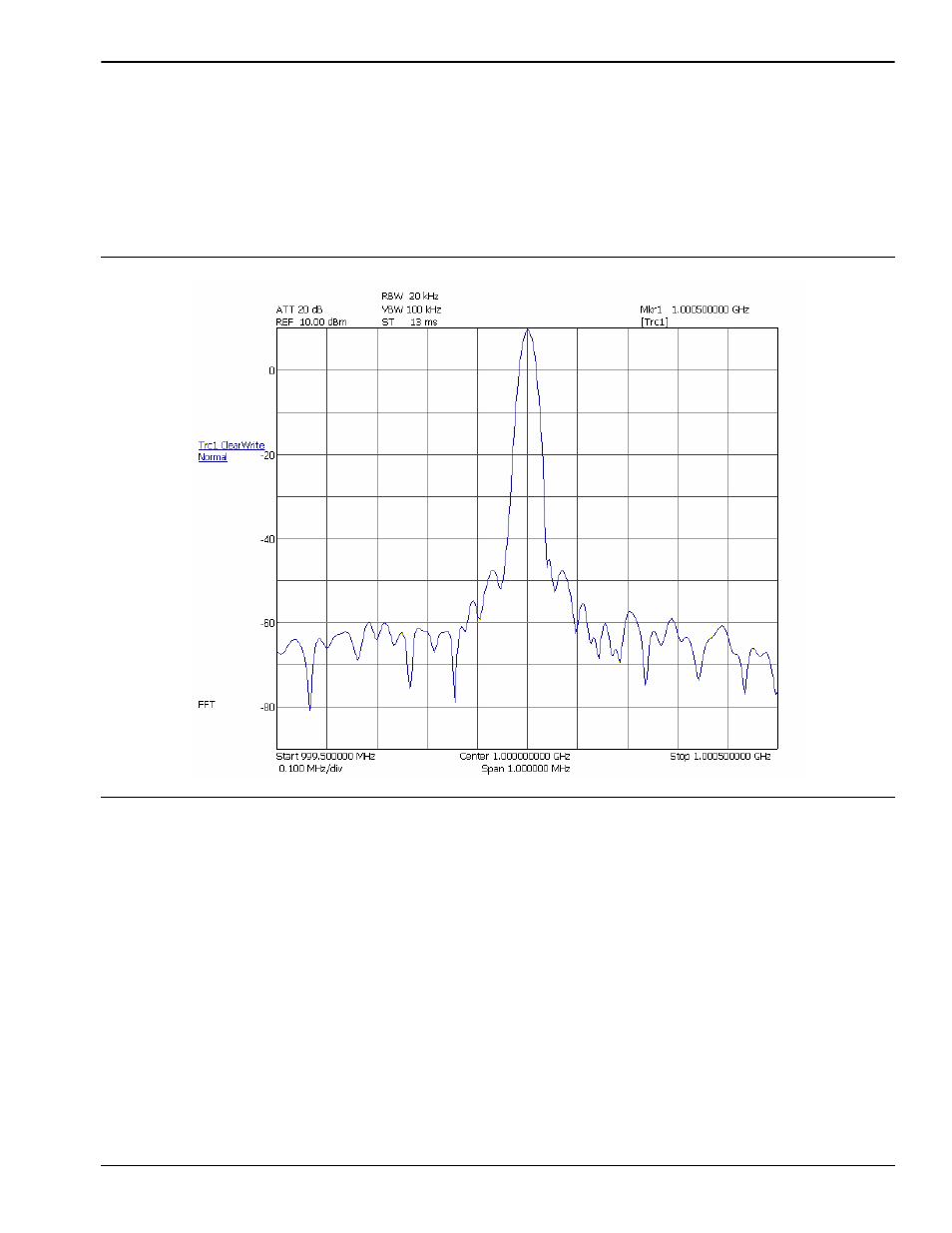

The display should look like the one in the figure below:

Figure 5-4.

Displaying Narrow Band FFT Mode
