Preparation for Use Remote Interface Setup
MS278XB OM 2-13
GPIB Configuration
Apply power to the MS278XB and allow the system to power up. Once the software has finished loading
and start-up testing is complete, the MS278XB is ready to be remotely controlled via the GPIB. It is
important to note that the MS278XB will not respond to GPIB commands until the system’s software has
been loaded.
The default GPIB address for the MS278XB is one (1). To change the default GPIB address, do the
following on the MS2781B:
1. Access the System main menu by pressing the front panel System button, and then expand the
Configuration sub-menu.
2. Press the IO Config button, and then select GPIB.

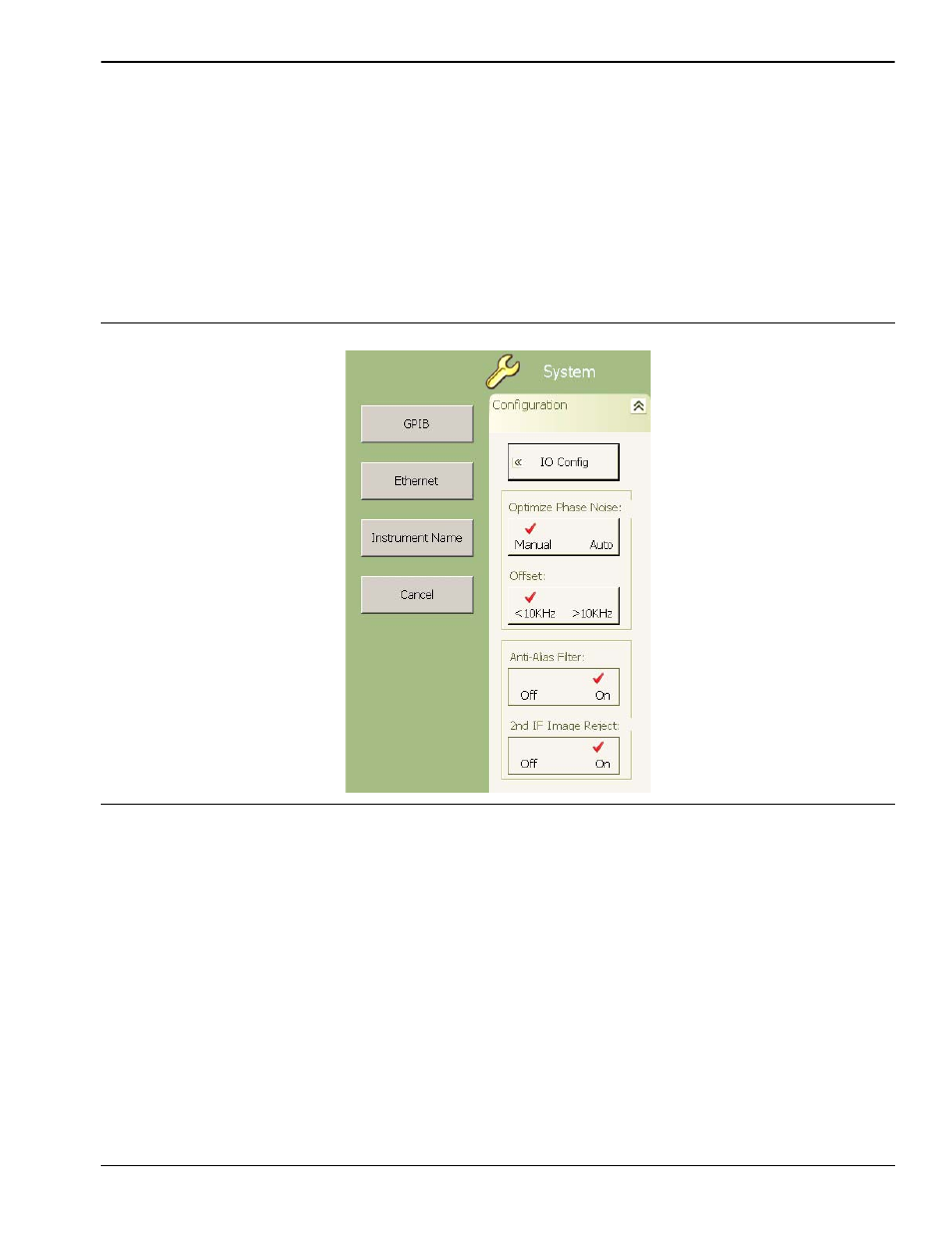

Figure 2-12. MS278XB Configuration Sub-menu
