Instrument Overview Front Panel Overview
MS278XB OM 3-5
16 DVD-ROM/CD-RW Drive Tray Manual Release: The manual release is
used when the drive tray fails to open and needs to be operated manually.
17 Data Display and Touch Panel GUI: The graphical user interface is used to
display measurement data and interactive finger-touch menus.
18 Front Panel USB Ports: The two front panel USB ports offer a convenient
interface access for USB compatible devices.
19 Probe Power Port: This port supplies power to your power probe.
20 Tracking Generator Output Port: This port provides for a Tracking
Generator option. This is a future option and is not used at this time.
21 RF Input Port: The RF Input Port provides the connection to the Device
Under Test. Input specification:
+30 dBm @ 50
Ω, MAXIMUM ZERO (0) Volts DC, 100 Hz to 8 GHz
22 Source Output Port: This port provides for an Internal Modulated Source
option. This is a future option and is not used at this time.

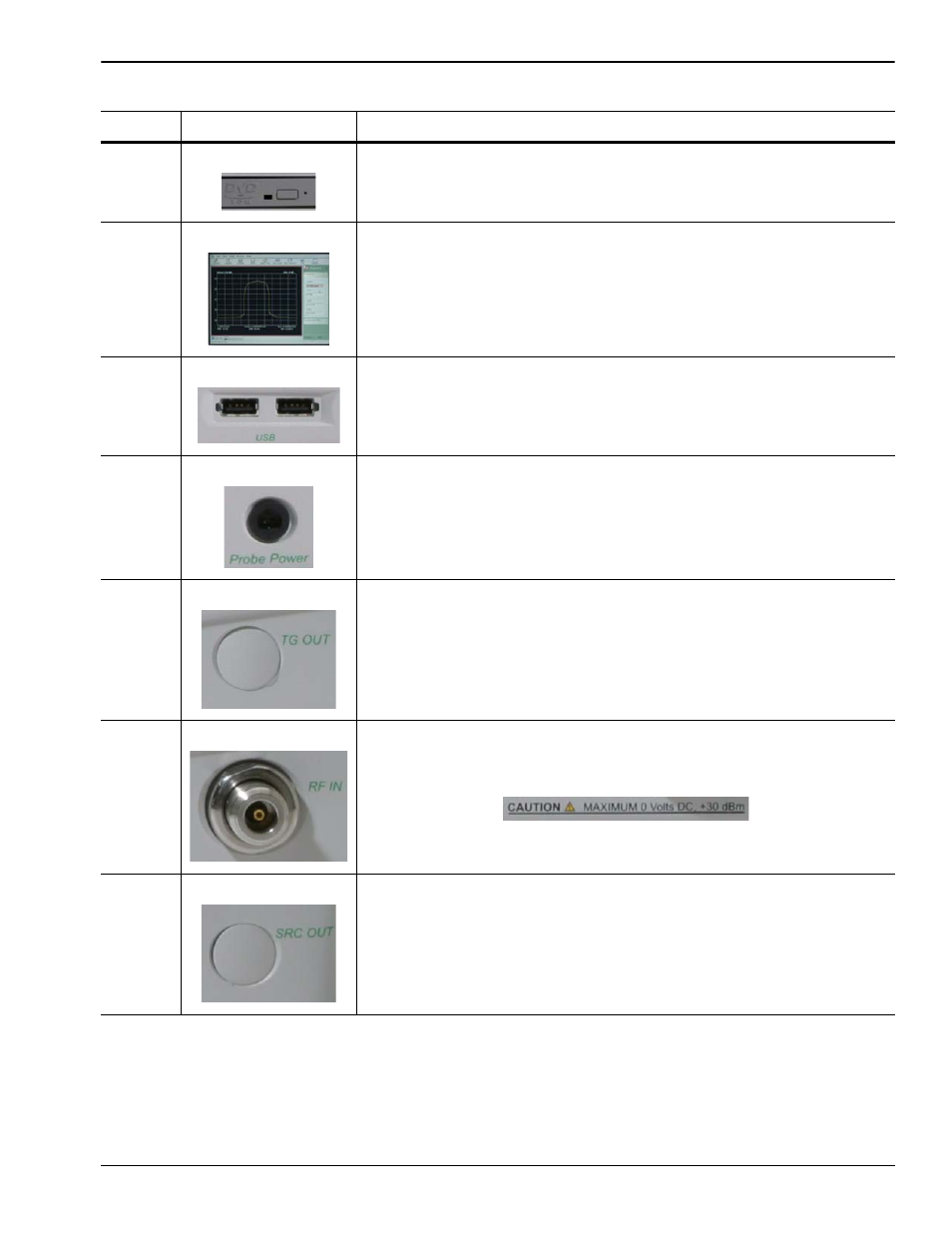

Table 3-1. MS278XB Front Panel Legend
Index Image Description
