Front Panel Overview
Instrument Overview
3-4
MS278XB OM
9
Rotary Knob: The rotary knob is used to increment a selected value up or
down.
10
Minor Function Keys: The minor function keys are used to activate second-
level menus.
11
Major Function Keys: The major function keys are used to activate basic
functional parameter setups and second-level menus found on the GUI.
12
Standby/Operate Key: This key toggles the instrument between standby
and operate mode.
13
DVD-ROM/CD-RW Drive Tray: This tray slides open and holds your CD
media.
14
DVD-ROM/CD-RW Drive Status LED: This LED illuminates green when
data is being read from the CD media and illuminates yellow when data is
being written to the CD media.
15
DVD-ROM/CD-RW Drive Tray Eject Button: This button is pressed to open
the CD media drive tray.

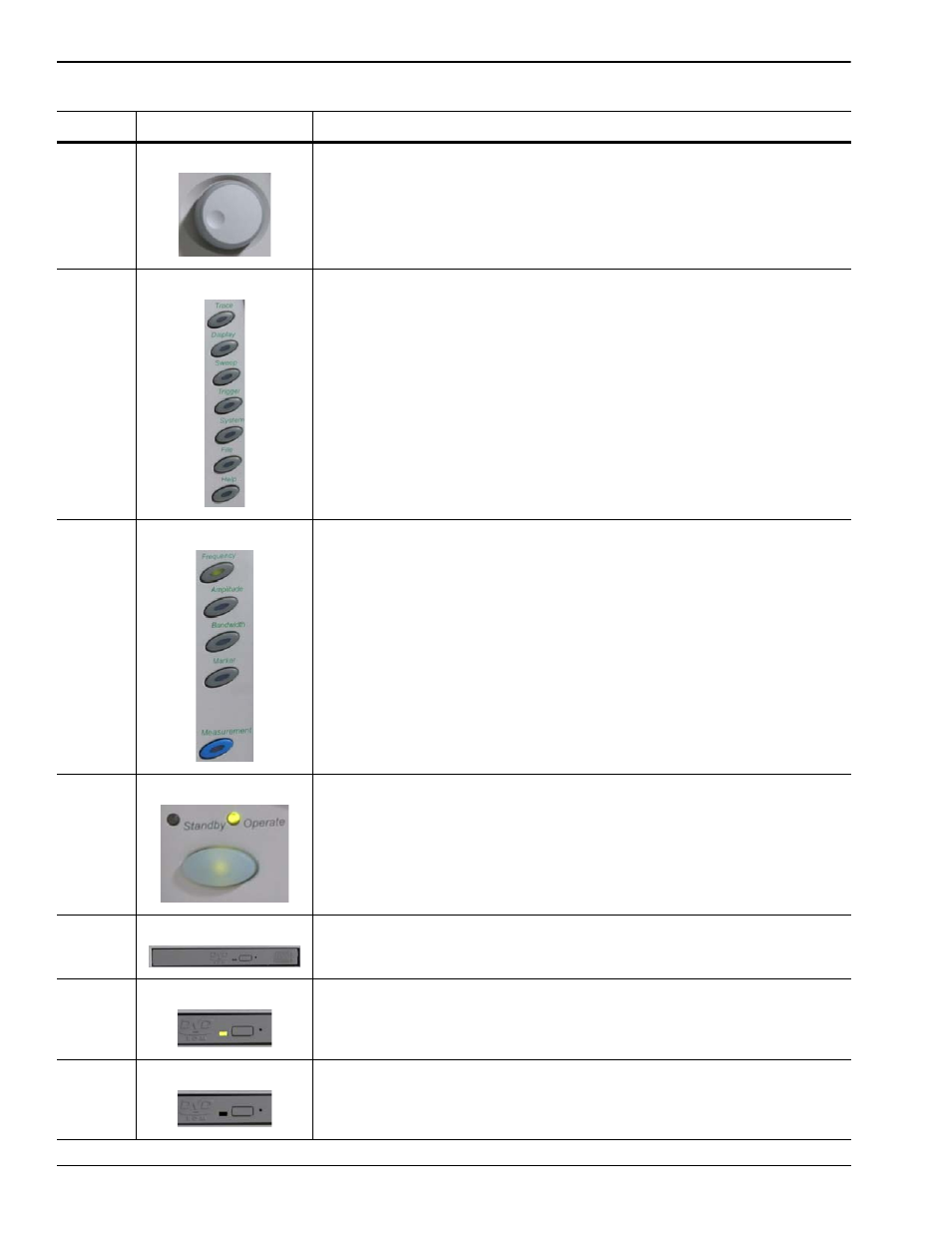

Table 3-1.
MS278XB Front Panel Legend
Index
Description
