CCDF Setup Dialog

Occupied Bandwidth integrates the power of the displayed spectrum and puts markers at the bandwidth limits
as specified in the measurement setup fields. The measurement defaults to 99% of the occupied bandwidth.

CCDF Setup Tab

Target Number of Samples: Sets the target number of
samples for the measurement.

X-Axis Max: Sets the maximum X-axis value.

Gaussian Reference Line: Toggles the Gaussian
reference line On or Off.

RBW: Sets the resolution bandwidth for the analysis.

Input: Selects between Wideband RF Input or
Narrowband RF Input.

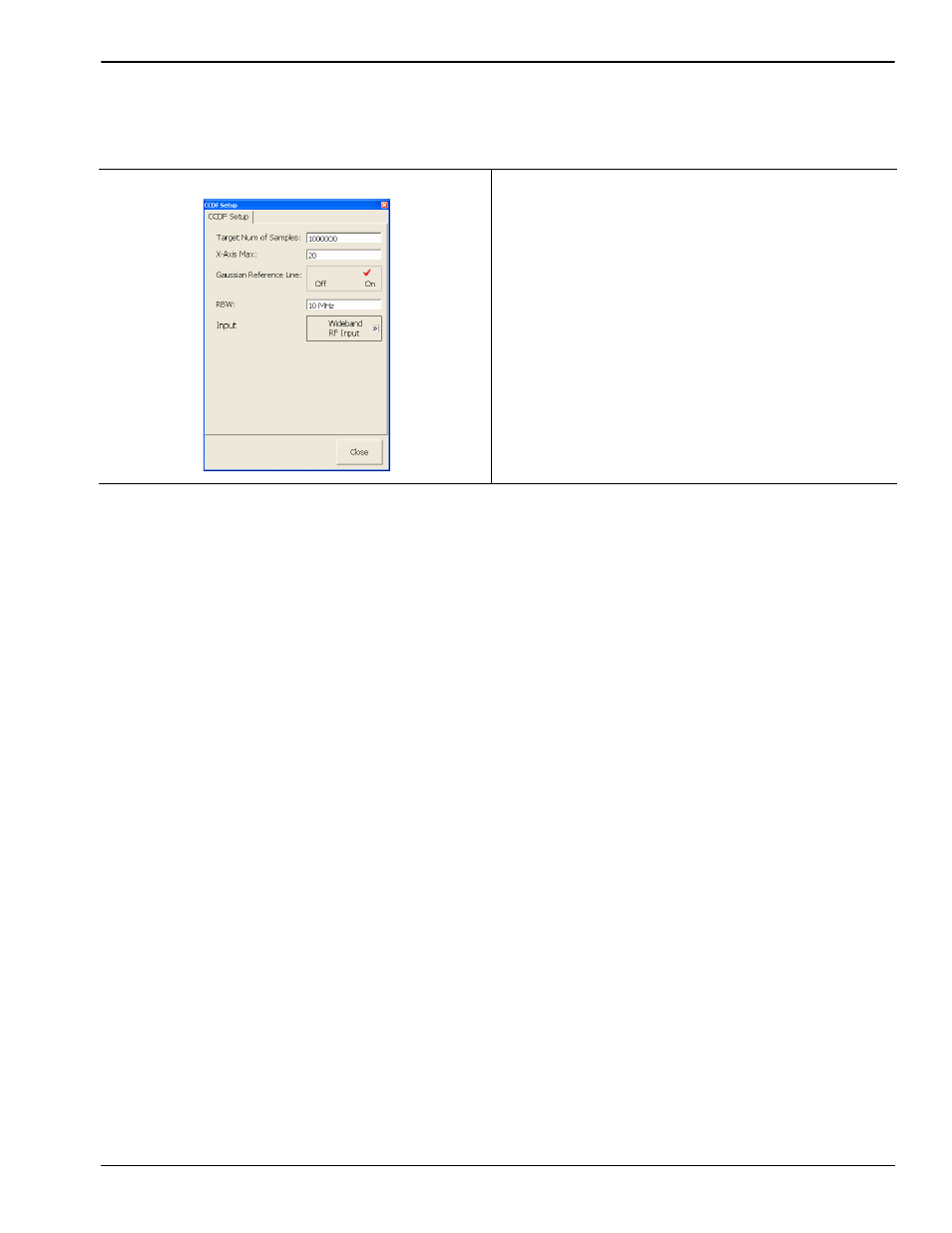

Figure 4-17. CCDF Setup Dialog
