Front Panel Menus Menu Archive
MS278XB OM 4-21

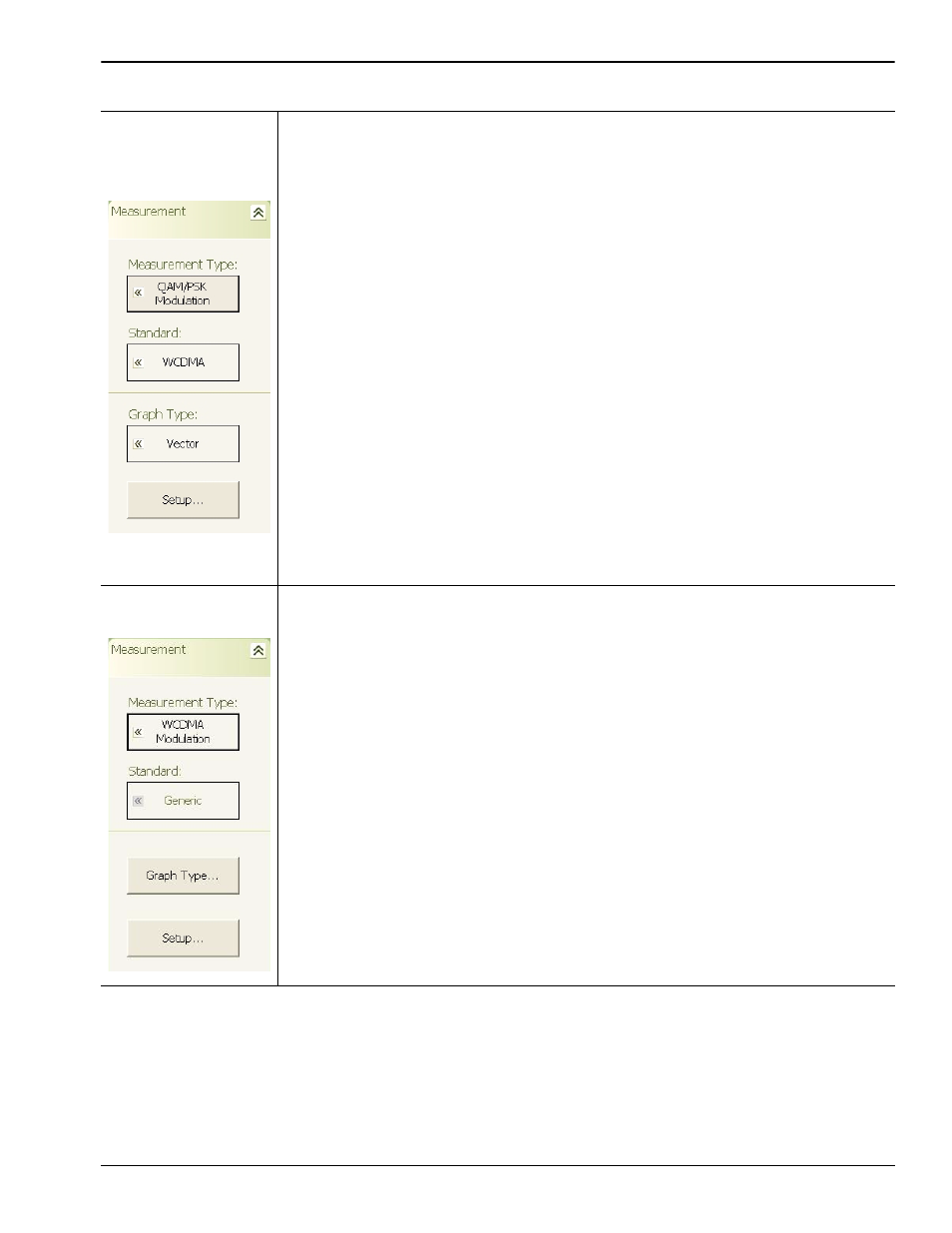

QAM/PSK
Measurement Type
QAM/PSK Measurement Type: To change the measurement type, press on the
Measurement Type button and select one of the following measurement types from the
fly-out menu:
Spectrum: Selects the spectrum analysis mode (see above)
RF: Selects the RF measurement mode (see above)
QAM/PSK: Selects the modulation measurement mode
WCDMA: Selects the modulation measurement mode (see below)
WiMAX: Launches the WiMAX Analysis application (requires Options 22 and 41)
Phase Noise: Launches the Phase Noise Measurement application (requires
Option 52)
Standard: This selection allows you to select a measurement standard that
automatically configures all of the measurement parameters. To select a measurement
standard, press on the Standard button and select the desired standard from the fly-out
menu.
Graph Types:
Vector
EVM/Time
Constellation
Power/Time
Summary
Eye(I)
Eye(Q)
Setup: Opens the VSA Modulation Parameters Setup Dialog on page 4-46.
WCDMA
Measurement Type
WCDMA Measurement Type: To change the measurement type, press on the
Measurement Type button and select one of the following measurement types from the
fly-out menu:
Spectrum: Selects the spectrum analysis mode (see above)
RF: Selects the RF measurement mode (see above)
QAM/PSK: Selects the modulation measurement mode (see above)
WCDMA: Selects the modulation measurement mode
WiMAX: Launches the WiMAX Analysis application (requires Options 22 and 41)
Phase Noise: Launches the Phase Noise Measurement application (requires
Option 52)
Standard: This selection allows you to select a measurement standard that
automatically configures all of the measurement parameters. To select a measurement
standard, press on the Standard button and select the desired standard from the fly-out
menu.
Graph Type...: Opens the WCDMA Graph Type Dialog on page 4-48.
Setup: Opens the WCDMA Setup Dialog on page 4-51.
Table 4-13. Measurement Menu
