Menu Archive Front Panel Menus
4-32 MS278XB OM

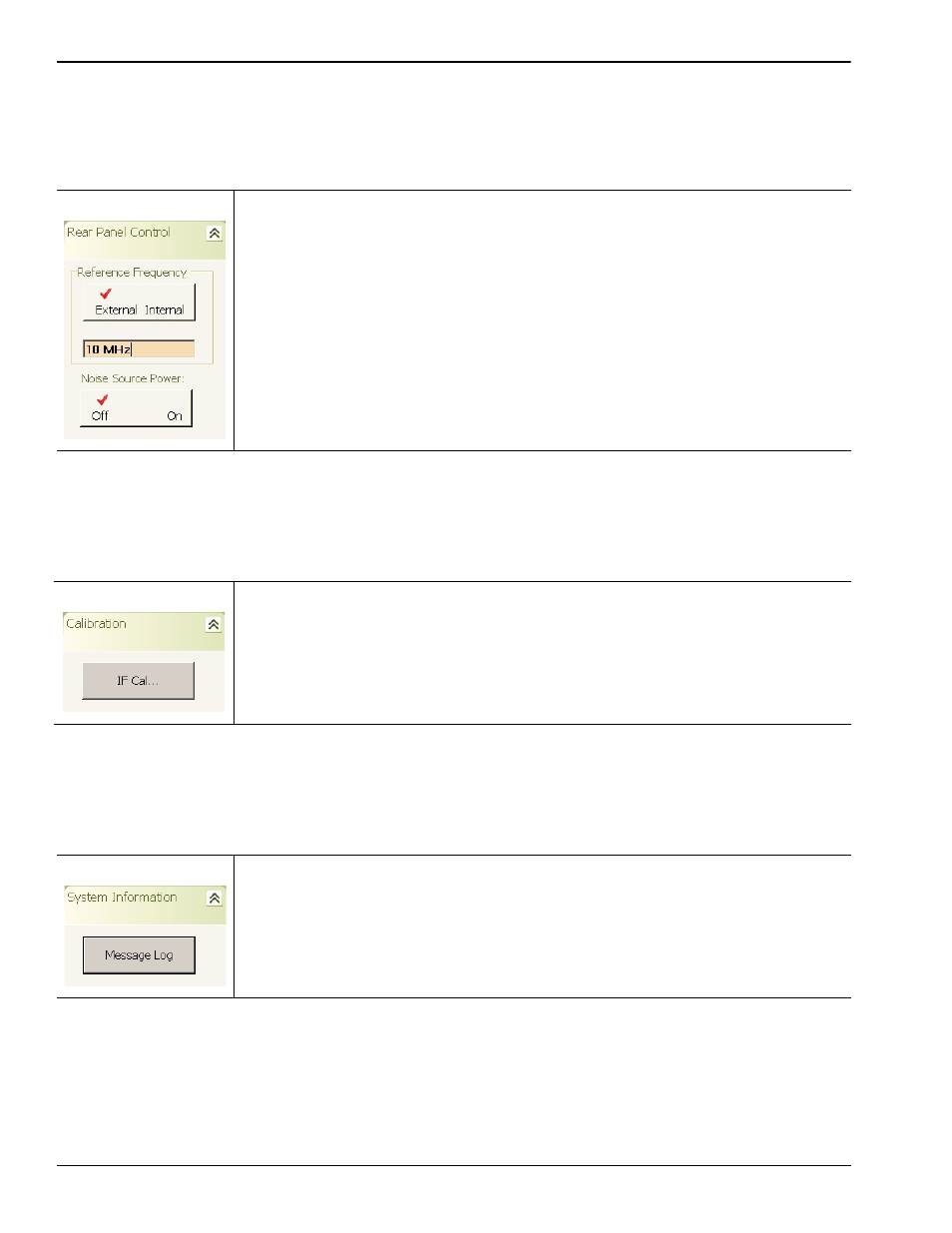

Rear Panel Control Menu
The Rear Panel Control menu lets you configure the rear panel input/output ports and toggle the noise
source power On or Off.
Calibration Menu
The Calibration menu lets you select and apply a calibration routine for specific hardware systems.
System Information Menu
The System Information menu lets you view the message log.
Table 4-19. Rear Panel Control Menu
Reference Frequency: To toggle between an internal or external reference input, press
on the External/Internal toggle button.
To set the external reference input frequency, press in the Reference Frequency field
and enter a value using the numeric keys. When a new value is entered, the terminator
fly-out will appear with the available units. Press on the desired units to terminate the
entry.
Noise Source Power: To toggle the noise source power on or off, press on the Noise
Source Power Off/On toggle button.
Table 4-20. Calibration Menu
IF Cal: The IF Cal button initiates an amplitude calibration of all possible IF paths to
improve the amplitude accuracy.
Table 4-21. Calibration Menu
Message Log: The Message Log button opens the System Messages dialog box.
