WiMAX Measurement
Type
WiMAX Measurement Type: To change the measurement type, press on the
Measurement Type button and select one of the following measurement types from the
fly-out menu:
Spectrum: Selects the spectrum analysis mode (see above)
RF: Selects the RF measurement mode (see above)
QAM/PSK: Selects the modulation measurement mode (see above)
WCDMA: Selects the modulation measurement mode
WiMAX: Launches the WiMAX Analysis application (requires Options 22 and 41)
Phase Noise: Launches the Phase Noise Measurement application (requires
Option 52)
The WiMAX measurement selection launches the WiMAX Analysis application in a
separate window. Refer to the Signature™ Option 41 SignalLab WiMAX Analysis
Software User Guide, part number: 10410-00276 for information on WiMAX
measurements using Signature.
Phase Noise
Measurement Type
Phase Noise Measurement Type: To change the measurement type, press on the
Measurement Type button and select one of the following measurement types from the
fly-out menu:
Spectrum: Selects the spectrum analysis mode (see above)
RF: Selects the RF measurement mode (see above)
QAM/PSK: Selects the modulation measurement mode (see above)
WCDMA: Selects the modulation measurement mode
WiMAX: Launches the WiMAX Analysis application (requires Options 22 and 41)
Phase Noise: Launches the Phase Noise Measurement application (requires
Option 52)
The Phase Noise measurement selection launches the Phase Noise Measurement
application in a separate window.
Note: All RF measurements apply only to the active trace.

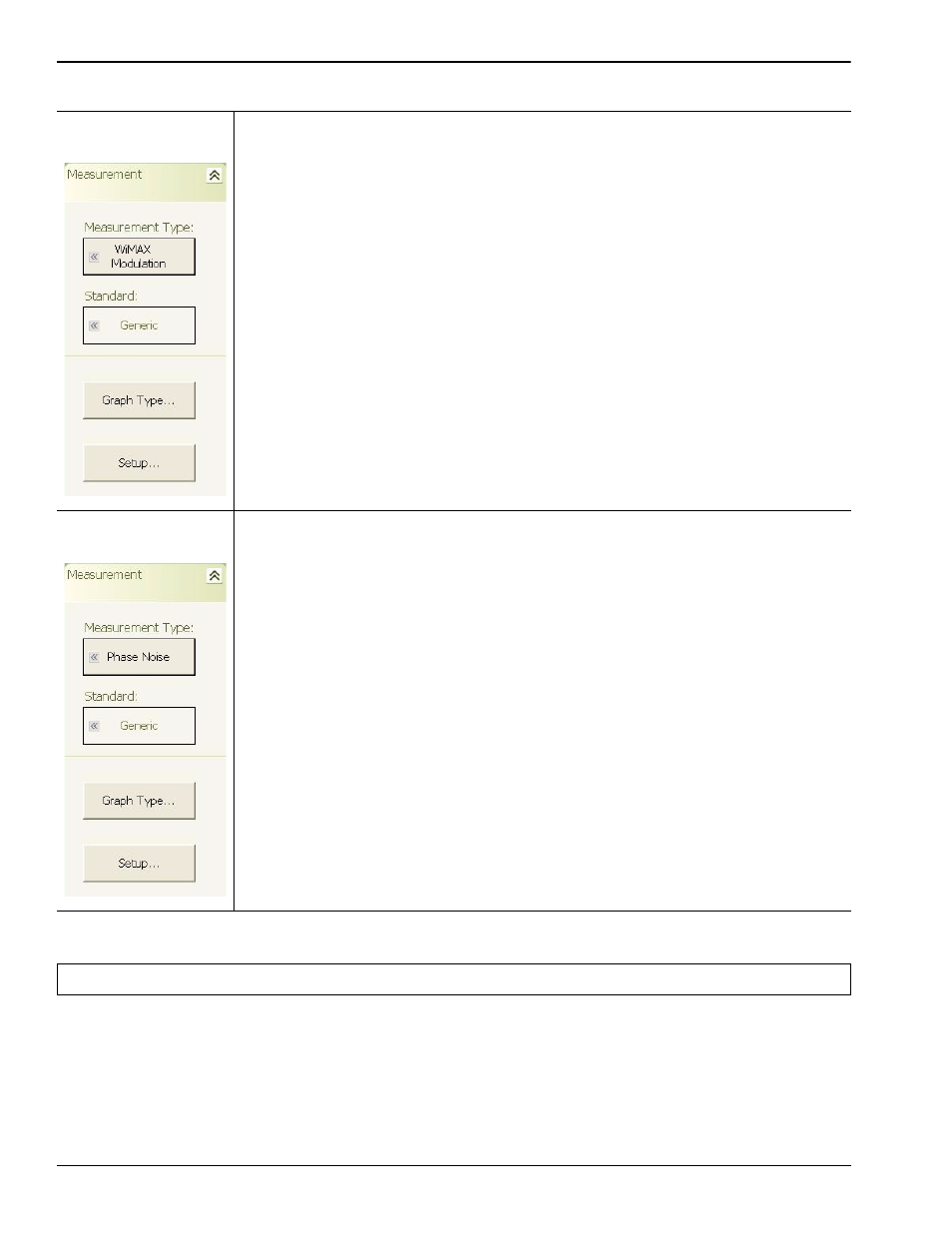

Table 4-13. Measurement Menu
