Graphical User Interface Overview
Instrument Overview
3-32
MS278XB OM

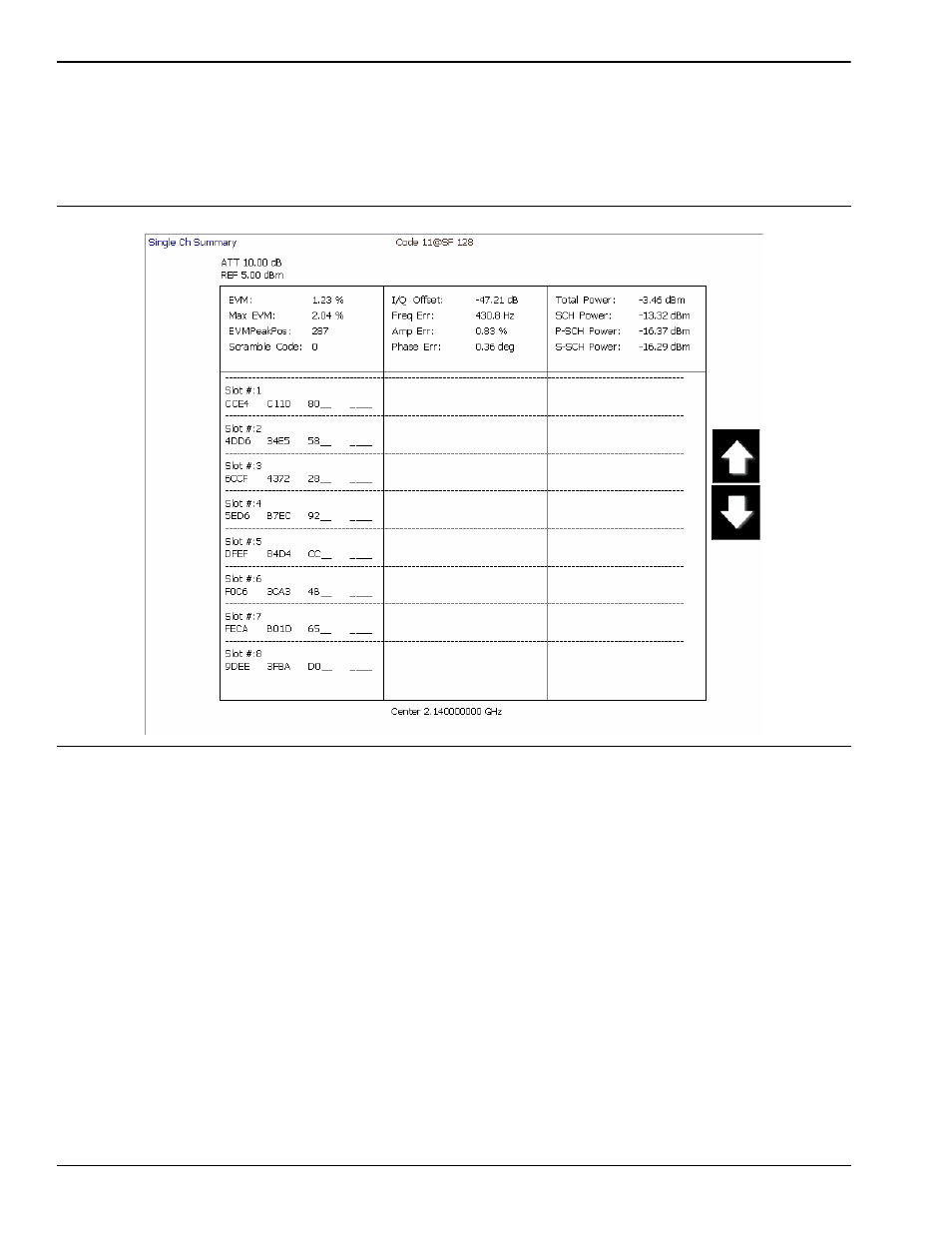

Figure 3-30 is a summary table showing the key modulation quality measurements and the bit stream for one
of the codes.
Note that the bit stream can be very long in some cases. If you have captured the full 8 slots and have a High-
Speed (HSDPA) signal, there can be many pages of the bit stream. The scroll buttons at the right facilitate
viewing all of this information.
Figure 3-30. Single Code Summary Table
