Modulation Measurements

Measurements

5-68

MS278XB OM

WCDMA Uplink Code Domain Single Channel

The Code Domain Single Channel measurement for Uplink shows the CDP for each code channel. There
are two graph type options for this measurement:

Summary
Code Power vs. Slot Overview

In both graphs, the CDP values are shown at the bottom of the display. The Summary, Code Domain
Power, and the Code Channel is selected in the WCDMA Graph Type dialog as shown in Figure 5-45. To
enter a code channel, first enter the channel identifier (ICh or QCh), then change the code number and
the SF value. Then press either Summary or Code Power vs. Slot Overview.

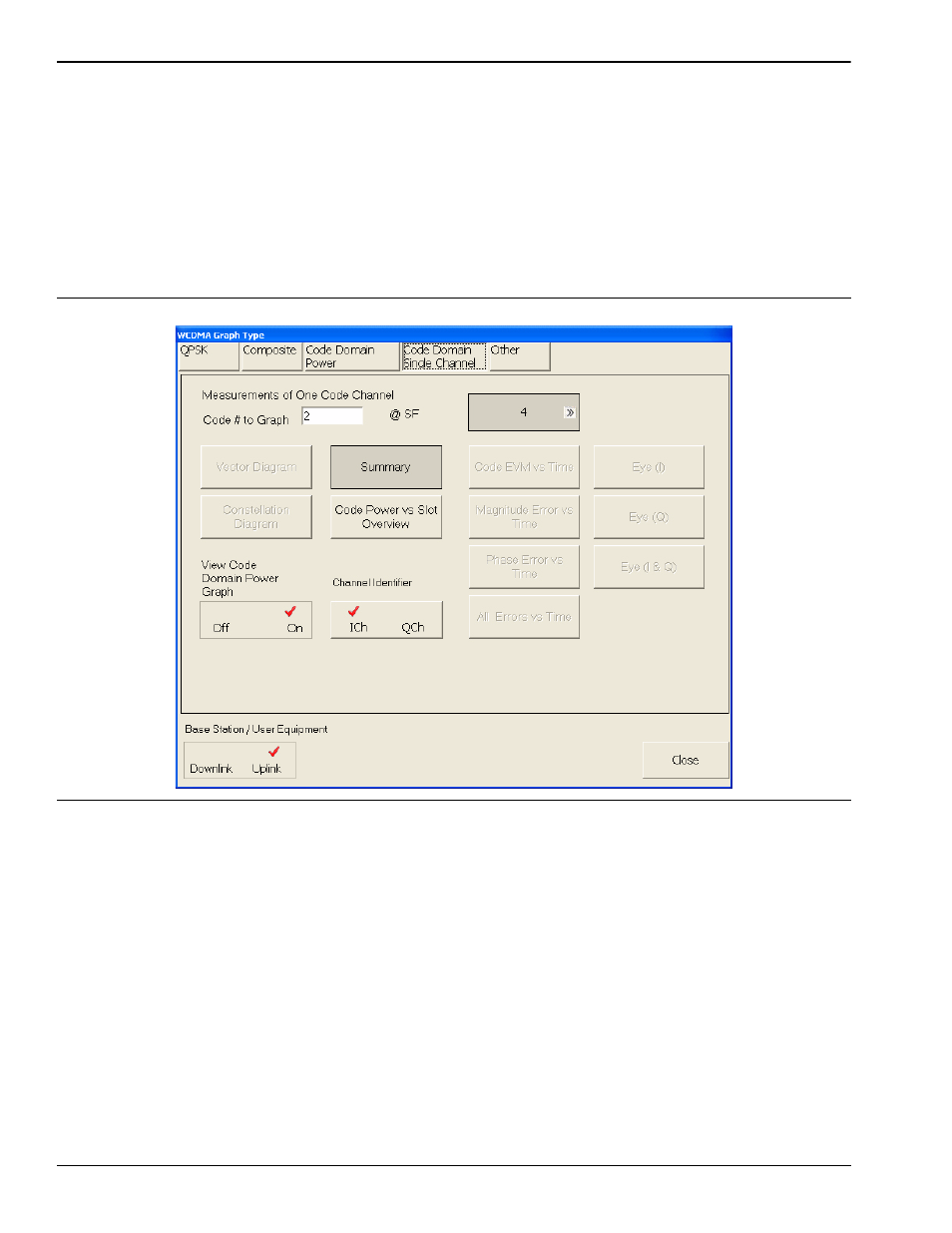

Figure 5-45. Code Domain Single Channel Setup Screen
