Front Panel Menus Parameter Entry and Measurement Setup Dialog Archive
MS278XB OM 4-49
Code Domain Power Tab
For Code Domain Power measurements, the following
graph types can be selected:
Code Domain Power
Code Domain Power with Zoom
Code Domain Error
Code Domain Error with Zoom
Summary Display
Base Station/User Equipment: Uplink or Downlink.
Code Domain Single Channel Tab
For Code Domain Single Channel measurements, select
the Code number to graph and a spreading factor of 4, 8,
16, 32, 64, 128, or 256.
The following graph types can be selected:
Vector Diagram
Constellation Diagram
View Code Domain Power Graph
Summary Display
Code Power vs. Slot Overview
Code EVM vs. Time
Magnitude Error vs. Time
Phase Error vs. Time
All Errors vs. Time
Eye (I)
Eye (Q)
Eye (I & Q)
I or Q Channel Identifier (Uplink only)
Base Station/User Equipment: Uplink or Downlink.

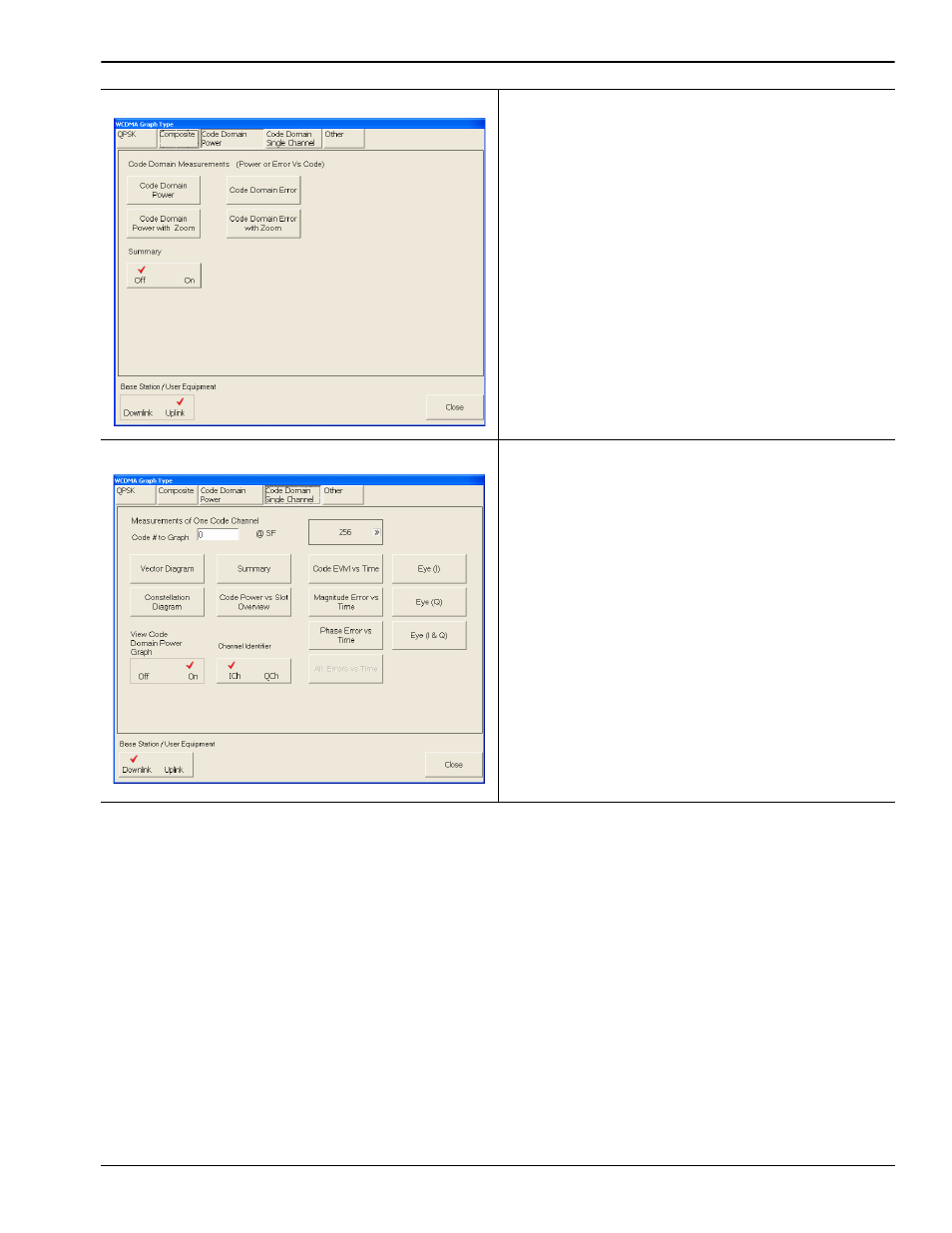

Figure 4-20. WCDMA Graph Type Dialog
