Menu: tftp download from a server to primary flash – IronPort Systems 4108GL User Manual
Page 446
A-4
File Transfers
Downloading an Operating System (OS)
Fil
e
T
ran
sf
e
rs
Menu: TFTP Download from a Server to Primary Flash
Note that the menu interface accesses only the primary flash.
1.
In the console Main Menu, select
Download OS to display this screen:

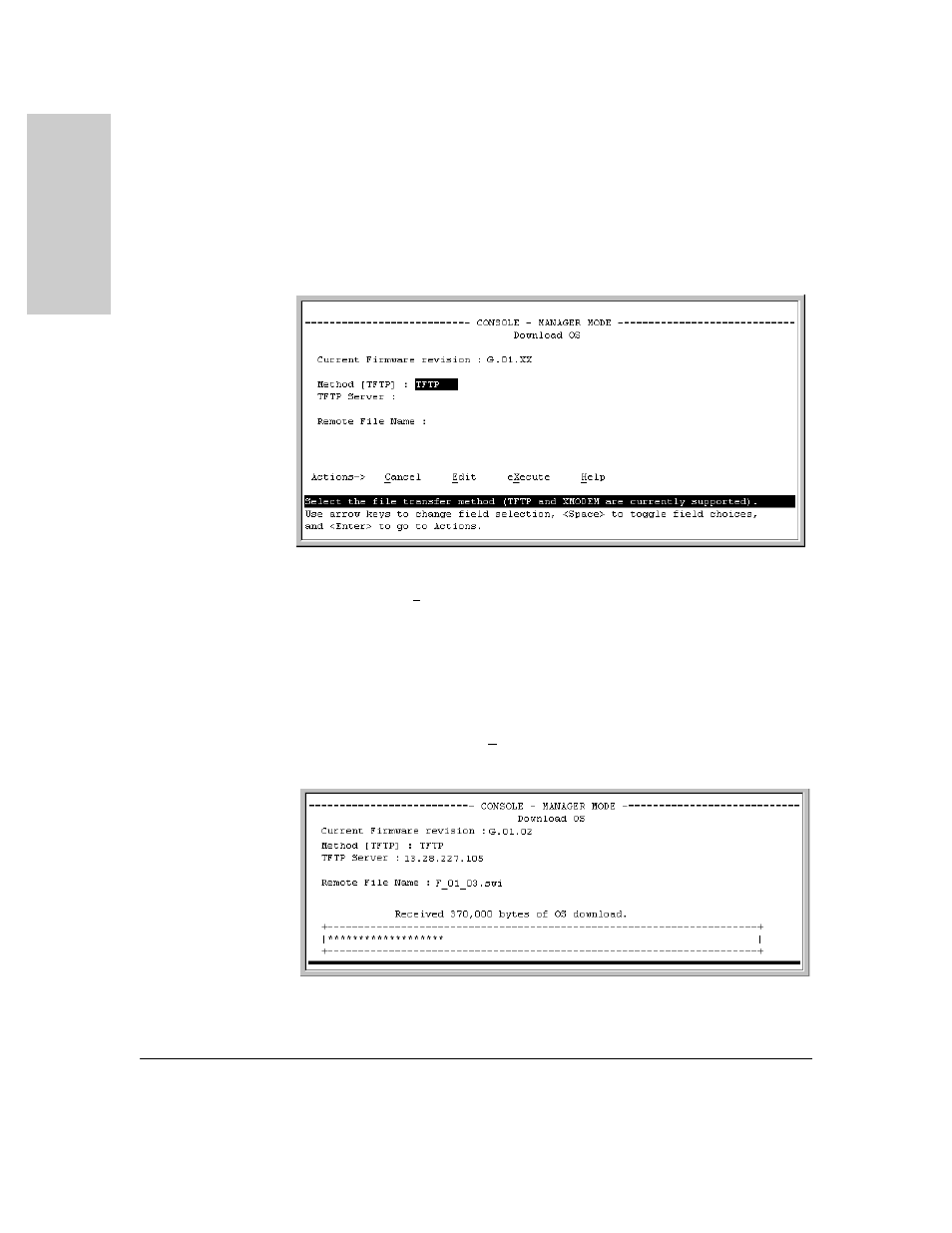

Figure A-1.
Example of the Download OS Screen (Default Values)
2.
Press
[E] (for Edit).
3.
Ensure that the
Method field is set to TFTP (the default).
4.
In the
TFTP Server field, type in the IP address of the TFTP server in which
the OS file has been stored.
5.
In the
Remote File Name field, type the name of the OS file. If you are
using a UNIX system, remember that the filename is case-sensitive.
6.
Press
[Enter], then [X] (for eXecute) to begin the OS download. The following
screen then appears:
Figure A-2.
Example of the Download OS Screen During a Download
