12. Signal connection (3) BD481 circuit
------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------
12 - 7
12.2 External Output Signal (BD430, BD431)
12.2.1 Output Circuit
All output circuit are as followings.

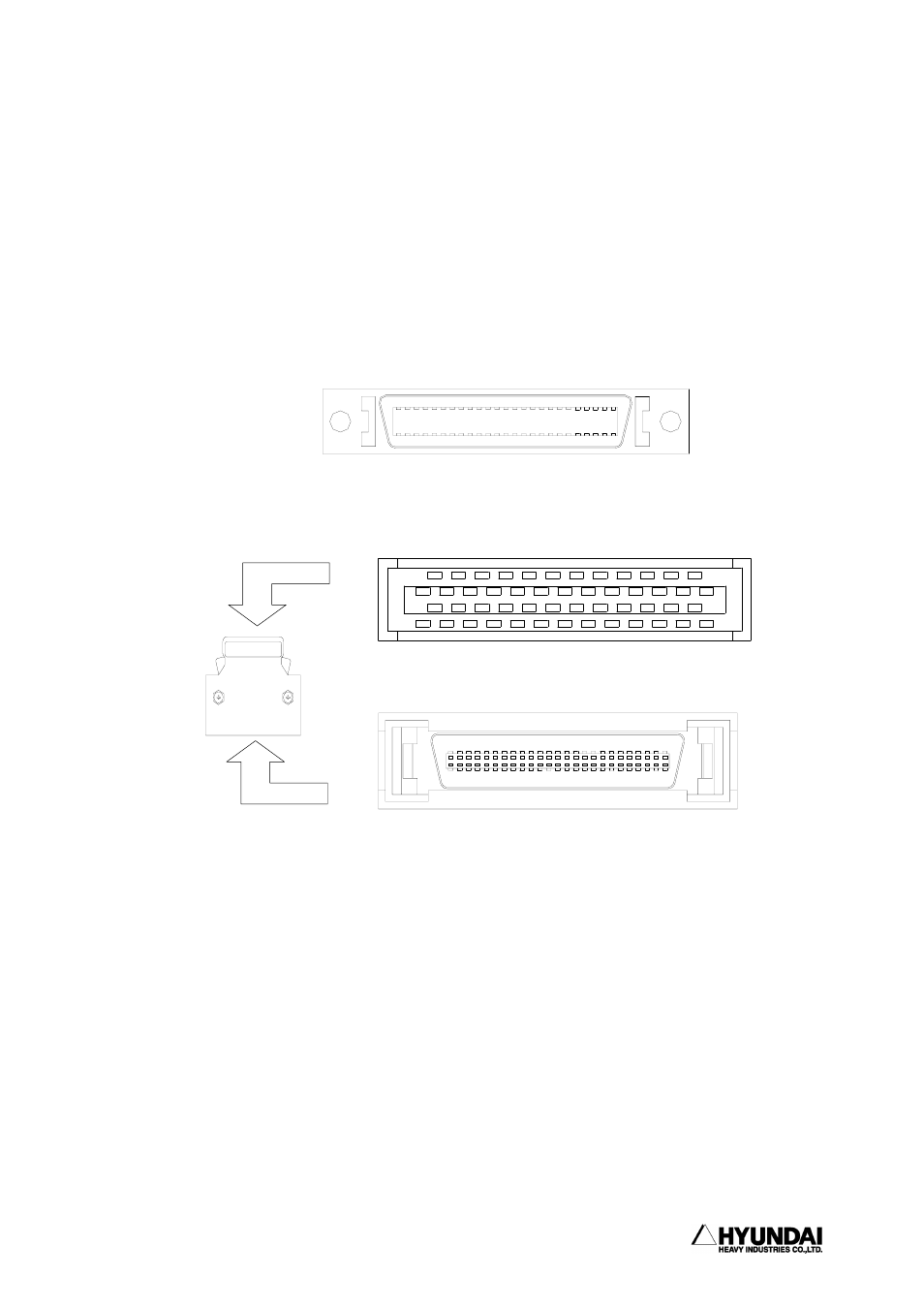

- Connector Specification
Board-side : 3M MDR 10250-52A2JL
19
25
18
21
22
23
24
20
15
16
17
13 12
14
5
8
9
11 10
6
7
2
3
4
1
26
27
28
29
30
31
32
34
35
33
36
46
37
38
39
40
41
42
43
44
45
48
49
50
47
Plug-side : 3M MDR 10150-3000VE (HOOD;10350-52F0-008)
- Connection Specification
* BD430
Output port device : PNP transistor open collector
Output rating = 125mA(Continuous load current), 24VDC
Common (-) input voltage = 0VDC
* BD431
Output port device : MOS relay
Output rating = 125mA(Continuous load current), 24VDC
Common (+) input voltage = 24VDC
Common (-) input voltage = 0VDC
