Rear panel (connect your equipment), Getting ready foot sw jack, Hh ctrl jack – Roland TM-6 Pro Drum Trigger Module User Manual
Page 8: Trigger in 1–6 jacks, Phones jack, Master out jack, Direct out 1–4 jacks, Dc in jack, Power] switch

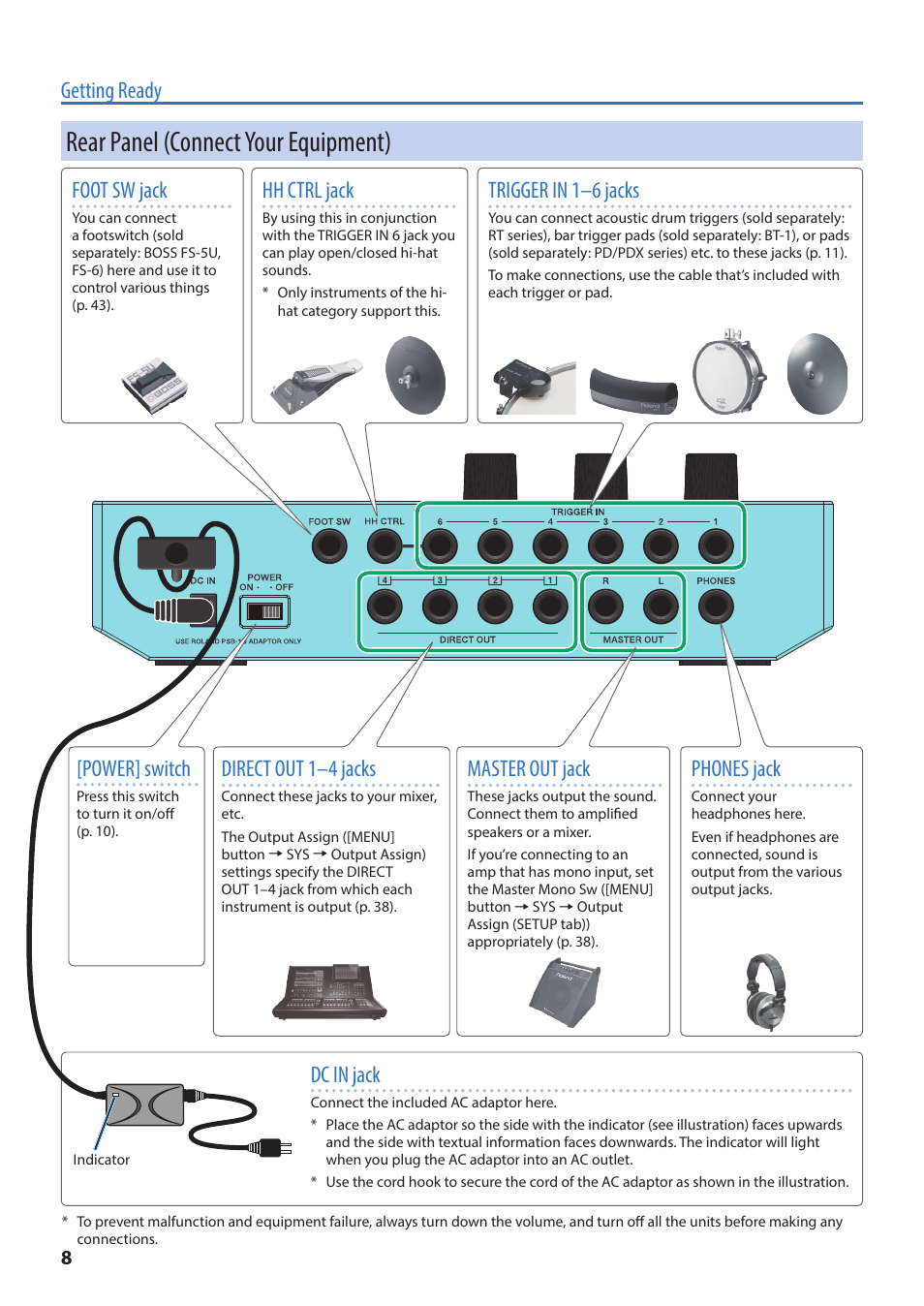

![Rear panel (connect your equipment), Getting ready foot sw jack, Hh ctrl jack | Trigger in 1–6 jacks, Phones jack, Master out jack, Direct out 1–4 jacks, Dc in jack, Power] switch | Roland TM-6 Pro Drum Trigger Module User Manual | Page 8 / 49](/screens/867775/8.png)
