Page 80 Operating Instructions Powador XP500/550-OD-TL
P a r a m e t e r s
8.7.4 Conceptual Relation between Output Power and Temperature

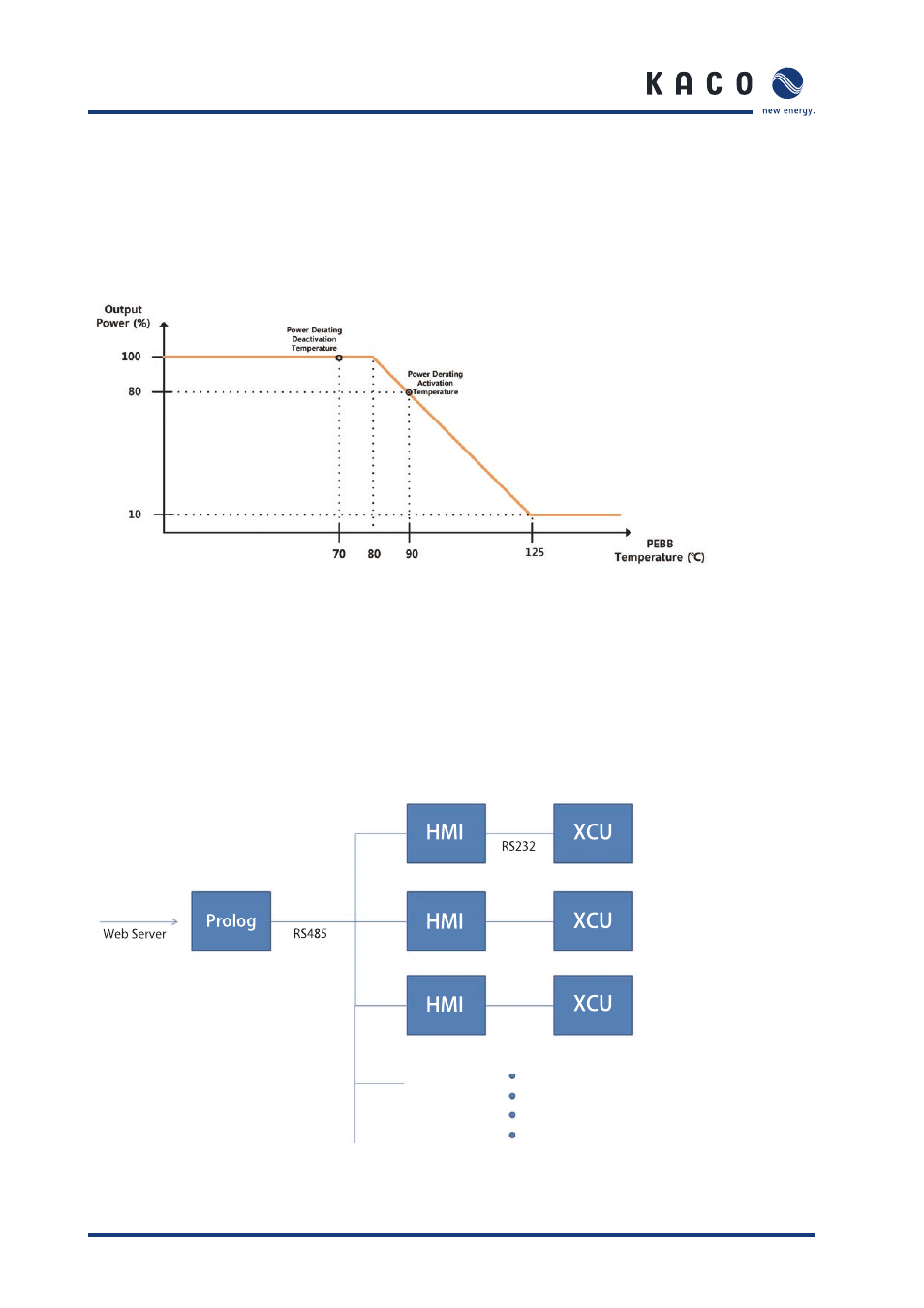

Below graph represents conceptual relation between inverter output power and heat sink temperature. The
output power is reduced in proportion to heat sink temperature but keep in mind that the power derating is
activated at 90°C and deactivated at 70°C (The activation/deactivation temperature can be tunable by param-
eter).
Figure 52: Relation between output power and temperature
8.7.5 COSPHI Control
COSPHI Control function is for controlling active and reactive power which is infused from XP inverter to the
grid with Prolog, HMI, and XCU at long distance.
Figure 53: COSPHI Control composition
