6 interface circuit, 1) interface for reference input circuits, A) sgdj-s analog input circuit – Yaskawa Sigma II Series DC Power Input SGMAJ User Manual

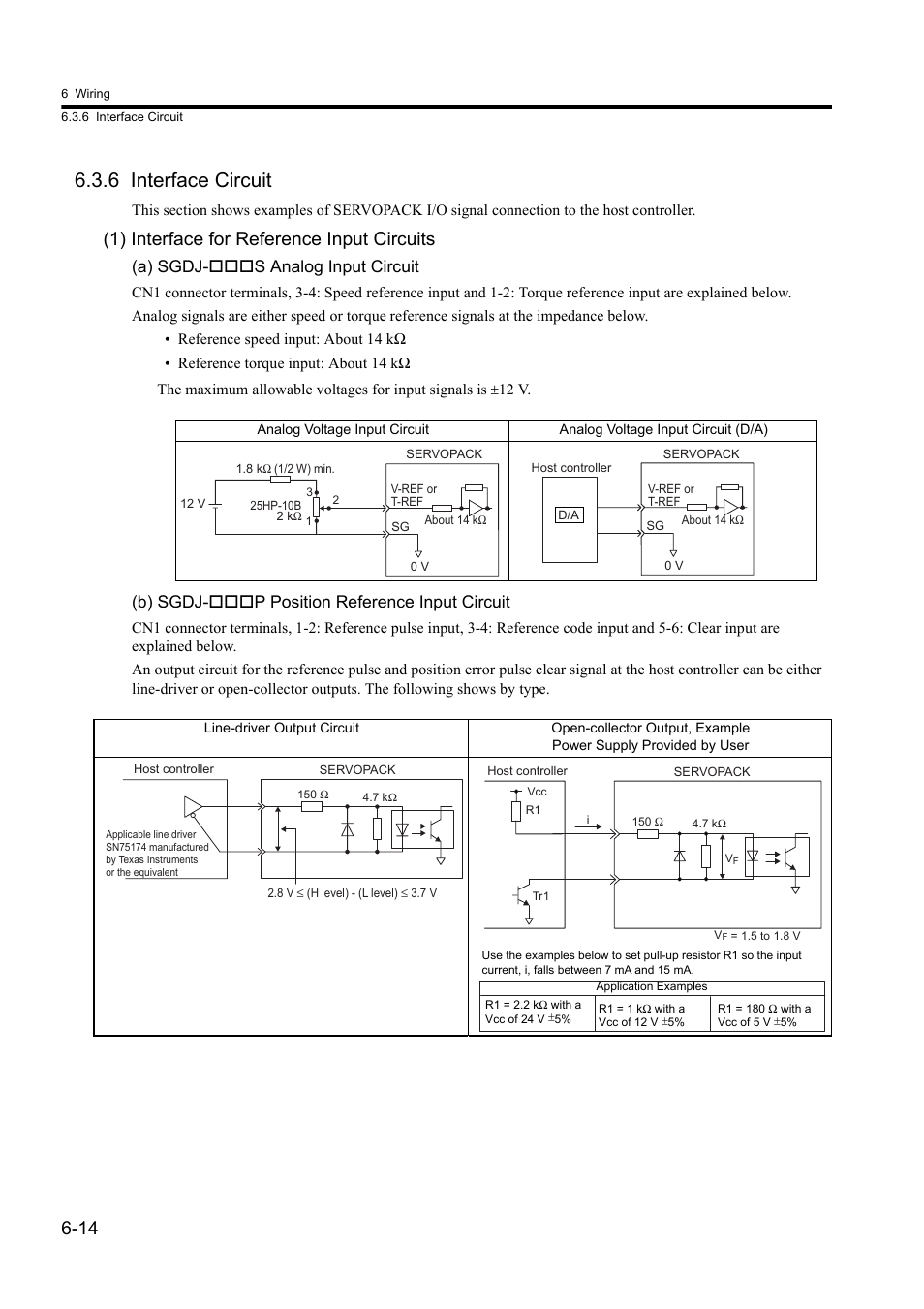

Page 133: B) sgdj-p position reference input circuit
