HEIDENHAIN iTNC 530 77
2.2 V
isual displa
y unit and k
e
yboar
d 2.2 Visual display unit and
keyboard

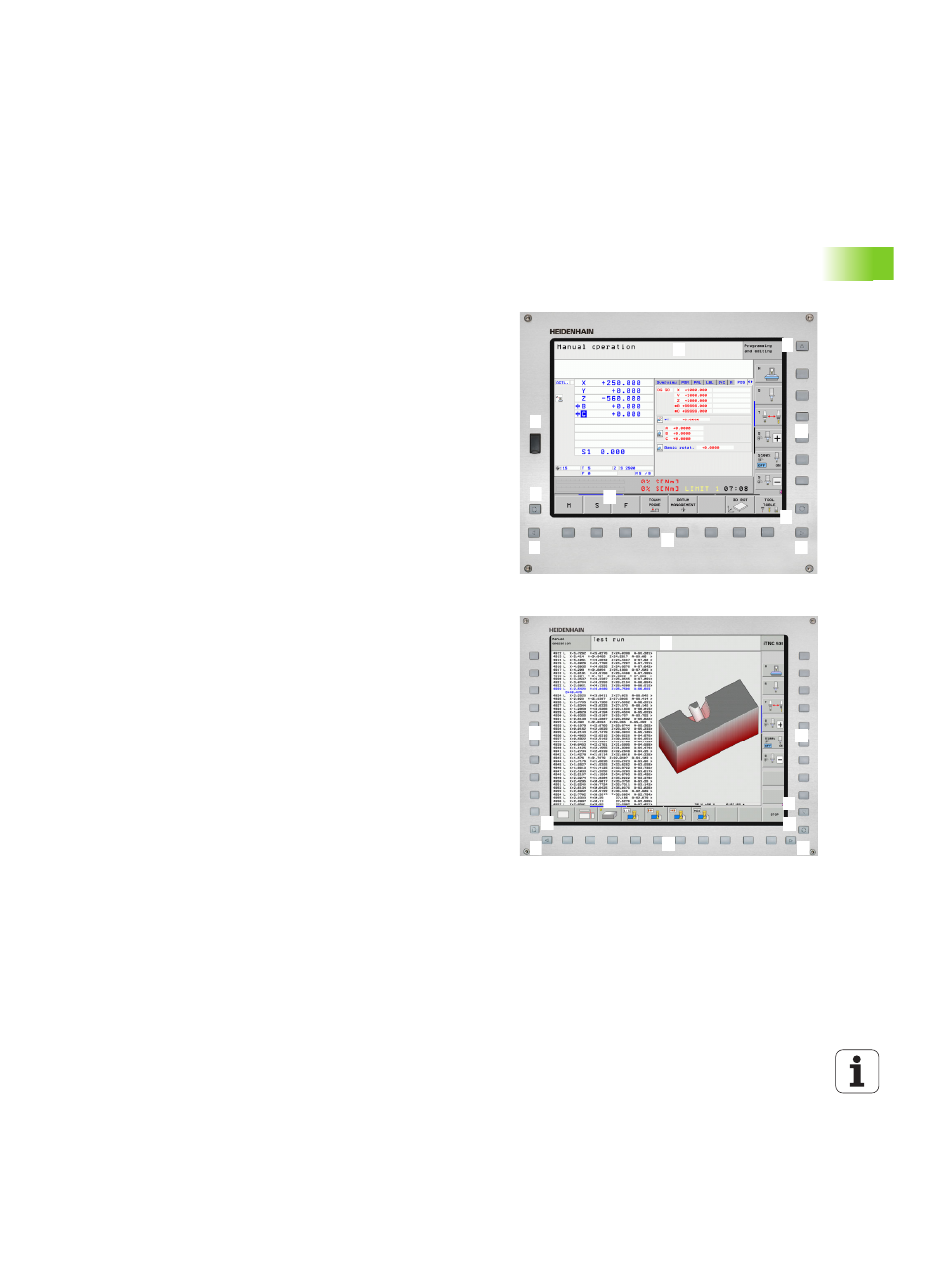

Visual display unit
The TNC is shipped with a 15-inch color flat-panel screen. A 19-inch
color flat-panel screen is also available as an alternative.
1 3
1 1
4 4
5
1 6
7
8
2
1 9
1 3
4 4
5 1 6
7
8 2
1 1
7
1 Header
When the TNC is on, the selected operating modes are shown in
the screen header: the machining mode at the left and the
programming mode at right. The currently active operating mode
is displayed in the larger box, where the dialog prompts and TNC
messages also appear (unless the TNC is showing only graphics).
2 Soft keys
In the footer the TNC indicates additional functions in a soft-key
row. You can select these functions by pressing the keys
immediately below them. The lines immediately above the soft-
key row indicate the number of soft-key rows that can be called
with the black arrow keys to the right and left. The bar
representing the active soft-key row is highlighted.
The15-inch screen has 8 soft keys, the 19-inch screen has 10 soft
keys.
3 Soft-key selection keys
4 Shifts between soft-key rows
5 Sets the screen layout
6 Shift key for switchover between machining and programming
modes
7 Soft-key selection keys for machine tool builder soft keys
The15-inch screen has 6 soft keys, the 19-inch screen has 18 soft
keys.
8 Switches soft-key rows for machine tool builders
