470 Programming: Special functions
1
1
.15 F
reely definable tables
Editing the table format

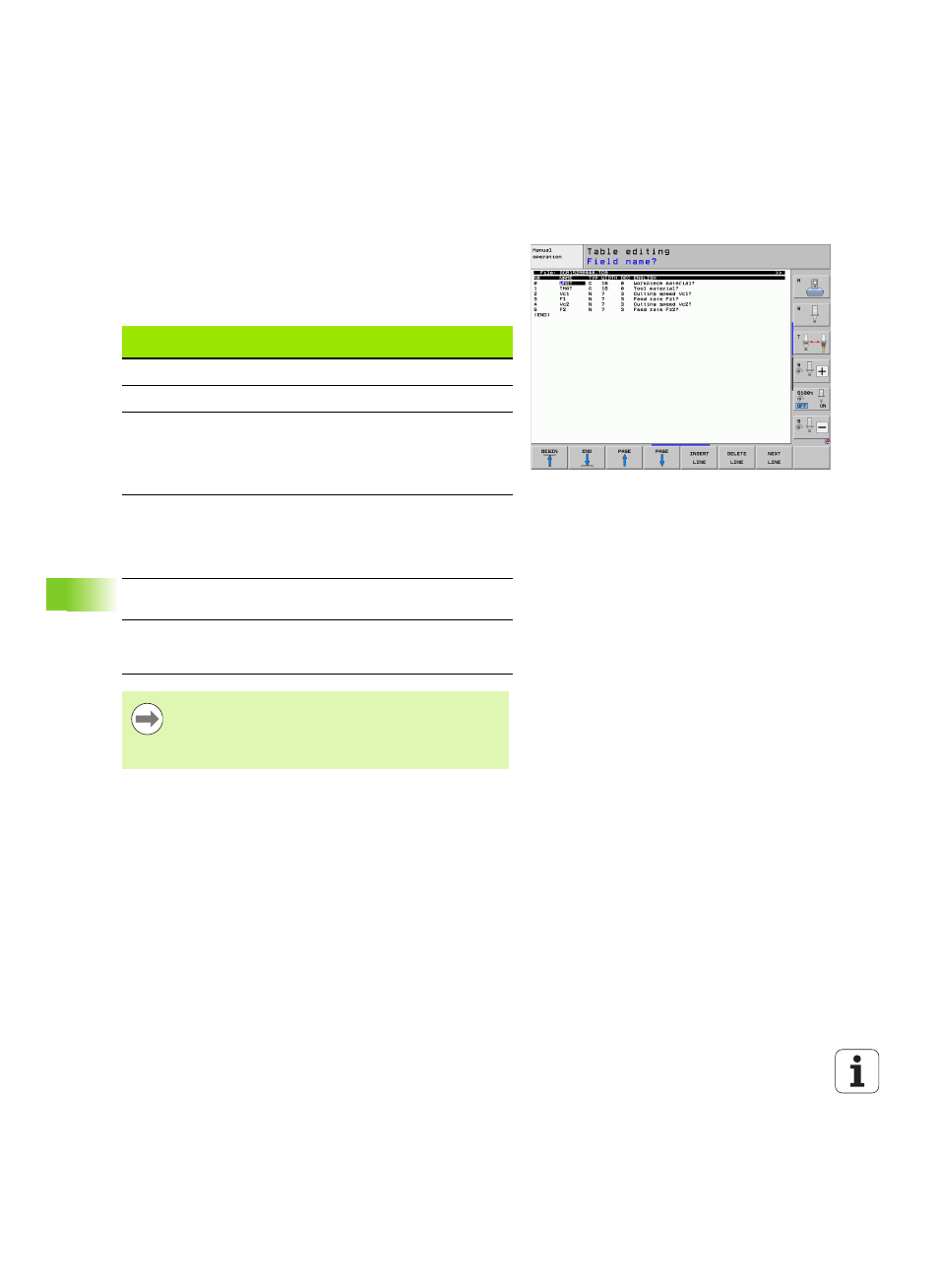

 Press the EDIT FORMAT soft key (2nd soft-key level). The TNC
opens the editing window, in which the table structure is shown
rotated by 90°. In other words, a line in the editing window defines
a column in the associated table. The meanings of the structure
commands (header entries) are shown in the following table.
Exiting the structure editor
 Press the END key. The TNC changes data that was already in the
table into the new format. Elements that the TNC could not convert
into the new structure are indicated with a hash mark # (e.g., if you
have narrowed the column width).
Structure
command
Meaning
NR Column number
NAME Column name
TYPE N : Numerical input
C : Alphanumeric input
L : Input value in long format
X : Permanently defined format for date and time:
hh:mm:ss dd.mm.yyyy
WIDTH Width of column. For type N it includes the
algebraic sign, decimal point and decimal places.
For type X you can decide through the column
width whether the TNC saves the complete date
or only the time
DEC Number of decimal places (max. 4, effective
only for type N)
ENGLISH
to
HUNGARIA Language-sensitive dialogs (max. 32 characters)
The TNC can process up to 200 characters per row, and
up to 30 columns.
If you insert a column into an existing table, the TNC does
not automatically shift the values already entered.
