11
NV9000 Web Suite
User’s Guide

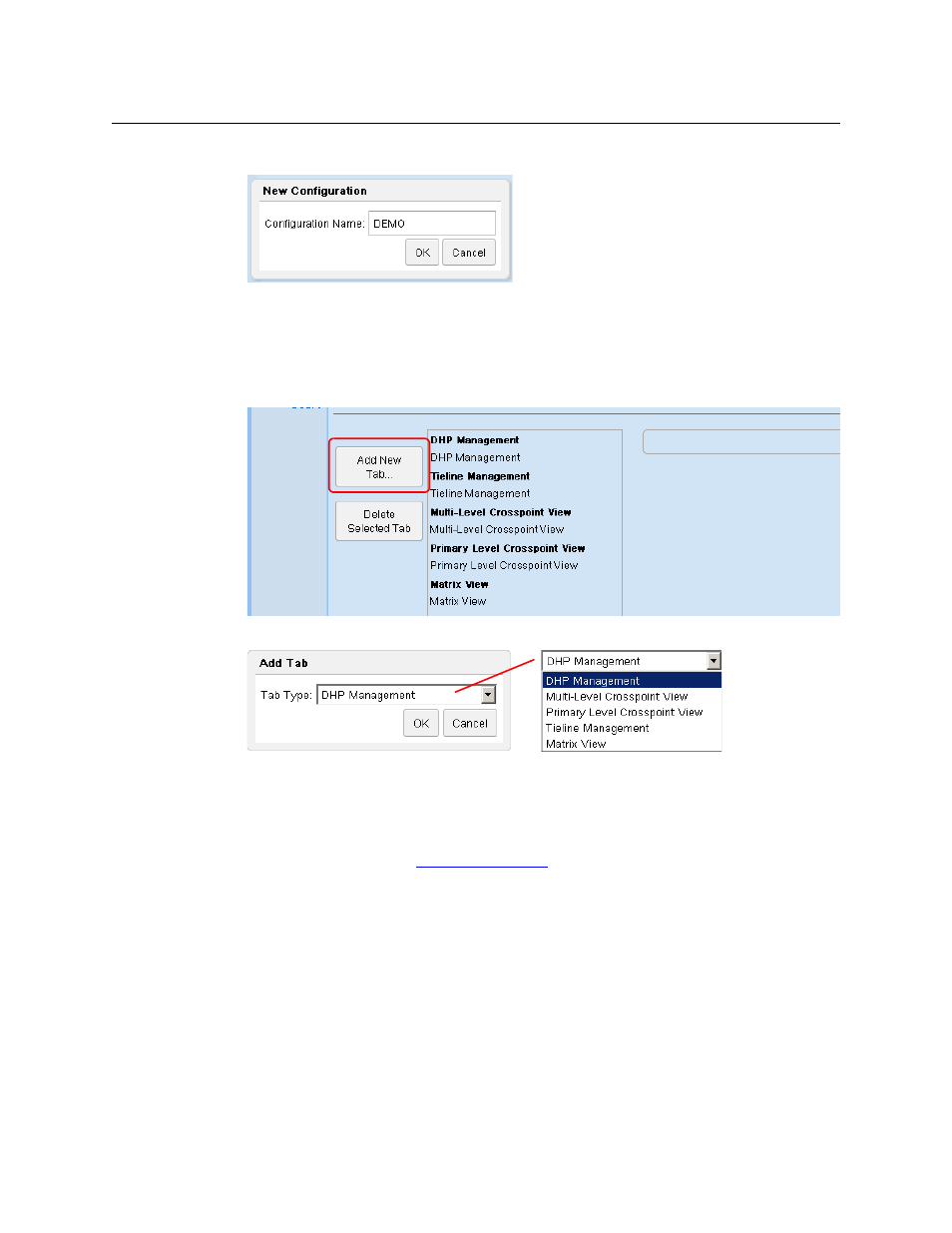

2 Click the ‘New . . .’ button. A ‘New Configuration’ dialog appears:
3 Enter a configuration name. Click ‘OK’.
4 At this point, there is a new configuration. The configuration is empty. It defines no tabbed
pages.
5 You can add tabbed pages, of 5 types, to this configuration and you can add as many of each
type as you want. To add a tabbed page, click ‘Add New Tab . . .’ in the middle of the page:
A dialog appears in which you can select a tab type:
Choose a tab type and click ‘OK’.
The new tab and any others you create appear in a list in the order you create them. (If you
make a mistake, click on the tab’s list entry and then click the ‘Delete Tab’ button.
6 You could edit the configuration you created, but it is not essential to do so at this time. If
you wish to do so, refer to Configuration Pages on page 19 for more information.
7 Finally, click the ‘Save’button.
