74 Rev 1.0 • 29 Nov 11
5. Menus
Program Output Audio Menu
“Phase Inverts”

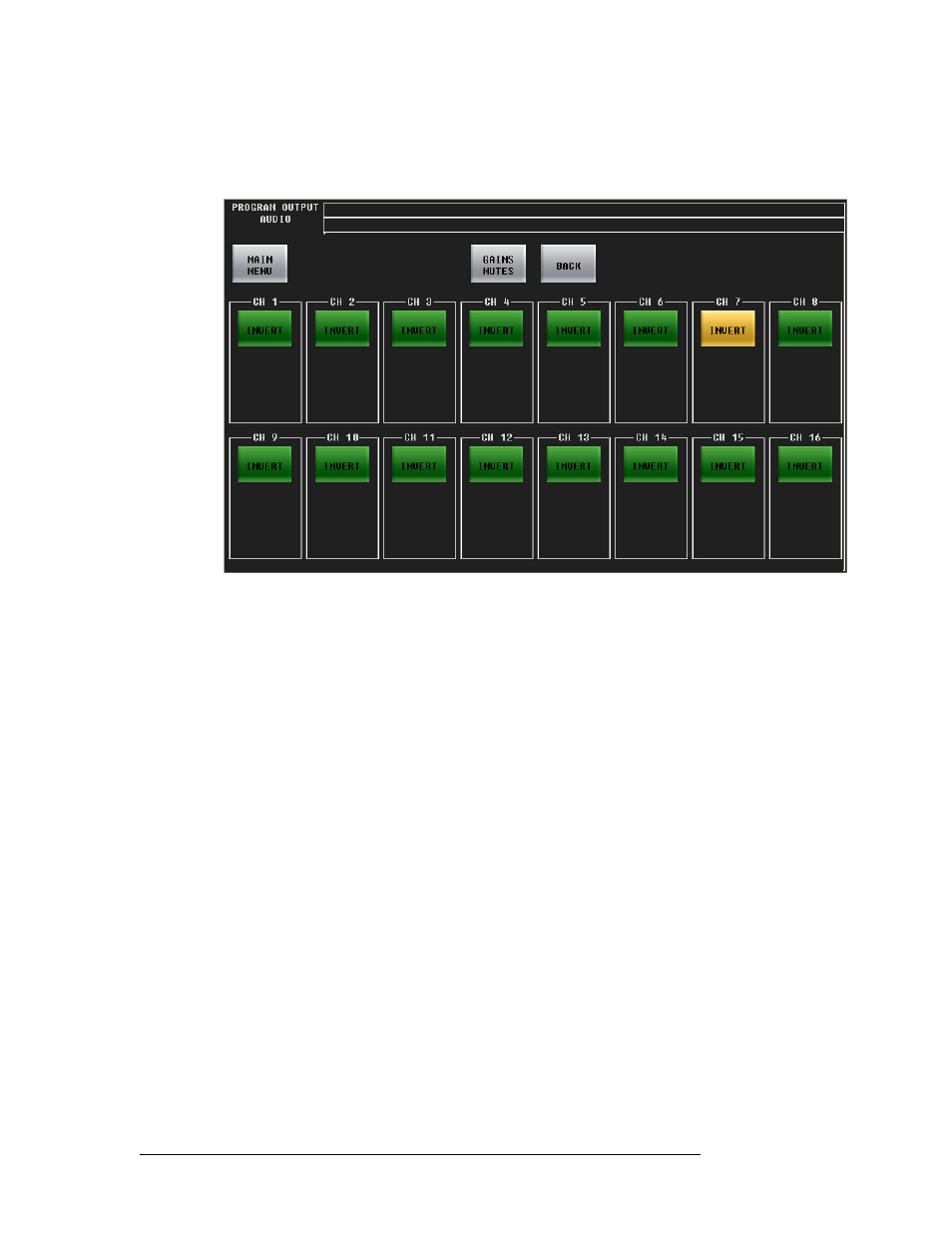

This is the ‘Phase Inverts’ sub-menu:
S The term phase is a misnomer. Phase has nothing to do with signal inversion.
When the audio channel is inverted, its PCM values are multiplied by –1.
Pressing an invert button either inverts or un-inverts the audio samples. When the button is amber,
the samples are inverted. When the button is green, the samples are normal.
Press the ‘Gains Mutes’ button to go to the ‘Gains and Mutes’ sub-menu.
Press the ‘Back’ button to return to the ‘Program Output Audio’ menu.
Press the ‘Main menu’ button to return to the main menu.
