6. Operation
Shuffling Audio Channels
To initiate a shuffle, press one of the arrows. A red reticle (or crosshair or cursor) appears, which
you can position with the arrow buttons.

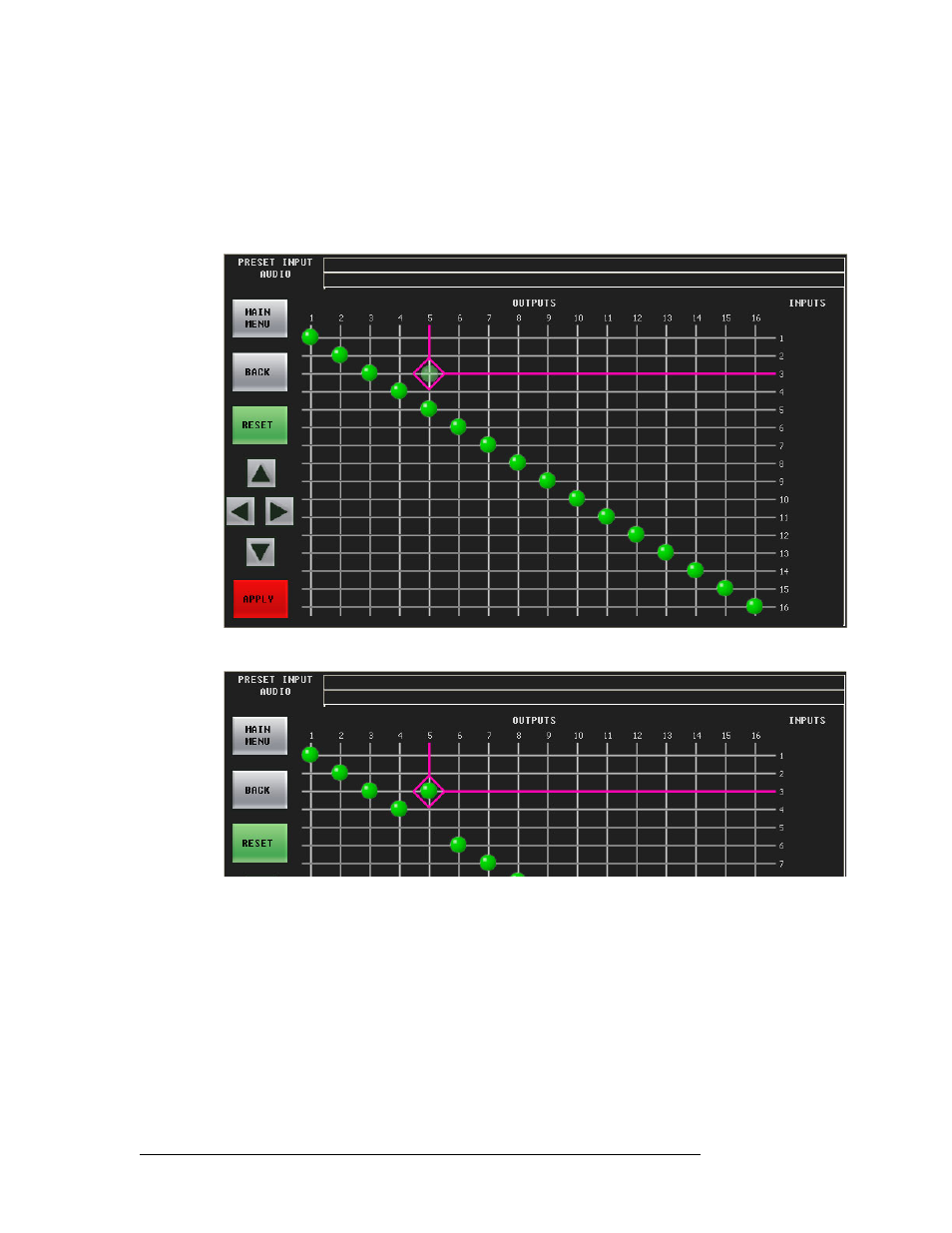

Position the reticle on the crosspoint you want. In this illustration, the reticle is on the column for
output 5 and will change the input for that column from 5 to 3. A faint circle appears at the new
location:
Now press the red ‘Apply’ button:
The faint circle turns solid.
You can now move the reticle to select another crosspoint to change.
It is possible to route a single input to multiple outputs. It is not possible to route multiple inputs to
a single output.
Press ‘Reset’ to restore the default channel configuration (which is diagonal).
Press the ‘Back’ button to return to the parent-level menu.
Press the ‘Main Menu’ button to return to the main menu.
